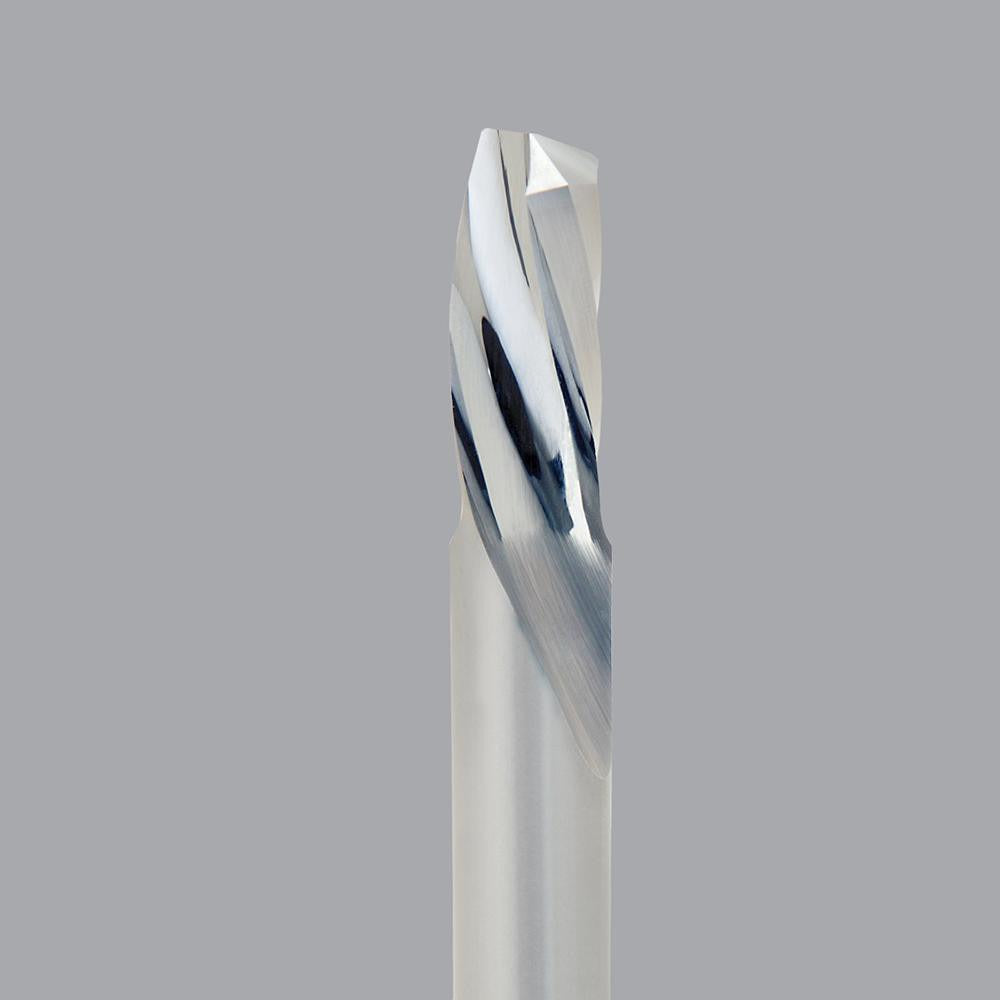

Onsrud 64-026 Downcut Spiral Router Bit 0.25in Solid Carbide

Product Description

The ONSRUD 64-026 is a single-edge downcut spiral router bit machined from solid carbide. It carries a 0.25-inch cutter diameter, a 1.25-inch length of cut, and a 3-inch overall length with a 0.25-inch shank diameter and a 1.75-inch shank length. The downcut flute geometry directs chips toward the workpiece surface rather than pulling them upward, which suppresses tearout and produces a cleaner top edge on laminates, veneers, and composites. This bit is intended for CNC router operators and skilled manual-router users working in production and fabrication environments.

The 64-026 is suited for routing aluminum, plastics, solid surfaces, and wood. The downcut action is particularly valuable in applications where surface finish quality on the top face is critical, such as cutting cabinet components, sign blanks, acrylic panels, and aluminum composite material. The 21-degree right-hand helix and single-edge design reduce cutting forces and heat buildup, making this bit a practical choice for thin-material and finish-pass work across a range of substrates.

Key Features

• Downcut flute geometry minimizes tearout on the top face of laminates, veneers, and composites
• Solid carbide construction provides rigidity and wear resistance across aluminum, plastics, solid surfaces, and wood
• Single-edge router style reduces cutting forces and thermal load during operation
• 21-degree right-hand helix angle balances chip evacuation with surface finish quality
• Uncoated finish allows direct inspection of cutting-edge condition
• 1.75-inch shank length provides secure tool holding in standard collets

Compatibility

Part of the ONSRUD 64-000 series. Designed for use in CNC routers and handheld routers accepting a 0.25-inch collet or chuck. Compatible with aluminum, plastics, solid surfaces, and wood as stated by the manufacturer.

Installation Notes

Installation and tool changes should be performed by a qualified CNC operator or machinist with the spindle fully de-energized and locked out per OSHA lockout/tagout procedures. Seat the shank fully into the collet to the recommended engagement depth before torquing the collet nut. Inspect the cutting edges for chipping or wear before each use, as carbide damage is not always visible without magnification. Downcut bits generate downward chip pressure, so workpiece hold-down and fixturing must be adequate to prevent part movement during the cut.
