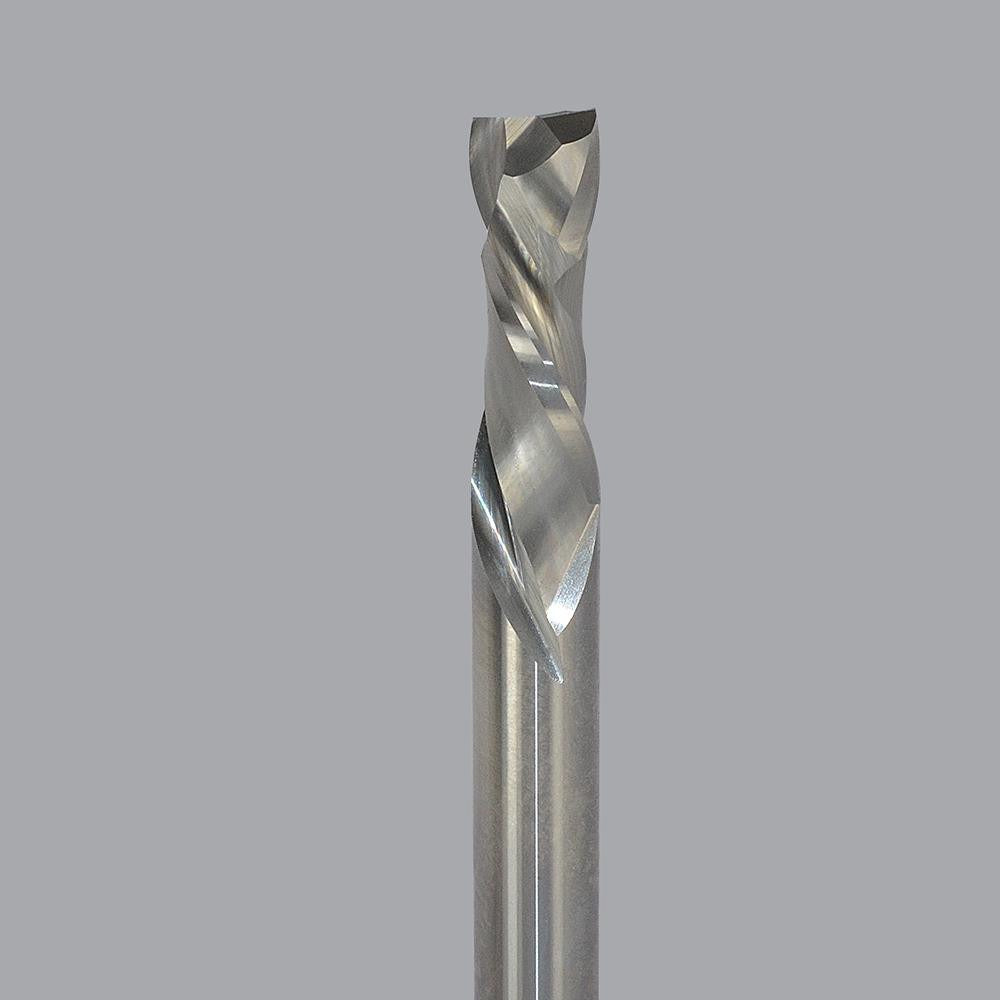

Onsrud 60-124MW Compression Spiral Router Bit 3/8 in

Product Description

The ONSRUD 60-124MW is a solid carbide compression spiral router bit designed for clean, chip-free cuts in double sided laminated and veneered panel materials. The compression flute geometry combines an upcut base spiral with a downcut top spiral, applying opposing forces to the workpiece face and back simultaneously. This action suppresses tearout and delamination on both surfaces in a single pass. With a 0.375 inch cutter diameter, a 1.125 inch length of cut, and a 30-degree helix angle, this bit suits high-feed routing applications where surface quality on both faces is critical. Woodworking shops, cabinet fabricators, and millwork operations are the primary users.

This bit is built for routing double sided laminated sheet goods, melamine, HPL-faced panels, and veneered substrates where both the top and bottom face must remain clean and unmarred. It fits standard 3/8 inch collets on CNC routers and handheld router platforms. The 1.875 inch shank length provides adequate engagement for secure collet clamping. The double edge cutting style and right-hand cutting direction are consistent with conventional CNC router spindle rotation. Applications include panel sizing, cabinet component cutting, and millwork profiling on composite and laminated wood-based sheet materials.

Key Features

• Compression flute geometry suppresses tearout on both faces of laminated and veneered panels
• Solid carbide construction delivers edge retention and heat resistance under sustained feed rates
• 30-degree helix angle promotes efficient chip evacuation during routing passes
• Right-hand cutting direction compatible with standard CNC router spindle rotation
• Uncoated finish - suitable for use as-ground without additional surface treatment
• 3/8 inch shank fits standard collet sizes on benchtop and CNC router platforms

Compatibility

Part of the ONSRUD 60-100MW series. Designed for use with double sided laminated and veneered materials in CNC and handheld router applications requiring a 3/8 inch collet.

Installation Notes

Installation should be performed by a qualified operator following the router or CNC machine manufacturer's tooling guidelines. Shut down and lock out the spindle before changing bits. Seat the shank fully into the collet to the recommended insertion depth and torque the collet nut per the machine manufacturer's specification. Inspect the bit for chipping or wear before each use and do not operate a damaged bit.
