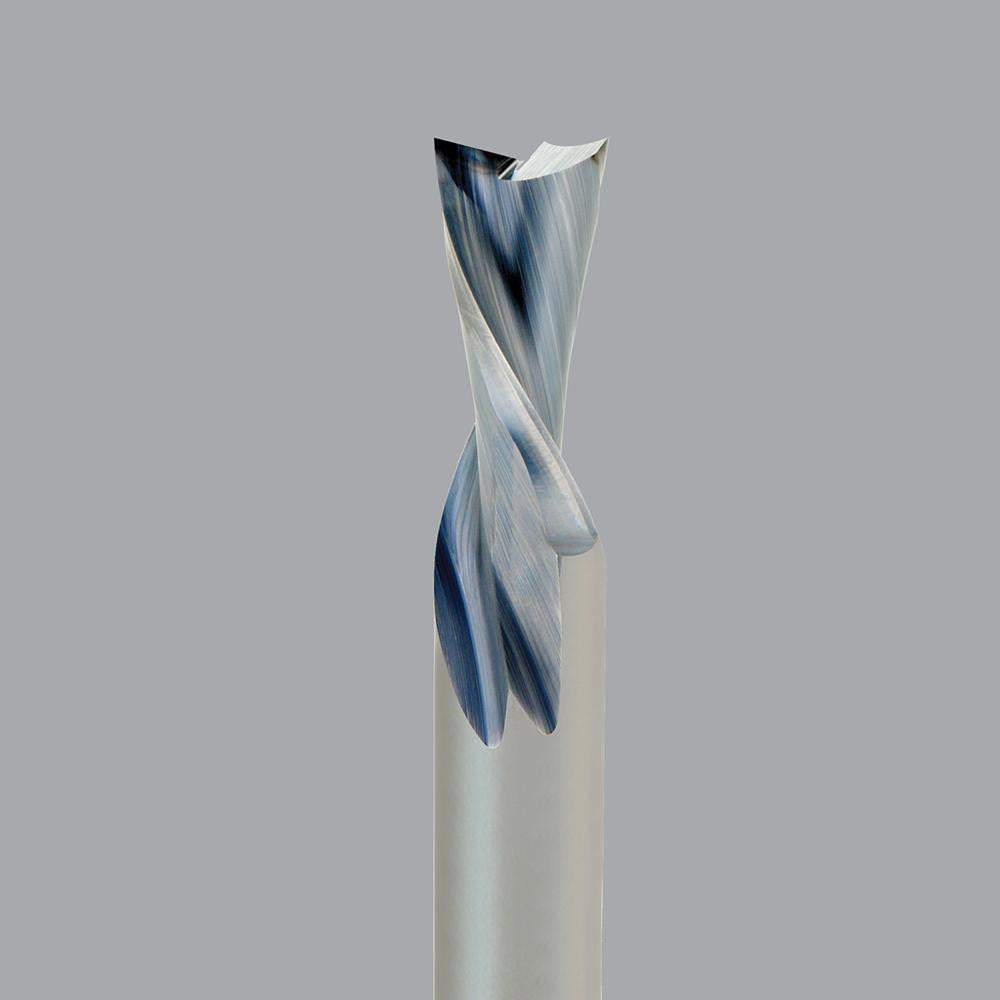

Onsrud 57-360 Downcut Spiral Router Bit 0.5 in Solid Carbide

Product Description

The ONSRUD 57-360 is a downcut spiral router bit machined from solid carbide for use in CNC routing and handheld router applications. With a 0.5-inch cutter diameter, a 1.125-inch length of cut, and a 3-inch overall length, this bit is sized for production cutting in natural wood, solid surfaces, and wood composites. The downcut flute geometry directs chips upward into the cut, reducing tearout and splintering on the top face of the workpiece. The 30-degree helix angle and double-edge configuration support clean, consistent chip evacuation at typical production feed rates.

This bit is suited for routing operations where surface finish on the top face is the priority, such as finish cuts on hardwood panels, solid surface countertop material, and laminated wood composites. It installs in any router with a 0.5-inch collet and accepts a 1.875-inch shank engagement depth. Woodworking shops, cabinet fabricators, and CNC operators working in residential and light commercial millwork environments are the typical end users. The uncoated solid carbide construction performs well in the abrasive conditions common to composite and engineered wood materials.

Key Features

• Downcut flute geometry reduces tearout on the top face of the workpiece
• Solid carbide construction provides hardness and edge retention in abrasive materials
• 30-degree helix angle supports smooth chip flow and consistent cut quality
• Double-edge design for balanced cutting forces during routing passes
• Right-hand cutting direction compatible with standard router spindle rotation
• Uncoated finish suitable for natural wood, solid surfaces, and wood composites

Compatibility

Designed for use in routers equipped with a 0.5-inch collet. Rated for natural wood, solid surfaces, and wood composites per manufacturer material application data. Part of the ONSRUD 57-200 series.

Installation Notes

Installation should be performed by a qualified CNC operator or router technician with the machine fully powered down and the spindle locked before bit changes. Insert the shank fully into the collet to the recommended engagement depth before tightening to the router manufacturer torque specification. Inspect the collet and collet nut for wear before each installation. Eye and hearing protection are required during operation.
