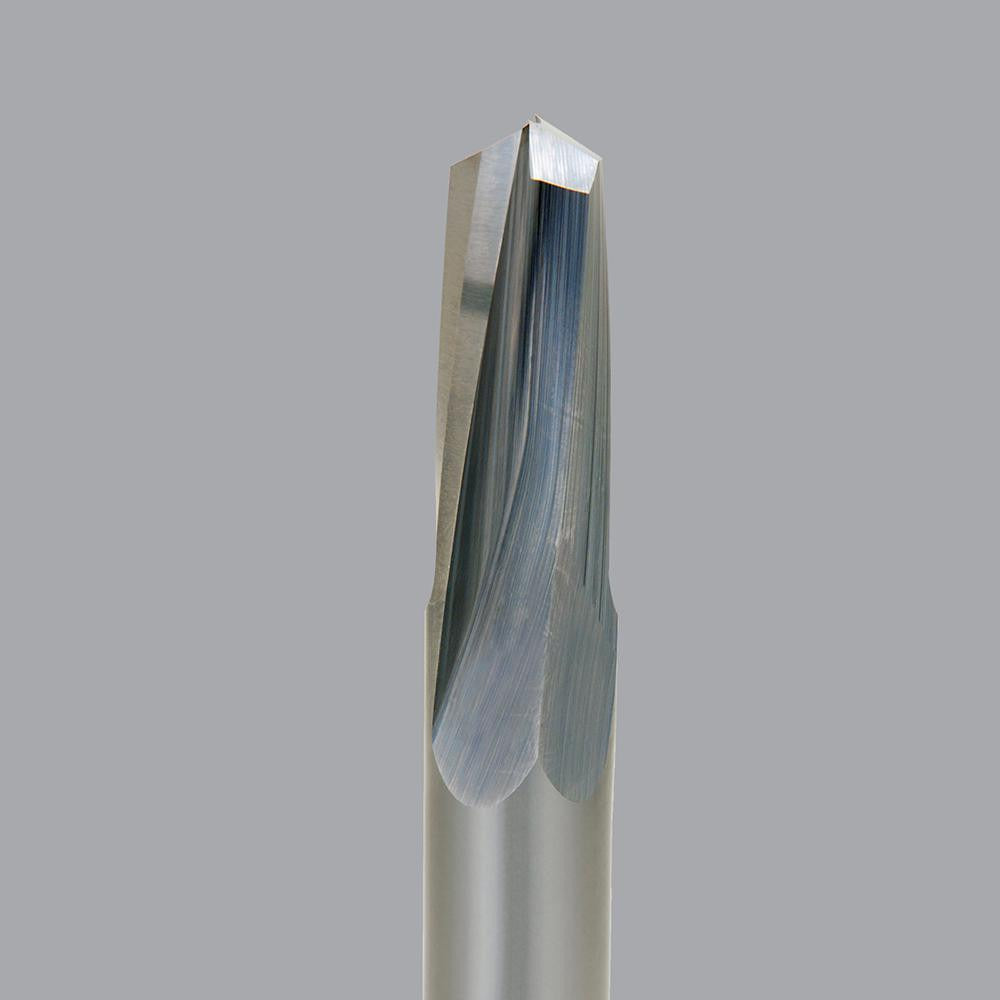

Onsrud 52-664 Upcut Spiral Router Bit 0.75 in Solid Carbide

Product Description

The ONSRUD 52-664 is a solid carbide upcut spiral router bit designed for cutting hard and soft plastics, solid surfaces, and a wide range of thermoplastic materials. With a 0.75 inch cutter diameter and a 3.125 inch length of cut, it handles deep passes in materials like ABS, acrylic, polycarbonate, HDPE, UHMW, nylon, PET, acetal, and PE. The double-edge, right-hand cutting geometry combined with an 11-degree helix angle promotes chip evacuation and a clean finish. At 0.74 pounds, the bit mounts on a 0.75 inch shank and is part of the 52-600 series. This bit is installed by CNC machine operators and tooling technicians working with plastic fabrication and machining applications.

This bit is suited for routing and profiling operations in hard and soft plastics and solid surface materials in both production shop and job-site environments. Typical applications include panel cutting, edge profiling, and through-cuts in thermoplastic sheet goods. The upcut flute style pulls chips up and out of the cut, reducing heat buildup and recutting in deep-pocket and through-cut scenarios. The 6 inch overall length provides clearance for thicker workpieces and deep fixture setups common in CNC router tables.

Key Features

• Solid carbide construction for durability and edge retention in abrasive plastic materials
• Upcut flute geometry promotes chip evacuation and reduces heat buildup
• 11-degree helix angle optimized for hard and soft plastics and solid surfaces
• Double-edge router style for efficient material removal
• Uncoated finish - no coating buildup risk on heat-sensitive thermoplastics
• Right-hand cutting direction compatible with standard CNC and handheld router spindles

Compatibility

Designed for use with materials including ABS, acetal, acrylic, HDPE, hard and soft plastics, nylon, PE, PET, polycarbonate, solid surfaces, and UHMW. Part of the ONSRUD 52-600 series. Fits any router or CNC spindle accepting a 0.75 inch shank.

Installation Notes

Installation is performed by CNC machine operators or tooling technicians. Power down and lock out the spindle before inserting or removing the bit. Seat the shank fully into the collet and torque the collet nut per the router or CNC manufacturer specifications. Verify spindle speed settings are appropriate for the target material and bit diameter before engaging the cut.
