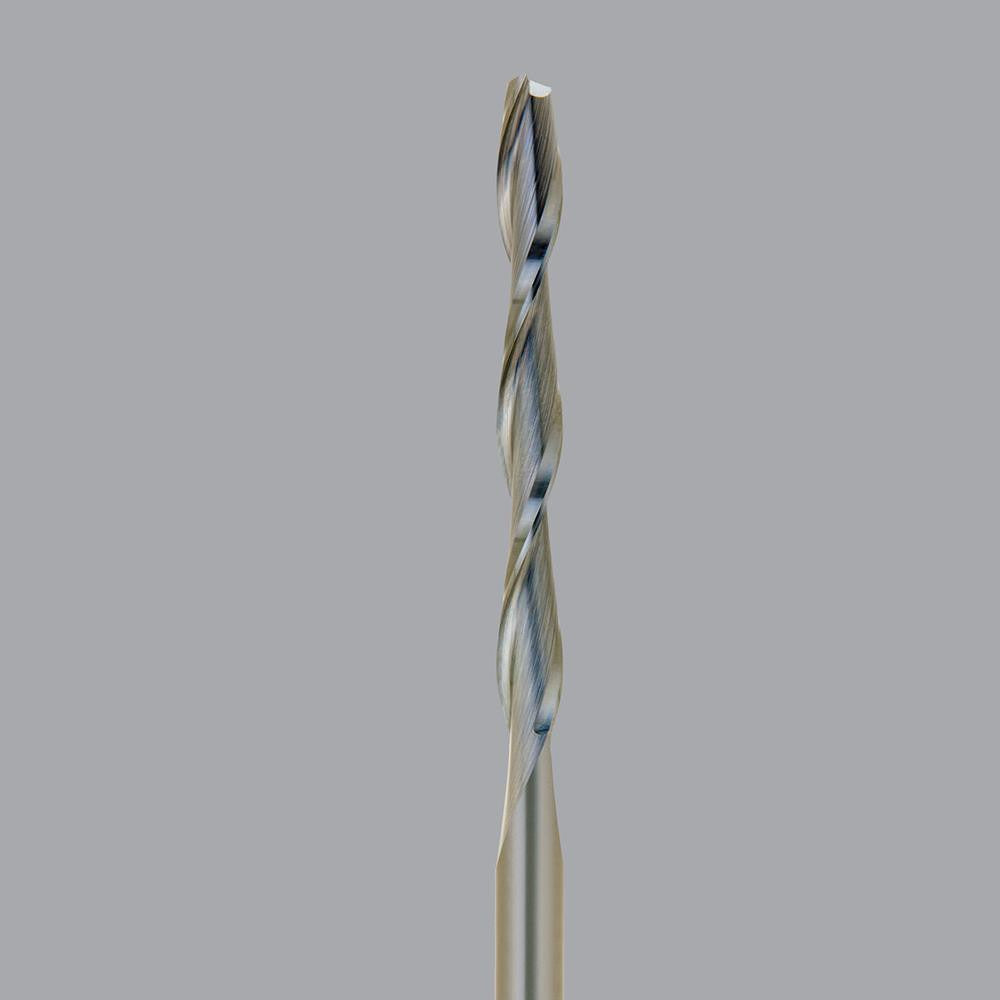

Onsrud 52-560 Upcut Spiral Router Bit 3/16 in Solid Carbide

Product Description

The ONSRUD 52-560 is a solid carbide upcut spiral router bit designed for cutting foam materials. With a 3/16-inch (0.1875 inch) cutter diameter and a 1.625-inch length of cut, this bit removes chips aggressively by pulling them upward and out of the cut. The 25-degree helix angle promotes clean chip evacuation, which helps maintain cut quality in low-density foam applications. The double-edge design provides stable cutting geometry. At 3 inches overall length with a 2.375-inch shank length, the 52-560 fits standard router collets and CNC spindles. It ships uncoated and requires no pilot bearing.

This bit is suited for routing, profiling, and trimming foam - including expanded polystyrene (EPS), polyurethane, and similar soft materials - in CNC routing and hand-router applications. Typical users include sign makers, packaging fabricators, and composite panel shops. The upcut flute geometry is especially useful when through-cuts are required and chip buildup in the kerf is a concern. The right-hand cutting direction is standard for conventional CNC spindle rotation.

Key Features

• Solid carbide construction for wear resistance in abrasive foam materials
• Upcut flute geometry pulls chips up and out of the cut, reducing re-cutting
• 25-degree helix angle promotes aggressive chip evacuation
• Double-edge (2-flute) design balances feed rate capability with cut quality
• Uncoated finish - no coating degradation risk in foam or soft-material applications
• Right-hand cutting direction, compatible with standard CNC and handheld router spindles

Compatibility

Part of the ONSRUD 52-550 series. Designed for use in CNC routers and handheld routers accepting a 3/16-inch shank collet. Optimized for foam material applications as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified CNC operator or machinist familiar with router tooling. Power down and lock out the spindle before changing tooling. Insert the shank fully into the collet to the manufacturer-recommended engagement depth before tightening. Verify spindle RPM and feed rate settings are appropriate for foam cutting before initiating a cut cycle.
