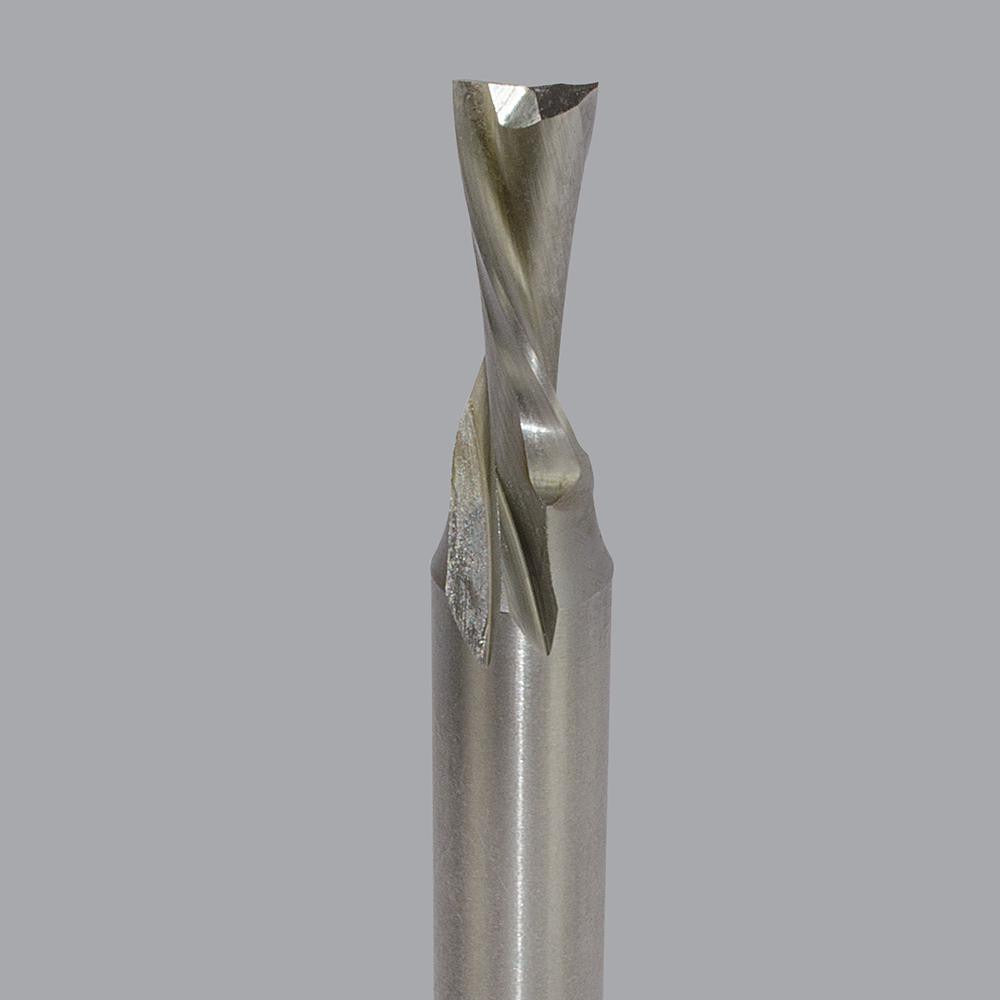

Onsrud 40-134 Downcut Spiral Router Bit 3/8 Inch

Product Description

The ONSRUD 40-134 is a downcut spiral router bit designed for clean, chip-free top surfaces in woodworking and light metalworking applications. Built from high speed steel with an uncoated finish, it features a 0.375-inch cutter diameter and a 1-inch length of cut, making it well suited for shallow profile cuts and edge work where surface quality on the upper face is the priority. The downcut flute geometry pushes chips downward, reducing tearout and fraying on the top of the workpiece. This bit is used by cabinet makers, millwork shops, and CNC routing professionals who need consistent results in natural wood, sheet goods, and aluminum extrusions.

This bit fits standard 0.5-inch collet routers and CNC routing machines. It is applicable in residential millwork, cabinetry, sign making, and light fabrication environments where the material stack includes natural wood, wood composites, or aluminum extrusions. The 3.5-inch overall length and 2.5-inch shank length provide adequate reach for most benchtop and gantry-style CNC setups. It is not piloted and is intended for guided or programmed cutting paths rather than freehand bearing-guided profiles.

Key Features

• Downcut flute geometry minimizes tearout on the top face of the workpiece
• High speed steel construction suitable for natural wood, sheet goods, and aluminum extrusions
• Double-edge design for efficient material removal on each pass
• Right-hand cutting direction compatible with standard router spindle rotation
• 19 to 32 degree helix angle balances chip evacuation with surface finish quality
• Uncoated finish for consistent performance in non-abrasive material applications

Compatibility

Designed for use in 0.5-inch collet routers and CNC routing machines cutting natural wood, sheet goods, and aluminum extrusions. Part of the ONSRUD 40-100 series of spiral router bits.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the router or spindle fully powered down and locked out before bit changes. Insert the shank to the full recommended collet depth and torque the collet nut per the router or spindle manufacturer specifications. Inspect the bit for chips or cracks before each use and do not exceed the manufacturer-recommended feed rate and RPM range for the material being cut.
