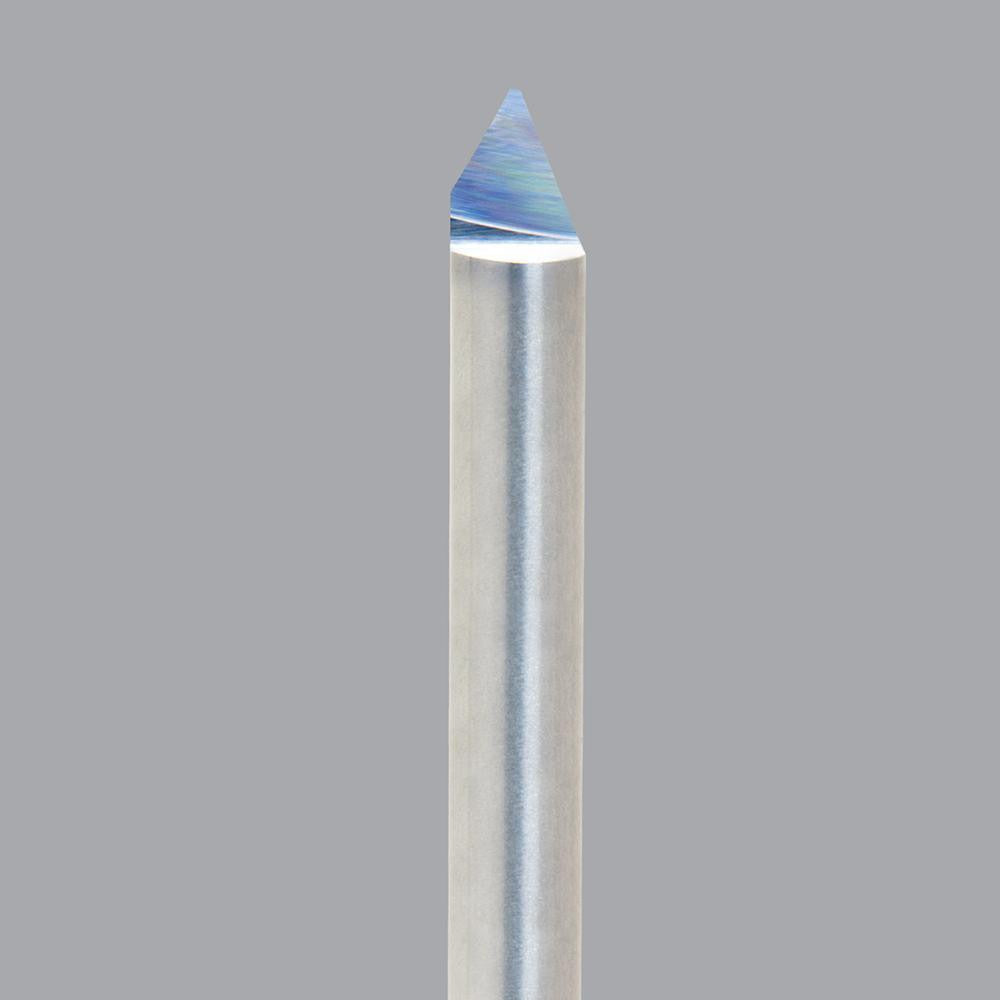

Onsrud 37-09 Engraving Cutter 60 Degree Solid Carbide

Product Description

The ONSRUD 37-09 is a solid carbide conical point engraving cutter designed for precision engraving and detail routing across a range of materials. Built with a 60-degree included angle and a 0.04-inch cutter diameter with a matching 0.04-inch tip diameter, this single-flute tool delivers clean, consistent V-groove and detail cuts. The uncoated solid carbide construction provides the hardness and edge retention needed for high-speed engraving operations in both production and shop environments. With a 1/4-inch shank diameter and a 2-inch overall length, the 37-09 fits standard CNC router collets and spindle setups used by machinists and fabricators working with light materials.

The ONSRUD 37-09 is suited for engraving and contouring operations on aluminum, plastics, solid surfaces, and wood. It is commonly used in CNC router applications for sign making, panel marking, part identification, and decorative detail work. The right-hand cutting direction is standard for conventional CNC spindle setups. This cutter is part of the ONSRUD 37-00 series, which covers conical engraving tools for light-material applications in both shop and production environments.

Key Features

• 60-degree included angle for clean V-groove engraving and sharp detail lines
• 0.04-inch cutter diameter and 0.04-inch tip diameter for fine, precise cuts
• Solid carbide construction for hardness and long edge life
• Uncoated finish suitable for aluminum, plastics, solid surfaces, and wood
• Single-flute design promotes chip clearance in light-material engraving
• 1/4-inch shank fits standard CNC router collets

Compatibility

Designed for use on aluminum, plastics, solid surfaces, and wood. Part of the ONSRUD 37-00 series. Compatible with CNC routers and engraving machines equipped with a 1/4-inch collet and right-hand spindle rotation.

Installation Notes

Installation is performed by a CNC operator or machinist. Power down and de-energize the spindle before inserting or removing the cutter from the collet. Ensure the collet and collet nut are clean and free of debris before seating the shank. Verify spindle speed and feed rate settings are appropriate for the material being cut before starting the operation.
