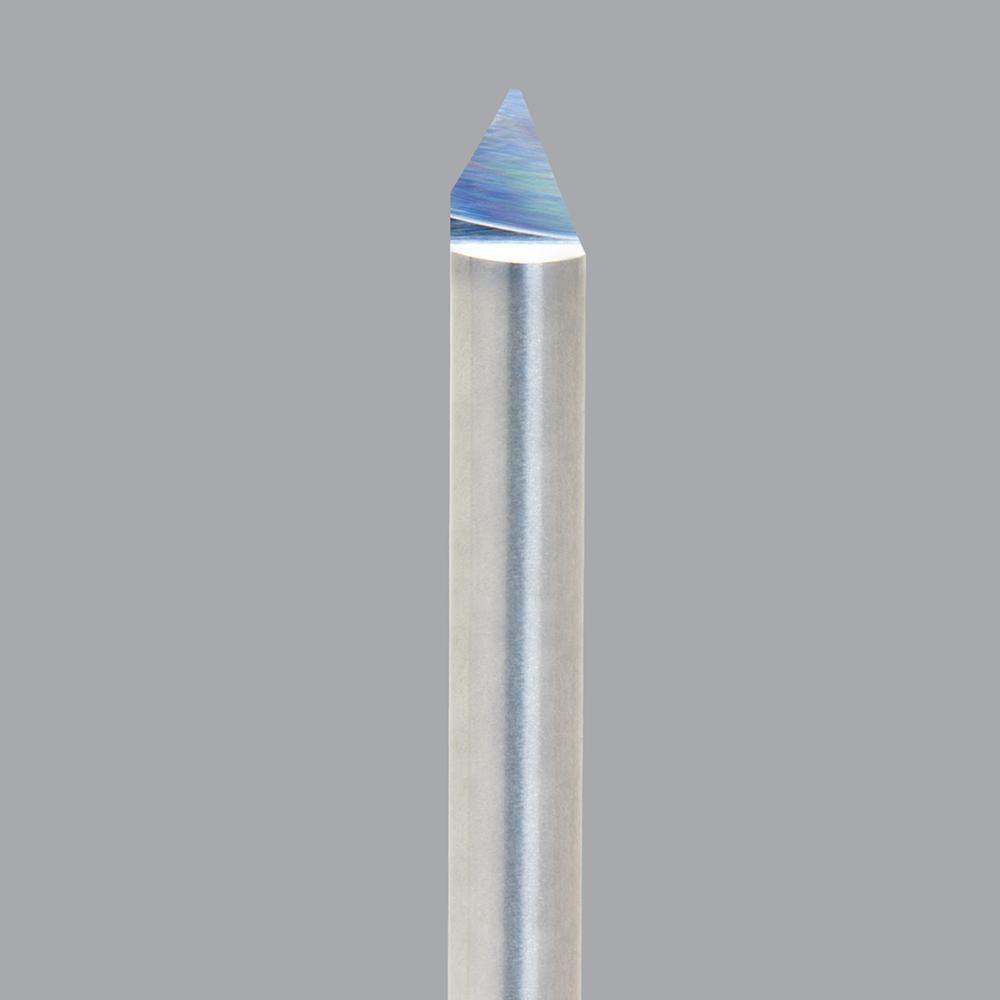

Onsrud 37-01 Engraving Cutter 60 Degree Solid Carbide

Product Description

The ONSRUD 37-01 is a solid carbide conical point engraving cutter designed for precise engraving and marking operations in CNC routing and machining applications. The cutter features a 60-degree included angle with a 0.005-inch tip diameter and a 0.005-inch cutter diameter, making it well suited for fine detail work and narrow line engraving. The single-flute design promotes clean chip evacuation and efficient cutting in a variety of non-ferrous and non-metallic materials. The uncoated solid carbide construction delivers consistent rigidity and edge retention at small cutting diameters. Licensed trade machinists and CNC operators are the primary installers and end users of this tool.

The ONSRUD 37-01 is intended for use on aluminum, plastics, solid surfaces, and wood. It fits standard 1/4-inch collet tool holders and is appropriate for use on CNC routers and engraving machines in both production shop and sign-making environments. The 2-inch overall length provides adequate reach for most flat-stock engraving setups. This cutter belongs to the ONSRUD 37-00 series, which covers conical point engraving cutters in varying tip geometries and included angles.

Key Features

• 60-degree included angle for consistent V-groove engraving geometry
• 0.005-inch tip diameter for fine detail and narrow line work
• Single right-hand flute for clean chip removal in soft materials
• Solid carbide construction for rigidity and edge retention at small diameters
• Uncoated finish suitable for aluminum, plastics, solid surfaces, and wood
• 1/4-inch shank diameter fits standard CNC router collets

Compatibility

Designed for use on aluminum, plastics, solid surfaces, and wood. Compatible with CNC routers and engraving machines equipped with a 1/4-inch collet. Part of the ONSRUD 37-00 series of conical point engraving cutters.

Installation Notes

Installation is performed by a qualified CNC machinist or tooling technician. Power down and lock out the spindle before changing tooling. Seat the 1/4-inch shank fully in the collet and torque the collet nut according to the machine manufacturer specifications. Inspect the tip diameter under magnification before use, as tips at this scale are susceptible to chipping if mishandled during storage or installation.
