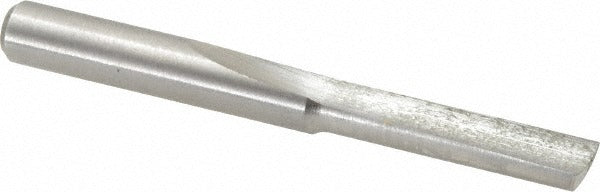

Onsrud 11-07 Single Edge Router Bit 1/4 in Hss

Product Description

The ONSRUD 11-07 is a single-edge, single-flute straight router bit designed for cutting plastics and thermoplastic materials. Built from high speed steel (HSS), it features a 0.25-inch cutter diameter, a 1-inch length of cut (LOC), and a right-hand cutting direction. The square end geometry produces clean, flat-bottomed cuts. At 2.375 inches overall length (OAL) and a 0.25-inch shank diameter, it fits standard router collets used in CNC routing and handheld router applications. This bit is installed and used by machinists, plastics fabricators, and skilled tradespeople working with sheet and profile plastic stock.

This router bit is intended for use on a range of thermoplastic and engineered plastic materials including ABS, HDPE, polyvinyl chloride (PVC), polycarbonate, polyethylene, polypropylene, extruded acrylic, polystyrene, and UHMW. It is well suited to production routing and trim work on plastic sheet goods in fabrication shops, sign shops, and light manufacturing environments. The single-flute design promotes chip clearance and reduces heat buildup when routing plastics at appropriate feed and speed rates.

Key Features

• Single-edge, single-flute straight geometry optimized for plastic routing
• High speed steel construction provides durability across thermoplastic materials
• Square end profile produces flat-bottomed cuts and clean sidewalls
• Right-hand cutting direction compatible with standard router spindle rotation
• 0.25-inch shank diameter fits common router collets and CNC spindle toolholders
• Non-piloted design for freehand, template, or CNC-guided routing operations

Compatibility

Designed for use on ABS, HDPE, polyvinyl chloride, polycarbonate, polyethylene, polypropylene, extruded acrylic, polystyrene, and UHMW. Fits any router or CNC machine accepting a 0.25-inch shank toolholder.

Installation Notes

This bit is installed by machinists or fabricators into a router collet or CNC toolholder rated for 0.25-inch shank tooling. Ensure the machine spindle is fully powered down and locked out before changing tooling. Seat the shank fully into the collet and tighten to the collet manufacturer's specification. Verify feed rate and spindle speed are appropriate for the specific plastic being routed to prevent melting or poor surface finish.
