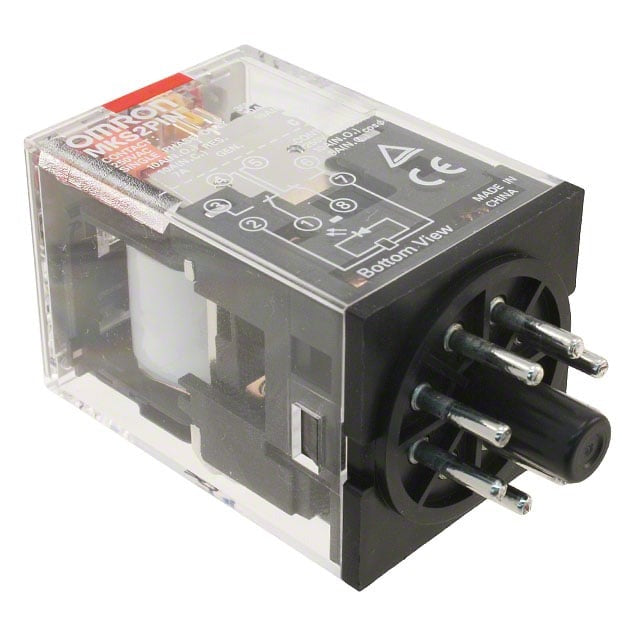

Omron MKS2PIN-AC120 Plug-In General Purpose Relay 120 VAC (DPDT) MKS2P

Product Description

The Omron MKS2PIN-AC120 is a plug-in general-purpose relay with a 120 VAC non-latching coil, DPDT (2 Form C) contacts, a lockable test button, and an LED coil indicator. It features silver tin indium contacts rated to 10 A and switching up to 250 VAC or 250 VDC. The relay uses plug-in termination for panel mounting, includes mechanical contact indicators, and has a coil resistance of 1.13 kOhm (coil current 19.3 mA).

• Lockable test button and mechanical indicators for contact operation
• LED indicator for coil status with plug-in termination for panel mounting
• DPDT (2 Form C) contacts, AgSnIn contact material, 10 A rating; switching up to 250 VAC / 250 VDC

Product Highlights

Plug-in DPDT relay with 120 VAC coil, 10 A AgSnIn contacts, lockable test button and LED indicator

Product Information

Standard Information

• Brand: OMRON
• Manufacturer Part Number: MKS2PIN-AC120
• Country of Origin: China
