OMNI A11805 Cable 18/5 AWG VNTC Tray Cable

Product Description

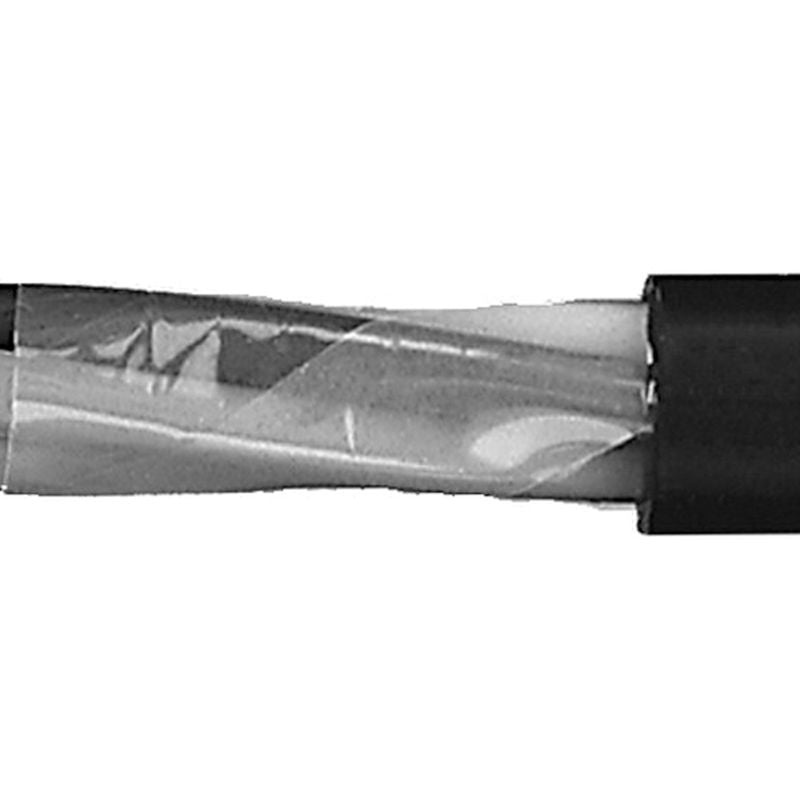

The OMNI A11805 is an unshielded tray cable with five conductors, each sized 18 AWG. It is designed for both commercial and industrial applications. This cable has stranded copper conductors with PVC and nylon insulation. It is rated for six hundred volts and can be used in free air, raceways, direct burial, and various wet or dry locations.

• Features stranded copper conductors for flexibility.
• Complies with multiple UL and IEEE standards.
• Sunlight-resistant and flame-retardant PVC jacket.

Product Highlights

This cable is built with color-coded conductors for easy identification during installation. It meets strict safety and performance standards and can handle temperatures up to one hundred ninety-four degrees Fahrenheit (ninety degrees Celsius).

Product Information

Standard Information

• Brand: OMNI
• MPN: A11805

Technical Specifications

• Voltage: 600 volts
• Wire Gauge: 18 AWG
• Conductor Count: 5
• Conductor Type: Stranded copper
• Outside Diameter: 0.335 inches
• Temperature Rating: 194 degrees Fahrenheit (90 degrees Celsius)
• Jacket Material: PVC
• Color: Black
