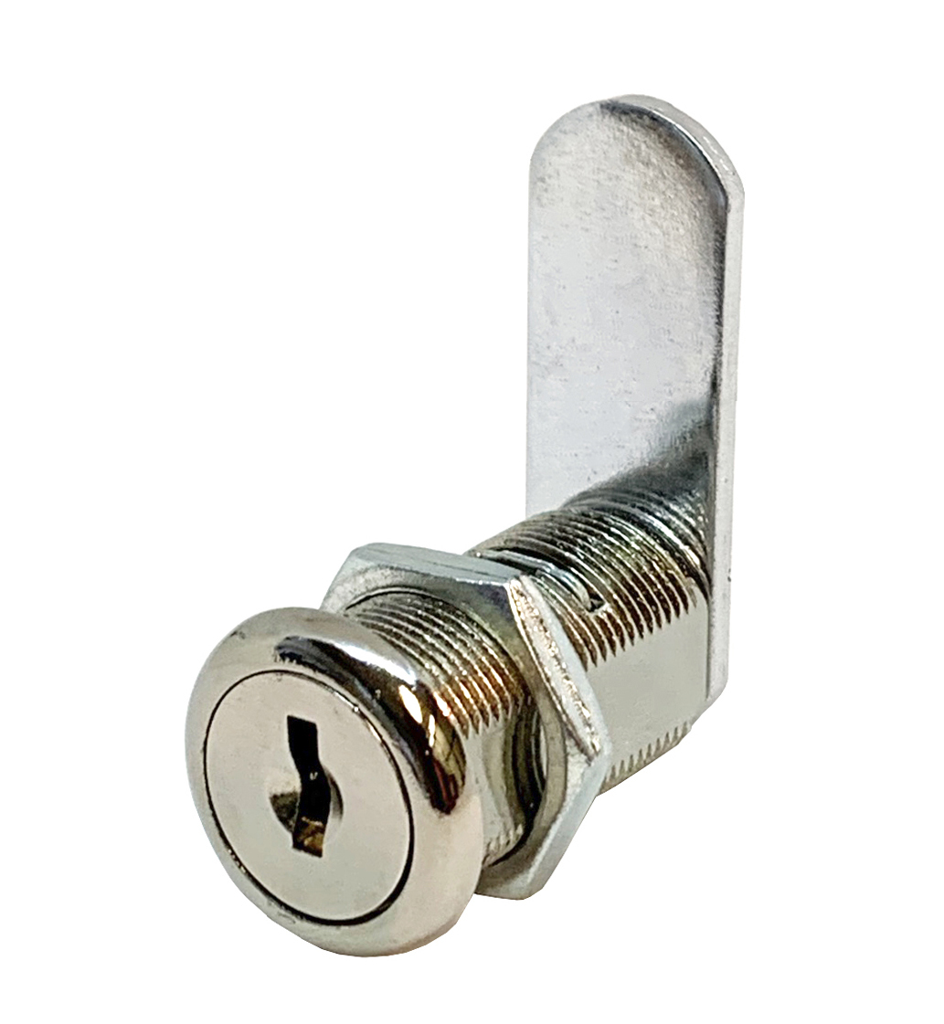

Olympus 953-14A-MKKD Disc Cam Lock 1-3/16in

Product Description

The Olympus 953-14A-MKKD is a disc cam lock designed for secure locking solutions. It features a five-disc tumbler key system and can key into CompX/National C8053 or similar disc tumbler products. This lock includes an eyelet spur-washer that allows for secure mounting and anti-rotation. It is built to fit a standard three-quarter inch diameter hole, making it versatile for various applications.

• Five-disc tumbler system for enhanced security
• Compatible with CompX/National C8053 locks
• Includes mounting hardware for easy installation

Product Highlights

This product provides reliable locking for cabinets and other secure areas.

Product Information

Standard Information

• Keying: Will key together with CompX/National C8053 style disc tumbler locks
• Assembly: Ships with body and cylinder assembled for fast and easy installation

Technical Specifications

• ANSI/BHMA: Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal
• Body: Zinc die cast
• Cylinder: Zinc die cast, 5 disc tumbler
• Standard Function: Key removable in locked or unlocked position
• Cams: Ships with one straight and one offset cam
• Spur Washer: Ships with anti-rotation, eyelet spur washer
• Finish: 14A (bright nickel) or US19 (matte black)
• Keyway: Cascade Series (equivalent to National 5-disc system)
• Keys: Includes 2 keys per lock
• Stock Keying: KD (120 KD codes), MKKD (120 MKKD codes)
• Custom Keying: MKKA or combination of MKKA/MKKD available
• Keyblanks: KB-D85-C-NP (NON-MK), KB-D83-D-NP (MK)
• Cylinder Length: 1-3/16 inches
• Maximum Material Thickness: 7/8 inches
• Product Type: Cabinet Lock
• UNSPSC Code: 46171500
