Oatey dear-p9114ab Center Outlet Waste Baffle Tee Pvc

Product Description

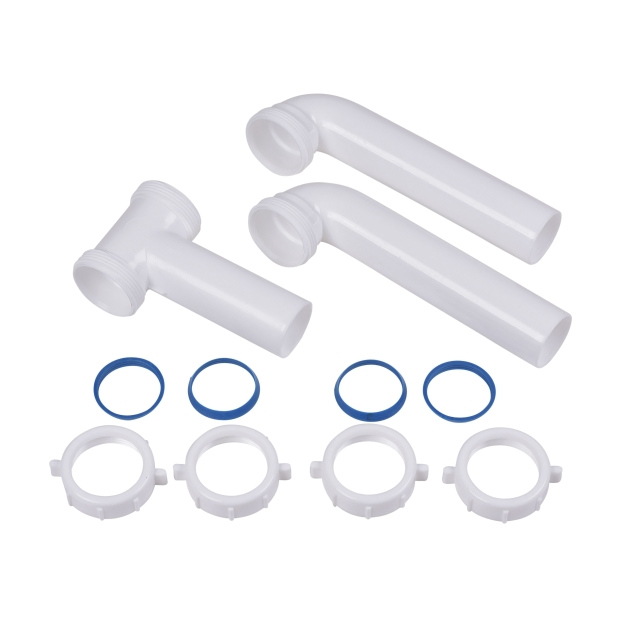

The OATEY dear-p9114ab is a PVC center outlet waste assembly with a baffle tee, designed for tubular drain applications in residential kitchens. The center outlet configuration positions the drain opening at the middle of the waste arm, and the included baffle tee allows connection of two drain sources into a single outlet. Built from PVC, this fitting supports both hi-line and slip joint combination installations. It is sized for 1-1/2 inch tubular drain lines and measures 16 inches in overall length. Plumbers and licensed drain installers use this assembly during sink rough-in and finish work.

This center outlet waste with baffle tee is intended for kitchen sink drain applications. The hi-line or slip joint combination design accommodates common under-sink drain configurations, making it suitable for double-basin kitchen sinks where two drain legs must tie into a single trap outlet. The PVC construction resists corrosion and is compatible with standard tubular drain fittings found in residential kitchen cabinetry installations.

Key Features

• Center outlet positioning supports double-basin kitchen sink drain layouts
• Baffle tee included for combining two drain sources at one outlet
• Compatible with both hi-line and slip joint connection styles
• PVC construction resists corrosion in wet drain environments
• Sized for standard 1-1/2 inch tubular drain lines
• 16 inch overall length fits typical under-sink cabinet depth

Compatibility

Designed as an OEM-style replacement or new-install fitting for 1-1/2 inch tubular drain systems in kitchen sink applications.

Installation Notes

Installation is performed by a licensed plumber or qualified drain installer. Shut off the water supply and ensure the P-trap is disconnected before removing or replacing the waste assembly. Slip joint nuts should be hand-tightened first and then snugged with pliers — do not overtighten PVC fittings. Work must comply with applicable local plumbing codes and the International Plumbing Code (IPC) where adopted.

Technical Specifications

• Material: PVC
• Connection Size: 1-1/2 inches
• Overall Length: 16 inches
• Connection Type: Hi-Line or Slip Joint Combination
• Application: Kitchen Sink Tubular Drain

Standard Information

• Brand: OATEY
• Manufacturer Part Number: dear-p9114ab
