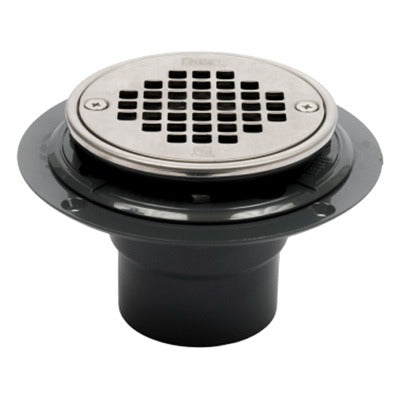

Oatey Company 42263 Round Ceramic Shower Drain 2x3

Product Description

The OATEY COMPANY 42263 is a round ceramic shower stall drain designed for use in tile and ceramic shower installations requiring a 2-inch by 3-inch drain fitting. The bolt-down clamp ring secures the drain body over a 2-inch inside diameter, 3-inch DWV pipe, creating a watertight transition at the shower floor. This drain is specifically designed for use with shower pan liners, making it a standard specification for new construction and remodel wet-area installations. Licensed plumbers and tile contractors install this drain as part of a properly sloped and waterproofed shower assembly.

This drain is suited for residential and light commercial shower stall applications where a ceramic finish is required to match tile surrounds. It fits over 2-inch inside, 3-inch DWV pipe configurations, which are common in residential bathroom rough-in work. The bolt-down clamp ring design allows the installer to sandwich the shower pan liner between the drain body and the clamping flange, preventing water from bypassing the liner at the drain opening. This design is appropriate for mud-bed and pre-formed shower pan liner assemblies.

Key Features

• Round ceramic drain top suitable for tile and ceramic shower floors
• Bolt-down clamp ring secures shower pan liner between drain body and flange
• Fits over 2-inch inside diameter, 3-inch DWV pipe
• Compatible with shower pan liner installations in new construction and remodel applications
• Sold in a package quantity of 12 units

Compatibility

Designed for use with shower pan liner assemblies fitted to 2-inch inside, 3-inch DWV drain pipe configurations in residential shower stall installations.

Installation Notes

Installation is typically performed by a licensed plumber or experienced tile contractor in accordance with local plumbing code and IPC requirements for wet-area drain assemblies. Before beginning work, shut off the water supply and ensure the shower pan liner is properly positioned and free of punctures prior to clamping. The liner should be draped over the drain base before the bolt-down clamp ring is tightened, trapping the liner material to create a watertight seal. Do not over-tighten the clamping bolts, as excess force can tear or compromise the liner.

Technical Specifications

• Drain Inlet Size: 2 inches inside diameter
• DWV Pipe Size: 3 inches
• Drain Shape: Round
• Finish: Ceramic
• Clamp Type: Bolt-down clamp ring
• Application: Shower pan liner installations
• Package Quantity: 12 per case
• Weight: 13.23 pounds

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 42263
