Oatey Company 335551 Galvanized Split Ring Hanger 1.5 in

Product Description

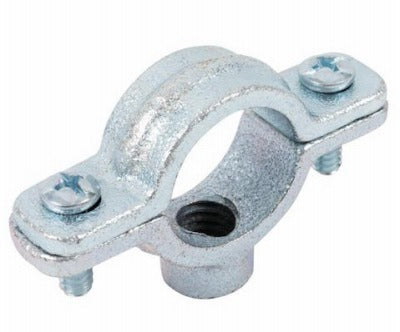

The OATEY COMPANY 335551 is a galvanized split ring tubing hanger designed to support pipe and tubing runs in plumbing and mechanical installations. The split ring design allows the hanger to be installed around existing pipe without threading the pipe through a closed ring, making it practical for both new construction and retrofit work. Galvanized steel construction provides corrosion resistance in exposed or damp environments. This hanger is sized for 1.5-inch pipe or tubing and is sold in packages of 8 units, making it well suited for multi-point support runs on a single job.

Split ring tubing hangers in this size are commonly used in residential and light commercial plumbing systems to secure copper, CPVC, or steel pipe to framing, joists, and structural supports. They are a standard fastener in drain, waste, vent, and supply line installations where code requires periodic pipe support along horizontal and vertical runs. Licensed plumbers and pipefitters install these during rough-in phases as well as during service and remodel work.

Key Features

• Split ring design allows installation around existing pipe without disassembly
• Galvanized steel construction resists corrosion in damp or exposed environments
• Sized for 1.5-inch pipe and tubing
• Sold in a package of 8 hangers for multi-point support applications
• Compatible with standard joist, stud, and structural framing fastening points

Compatibility

Designed as an OEM-style replacement and general-use hanger for 1.5-inch pipe and tubing in residential and light commercial plumbing and mechanical systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and local plumbing code requirements for pipe support spacing. Shut off the water supply and depressurize the line before repositioning any existing pipe during hanger installation. Use appropriately rated fasteners for the substrate material — wood framing, concrete, or steel — to ensure secure support. Do not overtighten fasteners in a way that deforms the hanger or stresses the pipe wall.

Technical Specifications

• Pipe Size: 1.5 inches
• Material: Galvanized Steel
• Package Quantity: 8 per package
• Weight: 1.96 pounds
• Unit of Measure: EA

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 335551
