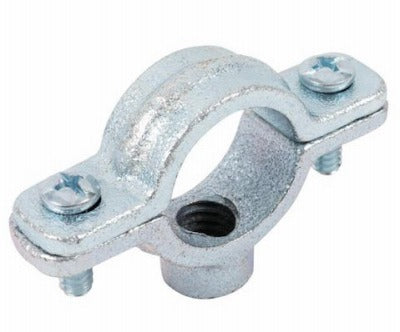

Oatey Company 335531 Galvanized Split Ring Hanger 1 Inch

Product Description

The OATEY COMPANY 335531 is a 1-inch galvanized split ring tubing hanger designed to support copper, steel, and plastic tubing in mechanical and plumbing installations. The split ring design allows the hanger to be installed around existing pipe runs without threading the pipe through the hanger, saving time on retrofit and new construction jobs. The galvanized finish provides corrosion resistance in damp or exposed environments. Licensed plumbers and pipefitters use this hanger to secure tubing to joists, beams, and strut channel in residential and light commercial systems.

This hanger is suited for overhead and vertical pipe support applications in residential and commercial plumbing, HVAC refrigerant line sets, and hydronic piping systems. It is sized for 1-inch nominal tubing and is typically installed in repeating intervals along horizontal or vertical runs as required by applicable plumbing and mechanical codes. Each package contains 8 hangers, making it practical for multi-point installations on a single run.

Key Features

• 1-inch tubing size accommodates standard nominal pipe and tubing runs
• Galvanized steel construction resists corrosion in wet and humid environments
• Split ring design speeds installation on existing or new pipe runs without pipe threading
• Sold in 8-piece packages for efficient multi-point support jobs
• Suitable for use in residential and light commercial mechanical and plumbing systems

Compatibility

Designed as an OEM-style replacement and standard-use tubing hanger for 1-inch nominal pipe and tubing in plumbing, HVAC, and mechanical piping applications.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters following IPC and IMC support spacing requirements for the pipe material and size. Shut off the water supply or refrigerant system before working on active lines. Use appropriate fasteners rated for the substrate when securing the hanger to wood framing, concrete, or metal strut. Do not overtighten fasteners in a way that deforms the split ring or restricts pipe expansion and contraction.

Technical Specifications

• Pipe Size: 1 inch
• Material: Galvanized Steel
• Package Quantity: 8 pieces per package
• Weight: 1.59 pounds
• Unit of Measure: EA

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 335531
