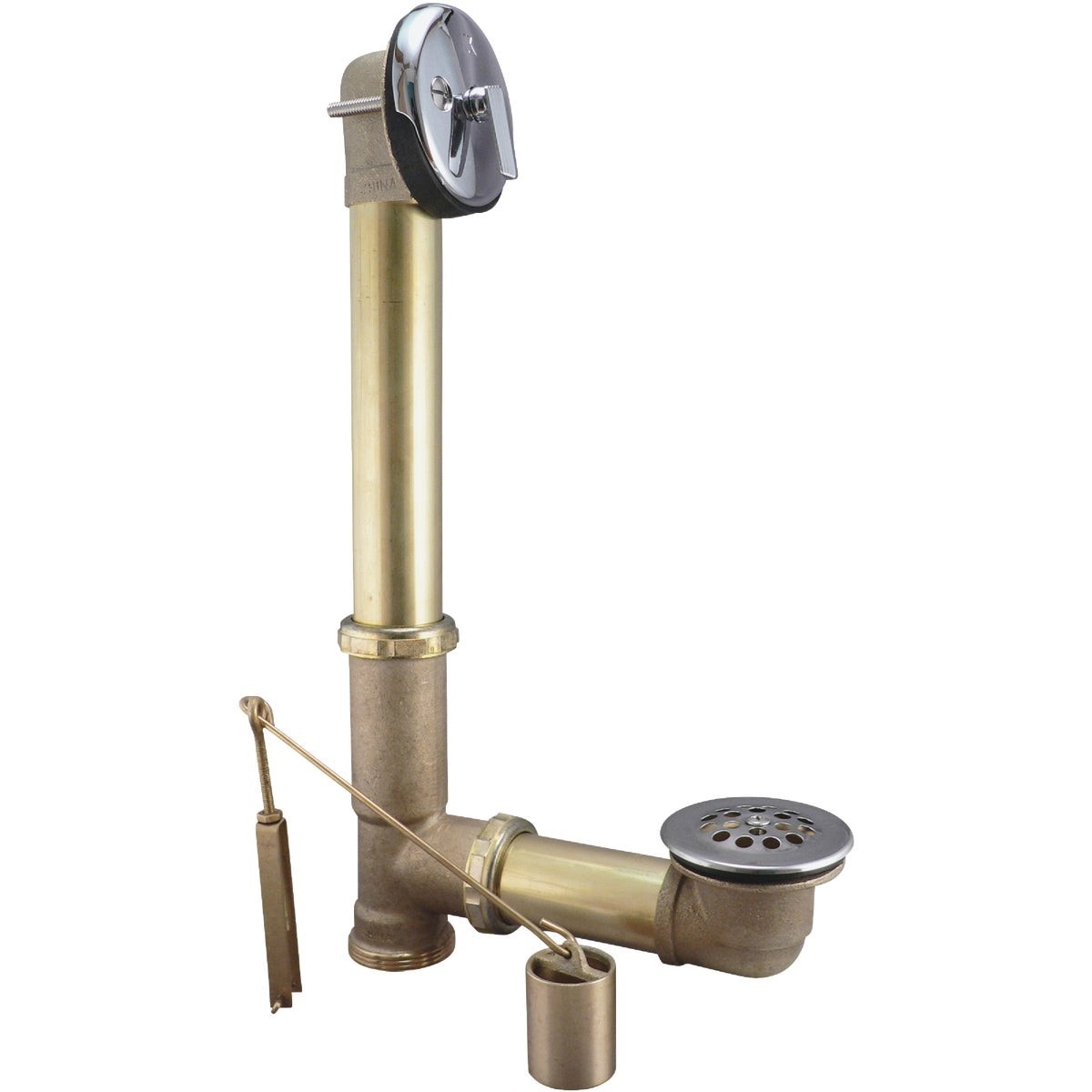

Oatey 606RB Trip Lever Bath Drain Rough Brass Chrome

Product Description

The OATEY 606RB is a trip lever bath drain assembly designed for bathtubs with a concealed overflow drain configuration. The assembly includes rough brass tubing and tee construction with polished chrome finish trim components. Tubing diameter is 1-1/2 inches, and the assembly adjusts to fit a range of tub wall depths from 10-1/2 inches to 14 inches. Built to 20-gauge material thickness, this drain is a practical replacement or new-installation option for residential bathtubs. Licensed plumbers and experienced installers handle this type of drain assembly during tub rough-in or remodel work.

This drain is intended for residential bathtubs that use a concealed overflow and trip lever stopper mechanism. The adjustable tubing length makes it suitable for a range of tub configurations without requiring custom cutting in most standard installations. The polished chrome trim provides a finished appearance on the overflow faceplate and drain cover that coordinates with common bathroom fixture finishes.

Key Features

• Rough brass tubing and tee for corrosion resistance and durability in wet installations
• Adjustable length from 10-1/2 inches to 14 inches to fit varying tub wall depths
• 1-1/2 inch diameter tubing matches standard residential drain sizing
• Polished chrome trim finish on overflow plate and visible components
• 20-gauge construction throughout the assembly
• Trip lever mechanism operates the concealed drain stopper without exposed linkage at the drain opening

Compatibility

Designed as an OEM-style replacement or new-install drain assembly for residential bathtubs with concealed overflow drains and standard 1-1/2 inch drain connections.

Installation Notes

Installation is performed by a licensed plumber or qualified installer. Shut off water supply and verify the tub is fully drained before beginning work. The adjustable tubing should be set to the correct length before securing connections to ensure proper stopper travel and a watertight fit. Follow local plumbing codes, including applicable IPC requirements, for drain assembly installation and access panel provisions.

Technical Specifications

• Tubing Diameter: 1-1/2 inches
• Adjustable Length Range: 10-1/2 inches to 14 inches
• Gauge: 20-gauge
• Tubing and Tee Material: Rough Brass
• Trim Finish: Polished Chrome
• Weight: 3.85 pounds
• Application: Concealed drain bathtubs

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 606RB
