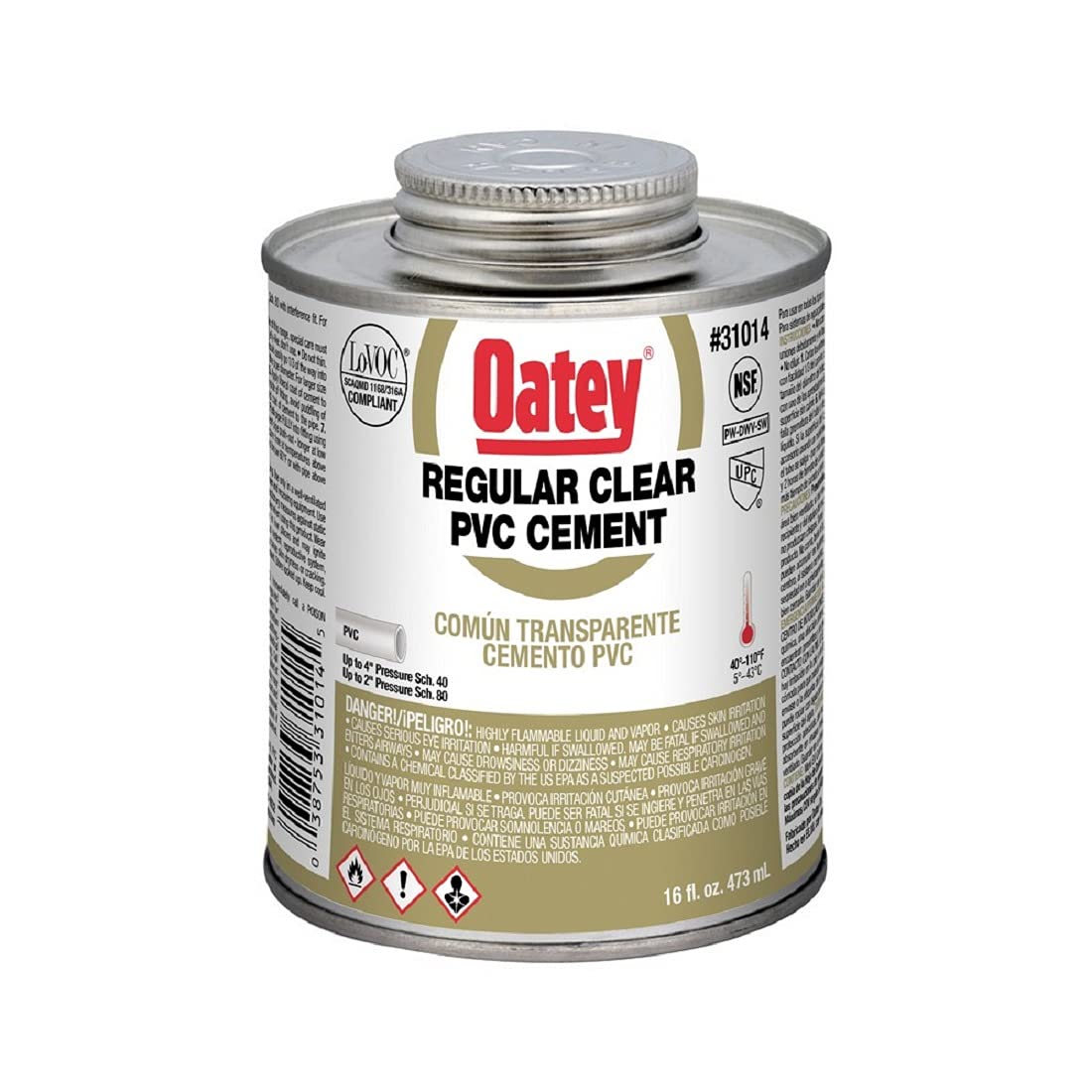

Oatey 31014 Pipe Cement 16 oz Regular-bodied Clear PVC Cement

Product Description

OATEY 31014 pipe cement is a regular-bodied clear PVC cement for PVC pipe and fittings. Recommended for pipe up to 3" diameter, it may be used for DWV and Schedule 40 pressure lines for potable water. This cement flows freely and sets up quickly and is designed for application temperatures from 40 deg. F. to 90 deg. F.

• Regular cement for PVC pipe and fittings
• Recommended for pipe up to 3" diameter
• Flows freely and sets up quickly

Product Highlights

This clear PVC cement is NSF and UPC approved and exceeds ASTM D-2564 standards. Ideal for potable water, pressure pipe, conduit, and DWV applications.

Product Information

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 31014
• Country of Origin: US

Technical Specifications

• MPN: 31014
• ItemID: OAT31014
• UPCCode: 038753310145
• Manufacturer: Oatey SCS
• Brand: Oatey
• UOM: Each
• ProductCategory: Plumbing
• ProductSegment: PVC Pipe Chemicals
• ProductLine: Pipe Cement
• Type: Regular-bodied clear PVC cement
• Size: 16 oz
• Application: For use on PVC pipe and fittings up to 4" for DWV
• Style: Sets up quickly
• Pkg Quantity: 24.0
• Container Size: 16 Ounce
• Pipe Size: 4 Inch Diameter (Schedule 40), 2 Inch Diameter (Schedule 80)
• Bonding Temperature: 40 to 110 Deg F
• Applicable Standard: UL, ASTM, NSF/ANSI
• Odor: Solvent
• Physical State: Liquid
• Boiling Point: 151 deg F
• Flash Point: -4 Deg F
• Vapor Density: 2.5
• Relative Density: 0.91 +/- 0.02
• UNSPSC Code: 31201617
• Product Type: BONDING_ADHESIVES
• Product Group: Home Improvement
• Model / MPN: Oatey - 31014
• Number of Items: 1.0
• Material: PVC
• Viscosity: 80 - 500 cPs
• Standards/Certifications: ASTM D2564, NSF 61 certified, SCAQMD 1168/316A, UL Greenguard, IAPMO, UPC listed
• Composition: 25 - 40% Methyl Ethyl Ketone, 10 - 25% Cyclohexanone, Furan, Tetrahydro, 5 - 15% Acetone, Polyvinyl Chloride
• Container Type: Can
• Curing Time: 5 - 6 min at 30 - 50 deg F
• Evaporation Rate: 5.5 - 8
• Flammability Limit: 1.8% Lower, 11.8% Upper
• Form: Translucent Liquid
• Item Name: PVC Solvent Cement
• Shelf Life: 3 years
• Temperature Rating: 40 - 110 deg F
• VOC: Less Than 510 g/L
• Vapor Pressure: 145 mm Hg at 20 deg C
• Appearance: Clear Liquid
• Density: 7.47 +- 0.2 lbs/gallon
• Dissolve In: Tetrahydrofuran
• Solubility In Water: Negligible
• Specific Gravity: 0.90 +/- 0.02 @ 20 Degrees C
• Density (Vapor): (Air = 1) 2.5
• Pressure (Vapor): 145 mmHg @ 20 Degrees C
• Volatile Components: 84-88%
• Cement Color: Clear
• Body Type: Regular
• For Material Type: PVC
• Series: Regular
• For Maximum Pipe Diameter: 4 in
• Working Time: 2 min
• Minimum Operating Temperature: 40 ��F
• Maximum Operating Temperature: 110 ��F
• Standards: ASTM D2564; BAAQMD Method 40
• For Application Type: For Drain, Waste, and Vent Pipe; Potable Water
• Full Cure Time: 6 min
• Odor/Scent: Solvent
• Setting Time: 6 to 7 min
• Lap Shear Strength: 250 psi (2 hr)/500 psi (16 hr)/900 psi (72 hr)
• Setting: 6 to 7 min at 30 to 50 deg F/4 to 5 min at 50 to 70 deg F/1 to 3 min at 70 to 90 deg
• Standard/Approvals: ASTM D2564|IAPMO Listed|NSF 61 for PW|DWV and Sewer Waste|BAAQMD Method 40|CARB Compliant|IAPMO File No. 1912|Massachusetts Compliant|OTC Compliant|SCAQMD 1168/316A|UL Greenguard Gold|UPC Listed
• Net Content: 16 oz
• Drying Time: 15 min
• Flammability Rating: 3
