Product Description

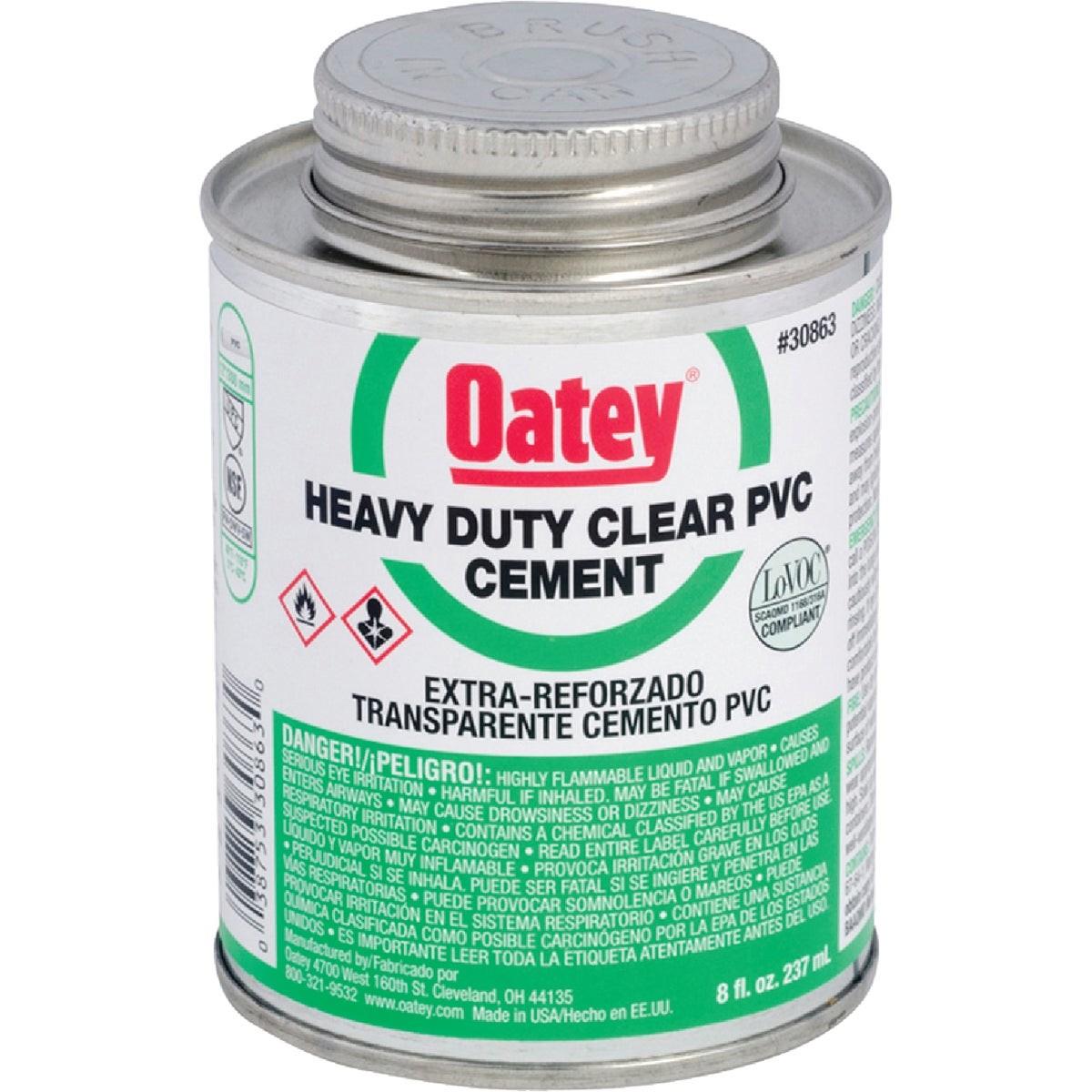

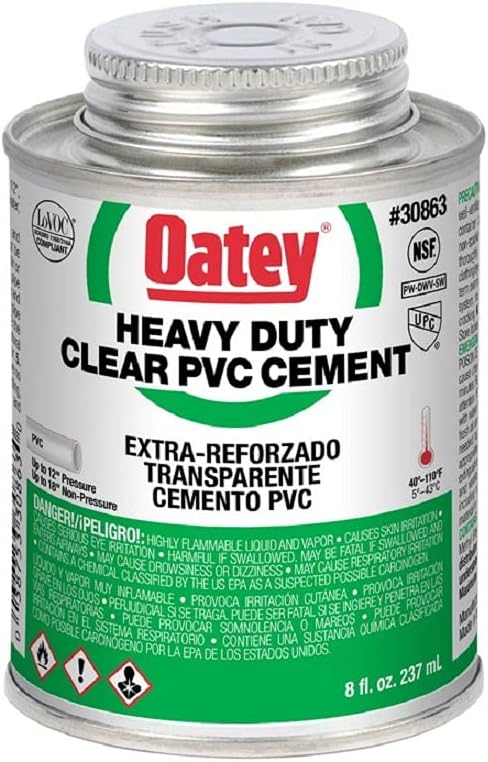

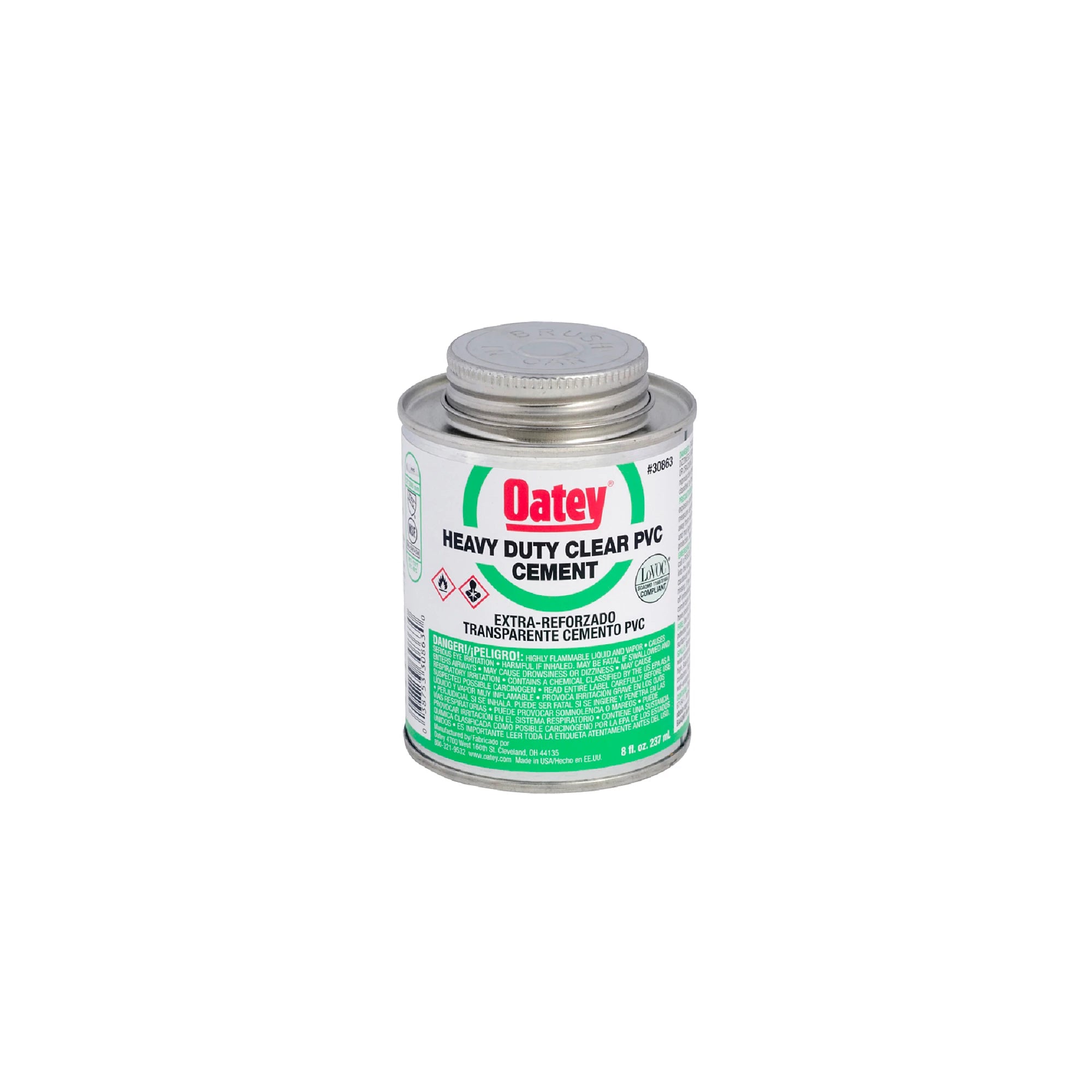

The OATEY 30863 is a heavy-duty, heavy-bodied clear cement. Recommended for use on PVC pipe and fittings up to 12-inch diameter for Schedule 40 and Schedule 80 potable water pressure pipe, gas, conduit, drain waste, and vent pipe. Flows freely and provides a thick layer of cement on the pipe. Helps to fill gaps in larger diameter pipe and loose fitting joints.
- Heavy-duty, heavy-bodied clear cement
- Recommended for use on PVC pipe and fittings up to 12-inch diameter for Schedule 40 and Schedule 80 potable water pressure pipe, gas, conduit, drain waste, and vent pipe

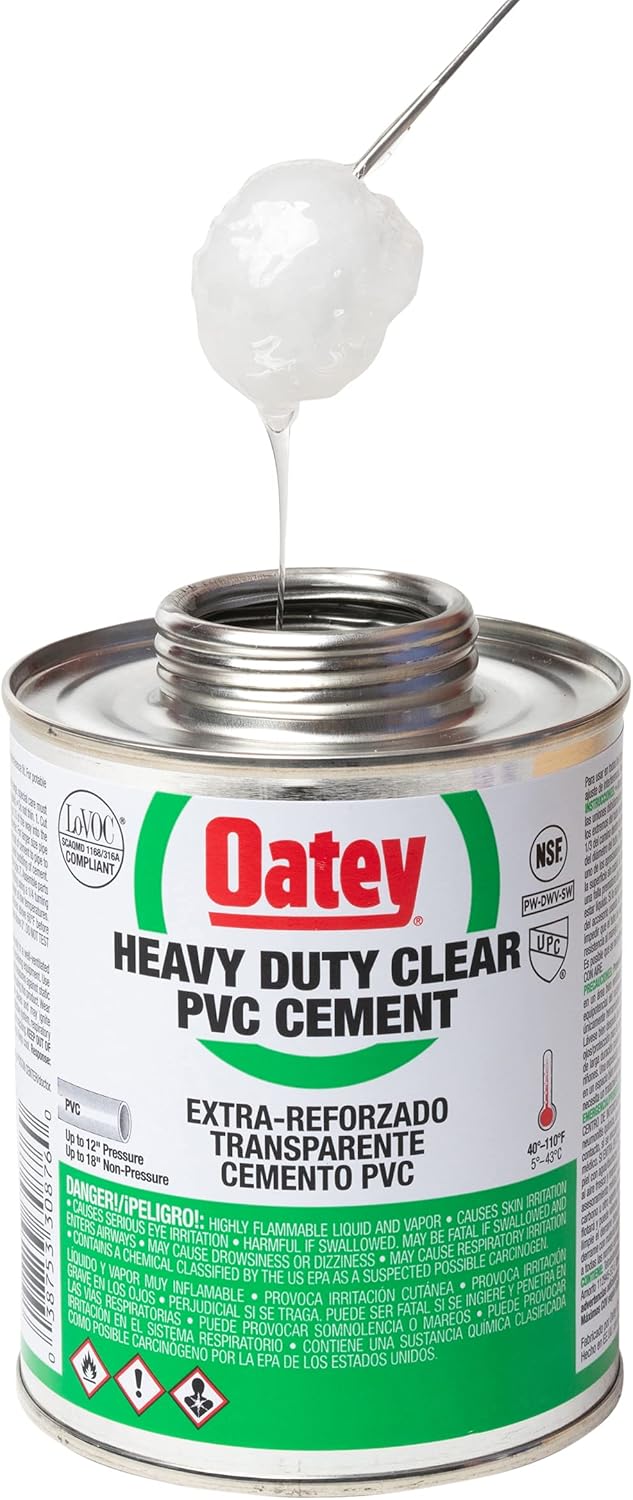

- Flows freely and provides a thick layer of cement on the pipe
Product Highlights
This clear PVC cement is NSF listed and exceeds ASTM D-2564 standards. Apply at temperatures 40 to 110 Deg F.
Product Information
Standard Information
-
Brand: OATEY
-
Manufacturer Part Number: 30863
-
Country of Origin: USA
Technical Specifications
-
MPN: 30863
-
Brand: Oatey
-
UOM: Each
-
ProductCategory: Plumbing
-
ProductSegment: PVC Pipe Chemicals
-
ProductLine: Pipe Cement
-
Size: 8 oz
-
Type: Heavy Duty
-
Style: Recommended for ALL grades and types of PVC pipe & fittings, potable water and DWV
-
For Use With: Upto 12 in Dia Schedule 40/80 PVC Pipe and Fittings
-
Odor/Scent: Solvent
-
Composition: Furan, Tetrahydro, 2-Propanone, Cyclohexanone, Polyvinyl Chloride, Methyl Ethyl Ketone, Colloidal Silicon Dioxide
-
Setting Time: 4 to 5 min
-
Curing Time: 2 hr
-
Temperature Range: 40 to 110 deg F
-
Container Type: Can
-
Pipe Size: 12 Inch Diameter
-
Bonding Temperature: 40 to 110 Deg F
-
Application: ABS Plastic, PVC, CPVC Pipe and Fitting, Potable Water, Pressure Pipe, Conduit and DWV
-
Applicable Standard: ASTM D2564, NSF 61, IAPMO, SCAQMD 1168/316A, BAAQMD 40, UPC, ISO 9001
-
Physical State: Liquid
-
Odor: Solvent
-
Flash Point: 14 to 23 Deg F
-
Boiling Point: 151 Deg F
-
Vapor Pressure: 145 Millimeter Hg at 20 Deg C
-
Density: 2.5 (Vapor), 0.88 to 0.92 (Relative)
-
Viscosity: 1600 CP Minimum
-
VOC Content: 481 Gram per Liter
-
Shelf Life: 3 Year From Manufacturing Date
-
Material: PVC
-
Item Form: Liquid
-
Item Volume: 8 Fluid Ounces
-
Compatible Material: Plastic
-
Package Information: Can
-
Water Resistance Level: Waterproof
-
Container Size: 8 oz
-
Form: Liquid
-
Evaporation Rate: 5.5 - 8
-
Relative Density: 7.86 Plus/Minus 0.2 lb/gal
-
VOC: Less Than 510 g/L
-
Vapor Density: 2.5
-
Standards/Certifications: ASTM D2564, NSF 61 certified, SCAQMD 1168/316A, UL Greenguard, IAPMO, UPC listed
-
Series: Heavy Duty
-
Working Time: 2 min
-
Full Cure Time: 5 min
-
For Material Type: PVC
-
Maximum Viscosity: 1,600 cps
-
Minimum Viscosity: 0 cps
-
For Application Type: For Drain, Waste, and Vent Pipe, Potable Water
-
For Maximum Pipe Diameter: 18 in
-
Operating Temperature Range: 40 Degrees F to 110 Degrees F
-
Maximum Operating Temperature: 110 Degrees F
-
Minimum Operating Temperature: 40 Degrees F
-
Specific Gravity: 0.88 - 0.92
-
Dry Time: 1 - 2 MIN At 70 - 90 DEG F
-
Temperature Rating: 40 - 110 DEG F
-
Industry Standards: NSF Standard 61 For PW, DWV And Sewer Waste, UPC IAPMO Certified, Meets California South Coast Air Quality Management District SCAQMD 1168/316A Or BAAQMD Method 40, Meets ASTM D-2564
-
Nominal Capacity: 8 oz
-
Packing Type: Can
-
Applicable Materials: PVC
-
Application Method: Natural Bristle Brush/Roller
-
Mixing Style: Stir/Shake
-
Net Content: 8 oz
-
Shear Strength: 250 to 900 psi
