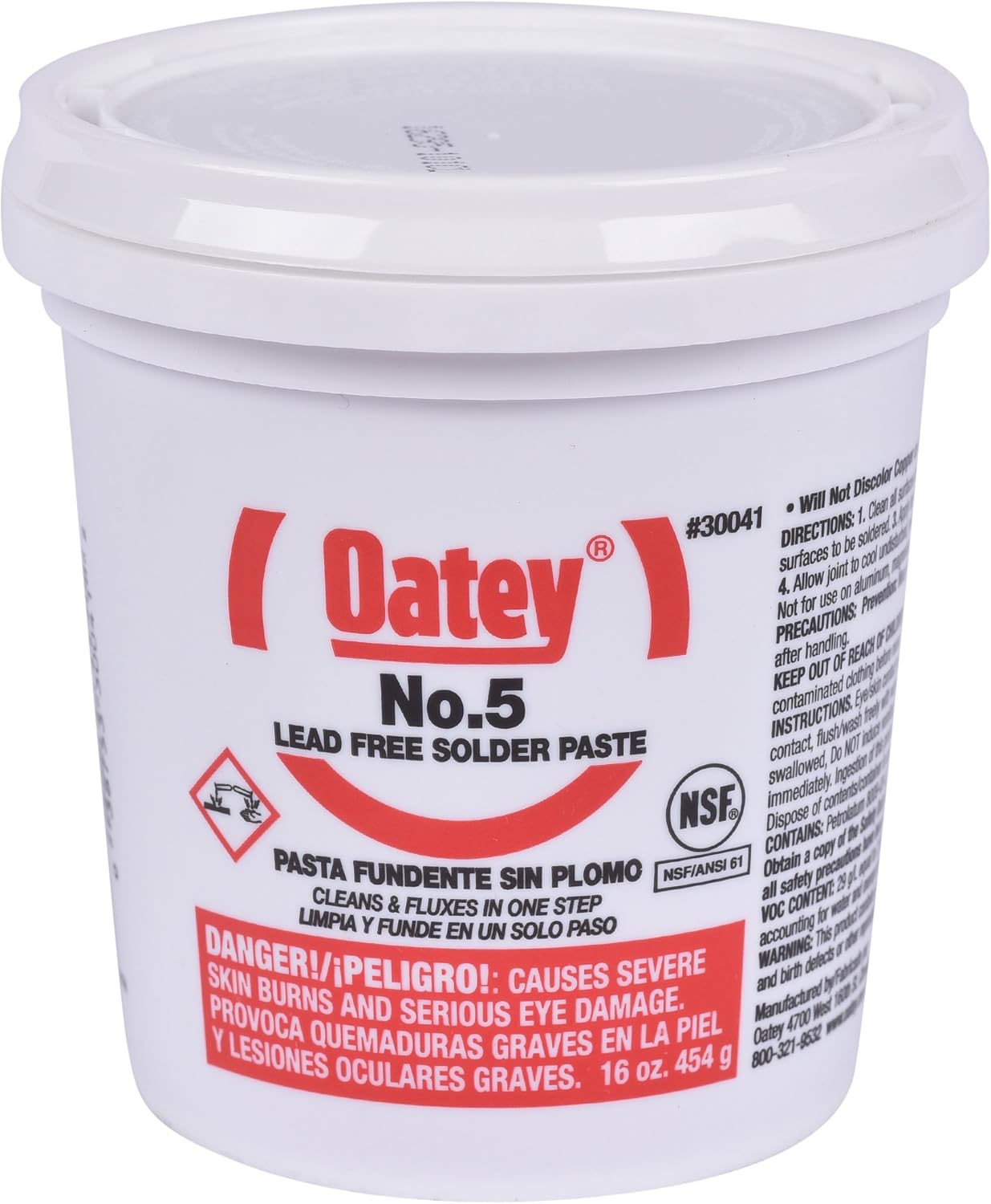

Product Description
The OATEY 30041 Paste Flux is designed to provide superior wetting properties for better solder flow. This paste flux cleans and fluxes copper piping to provide uniform solder flow. It is effective on all metals, except aluminum and stainless steel, and compatible with common plumbing solder alloys.
- Effective on all metals except aluminum and stainless steel
- Compatible with all common plumbing solder alloys
- 100% lead-free paste flux cleans and fluxes copper piping
Product Highlights
This petrolatum-based flux is safe for use in potable water applications and prevents copper piping from turning green. Includes brush for easy flux application.
Product Information
Standard Information
-
Brand: OATEY
-
Manufacturer Part Number: 30041
-
Country of Origin: United States
Technical Specifications
-
Item Model Number: 30041
-
Part Number: 30041
-
Size: 16-Ounce
-
Item Package Quantity: 1.0
-
Finish: Other
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Unit^Instruction Guide
-
Type: Solid, Paste
-
Capacity: 16 Ounce
-
Metal Used On: Copper, Brass, Zinc, Galvanized Iron, Tin/Copper Coated Metal
-
Compliant Specification: NSF 14/61, ISO 9001
-
Application: Potable Water, Plumbing Solder, Piping
-
Additional Information: Lead-Free
-
pH Value: 3 to 4
-
Flash Point: 540 Deg F
-
Boiling Point: 638 Deg F
-
Vapor Density: Less Than 1
-
Solder Temperature Range: 400 to 700 Deg F
-
Relative Density: 1.1
-
Viscosity: 20000 - 40000 CP
-
VOC Content: 29 Gram per Liter
-
MPN: 30041
-
Brand: OATEY
-
Container Capacity: 16 oz
-
Container Type: Jar
-
Form: Paste
-
Maximum Active Temperature: 464 Degrees F
-
Flux Series: No. 5
-
Flux Type: Petroleum-Based
-
For Material Type: All Metals Except Aluminum, Magnesium and Stainless Steel
-
For Solder Type: Lead Free, Leaded, Tin/Antimony, Tin/Lead
-
Standards: NSF 14, NSF 61
-
Clean Up Type: Flux Remover
-
Working Range (Deg. F): 400 Degrees to 700 Degrees
-
Applicable Materials: Copper, Brass, Zinc, Galvanized Iron and Tin or Copper-Coated Metal
-
Temperature Rating: 400 to 700 deg F
-
pH Range: 3 to 4
-
Composition: Petrolatum, Zinc Chloride, Water, Ammonium Chloride
-
Sub Brand: No. 5
-
Item Name: Flux
-
Shelf Life: 2 YR
-
VOC: 29 g/L
-
FinishColor: Amber
-
Model: 30041
-
Manufacturer: OATEY
-
Part #: 552281
-
Material: Petrolatum, Zinc Chloride, Ammonium Chloride
-
Product Type: Flux
-
Physical Form: Paste
-
Catalog Number: 30041
-
Color/Finish: Amber
-
Specifications Met: NSF 14, 61
-
Applicable Standard: NSF
-
Series/Model: No.5
-
Specific Gravity: 1.1
-
Industry Standards: NSF Certified To Standard 61, Complies To CA And VT Lead Legislation
-
PH: 3 - 4
-
Brazing & welding flux type: Petroleum
-
Features: Lead Free
-
Rec. use: Cleaning
-
Net Content: 16 oz
-
Base Type: Petrolatum
-
Compositions: Ammonium Chloride, Petrolatum, Water, Zinc Chloride
-
Flammability Rating: 0
-
GSA Approved: No
-
IAPMO Listed: No
-
NSF: NSF 61
-
NSF Certified: Yes
-
Pipe Compatibility: Metal
-
Collection: No. 5�
-
CARB OTC LEED Compliant: Yes
