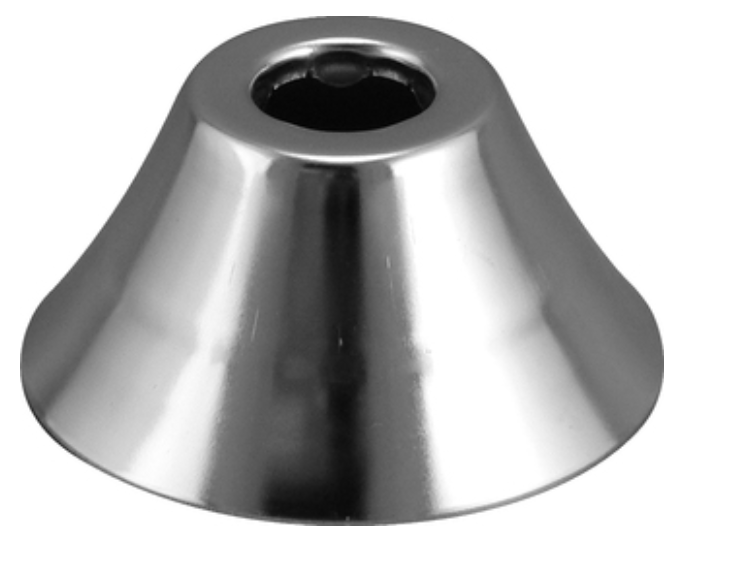

Oatey 1109 Bell Escutcheon 3/8 in Ips X 1/2 in Chrome

Product Description

The OATEY 1109 is a bell escutcheon designed to provide a clean, finished appearance where pipes exit walls or floors. It fits a 3/8 inch IPS pipe and seats over 1/2 inch copper tubing, making it a standard trim component in residential and light commercial plumbing installations. The chrome finish delivers a polished look suited to exposed supply lines in kitchens, bathrooms, and utility spaces. Plumbers and pipefitters install this escutcheon during finish plumbing to conceal rough wall openings around supply stops and angle valves.

This escutcheon is used wherever a 3/8 inch IPS connection meets a 1/2 inch copper supply line at the wall. Typical applications include under-sink supply stops, lavatory supplies, and toilet angle valves in residential construction and remodel work. Its bell-style profile provides broader wall coverage than a flat escutcheon, helping to conceal oversized or irregular wall cutouts.

Key Features

• Bell-style profile provides wider wall coverage for concealing rough pipe openings
• Fits 3/8 inch IPS pipe with 1/2 inch copper tubing seat
• Chrome finish for a clean, polished appearance on exposed supply lines
• Designed for finish plumbing trim-out in residential and light commercial settings

Compatibility

Designed as an OEM-style trim component for 3/8 inch IPS x 1/2 inch copper plumbing connections. Suitable for use with standard angle stop valves and supply line installations at the wall.

Installation Notes

A licensed plumber typically installs this escutcheon during finish trim-out after rough-in is complete. Shut off the water supply to the affected line before making any supply stop connections. Slide the escutcheon onto the pipe before connecting the valve or fitting so it can seat flush against the wall surface. Follow all applicable IPC and local plumbing code requirements for trim and finish work.

Technical Specifications

• Pipe Size (IPS): 3/8 inch
• Tubing Size (Copper): 1/2 inch
• Style: Bell
• Finish: Chrome

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 1109
