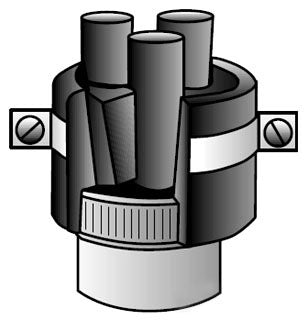

O-Z/Gedney DR-2002-2 Cable Support

Product Description

The O-Z/Gedney DR-2002-2 Cable Support is designed for various indoor electrical applications. This product supports non-armored cables and is suitable for use with rigid or IMC conduit. It accommodates conductors ranging from eighteen to four hundred KCMIL. The device features a tapered split body for secure installation and is ideal for vertical conduit positions.

• Accommodates multiple conductor sizes.
• Constructed from durable molded canvas bakelite and zinc plated steel.
• Approved for UL 514B and CSA C22.2 standards.

Product Highlights

The O-Z/Gedney DR-2002-2 Cable Support is essential for organizing and securing cables indoors, offering versatility in size and compliance with safety standards.

Product Information

Standard Information

• Manufacturer: O-Z/Gedney
• Catalog Number: DR-2002-2

Technical Specifications

• Conduit Type: Rigid/IMC
• Conduit Position: Vertical
• Conductor Size: 18 to 750 KCMIL (copper/aluminum)
• Cable Type: Non-Armored
• Number of Conductors: 5
• Size: 3-1/4 inch Dia x 2-1/4 inch H
• Material: Molded canvas bakelite, zinc plated steel, stainless steel
• Approval Standards: UL 514B, CSA C22.2
