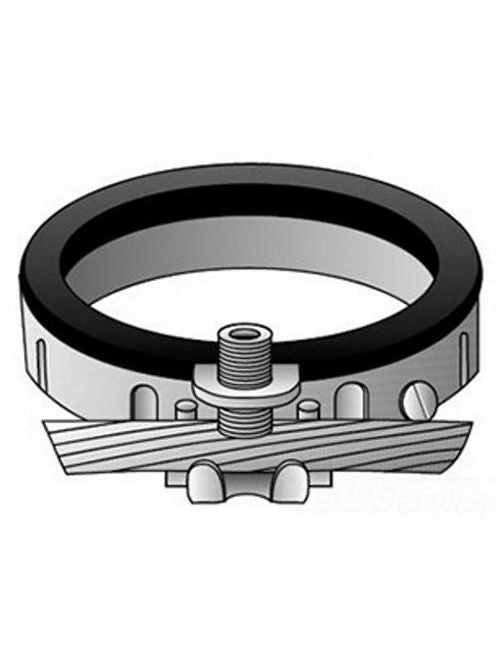

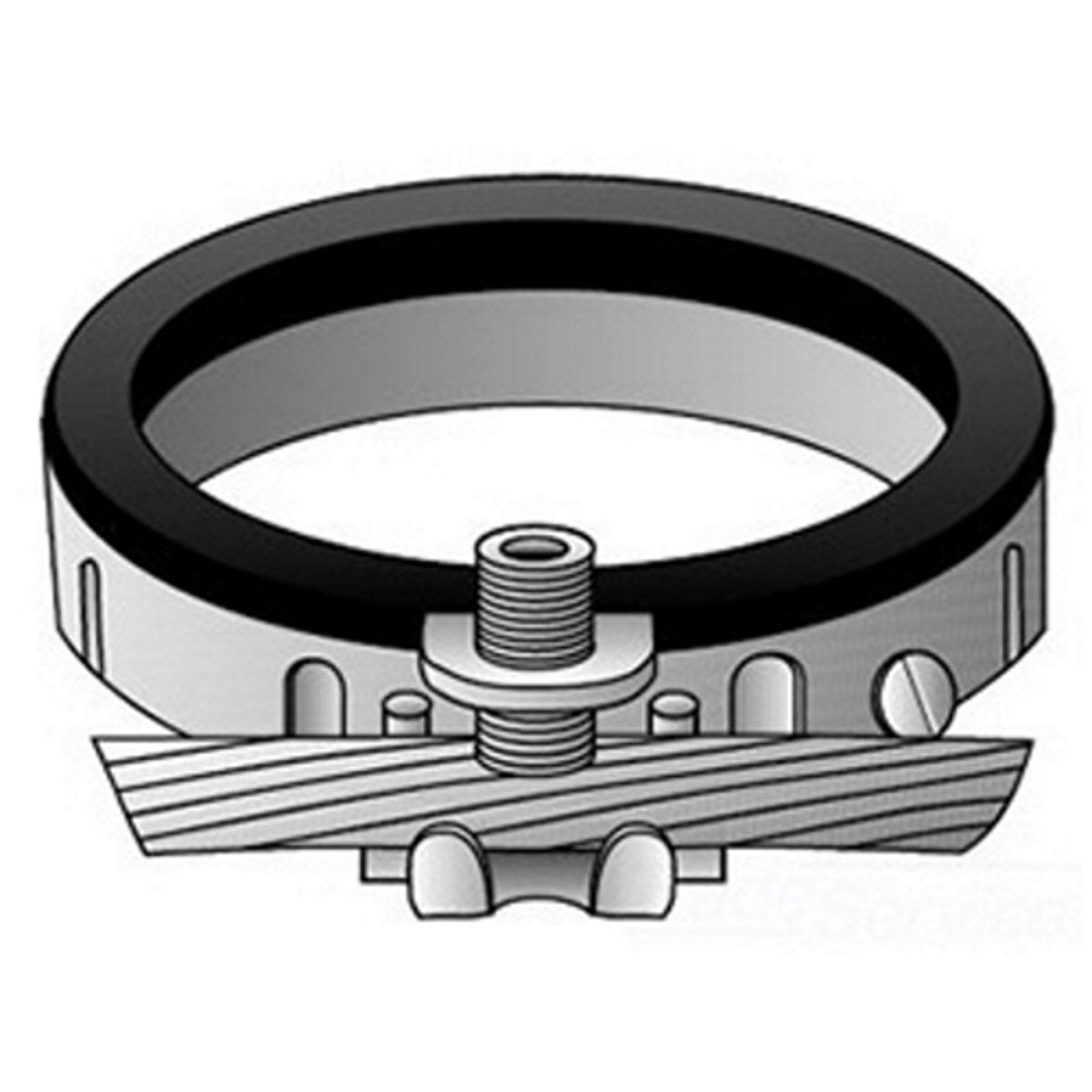

O-Z/Gedney ABLG-1104 Insulated Grounding Bushing 1 IN

Product Description

The O-Z/Gedney ABLG-1104 is a one-inch insulated grounding bushing designed to provide safety and reliability in electrical installations. Made from a copper-free aluminum body, this product features stainless steel screws for durability and a set-screw connection for secure grounding. Suitable for threaded rigid conduit and IMC, it can handle a wire range from fourteen to four AWG.

• Size: 1 IN
• Temperature Rating: 150°C
• Outside Diameter: 1-5/8 IN

Product Highlights

This grounding bushing is built to protect insulated conductors from abrasion. It helps maintain voltage gradient integrity between the conductors and ground, especially during mechanical stress.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: O-Z/Gedney Co.

Technical Specifications

• Catalog Number: ABLG-1104
• Material: Copper-Free Aluminum Body
• Connection: Set-Screw
• Applications: For Threaded Rigid Conduit and IMC
• Grounding Wire Range: 14 - 4 AWG
• Turning Radius: 1-3/8 IN
• UPC: 783126011258
• GTIN: 00783126011258
