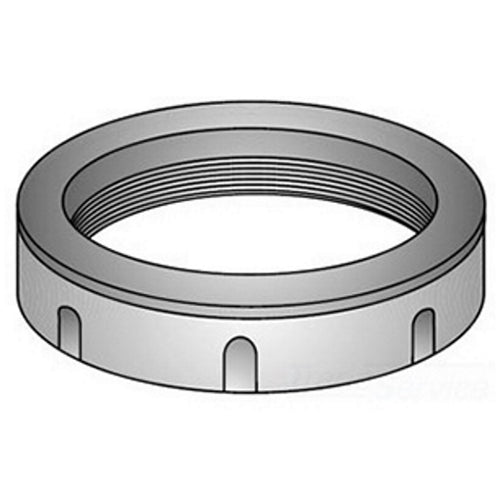

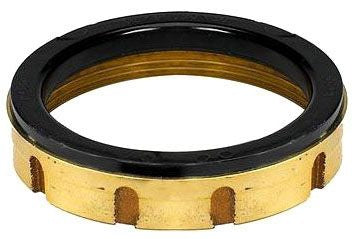

O-Z/Gedney AB-75 3/4 IN Insulated Bushing

Product Description

The O-Z/Gedney AB-75 is a three-quarter inch insulated bushing made of copper-free aluminum. This product features a threaded connection and operates at a temperature rating of one hundred fifty degrees Celsius. It has an outside diameter of one and three-eighths inches and a width of five-eighths inches. This insulated bushing is ideal for use with threaded rigid conduit and intermediate metal conduit (IMC).

• Threaded connection for easy installation.
• High durability due to aluminum material.
• Meets UL and CSA standards for safety and reliability.

Product Highlights

This insulated bushing provides a voltage gradient between the live conductors and ground, protecting insulated conductors from damage during installation.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Connection Type: Threaded

Technical Specifications

• MPN: AB-75
• Material: Aluminum
• Diameter: 1.38 IN
• Width: 0.625 IN
• Temperature Rating: 150 Deg C
• Approval Standards: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
