Nvent WMX6 Cable Hanger 1 3/4 inches Dia

Product Description

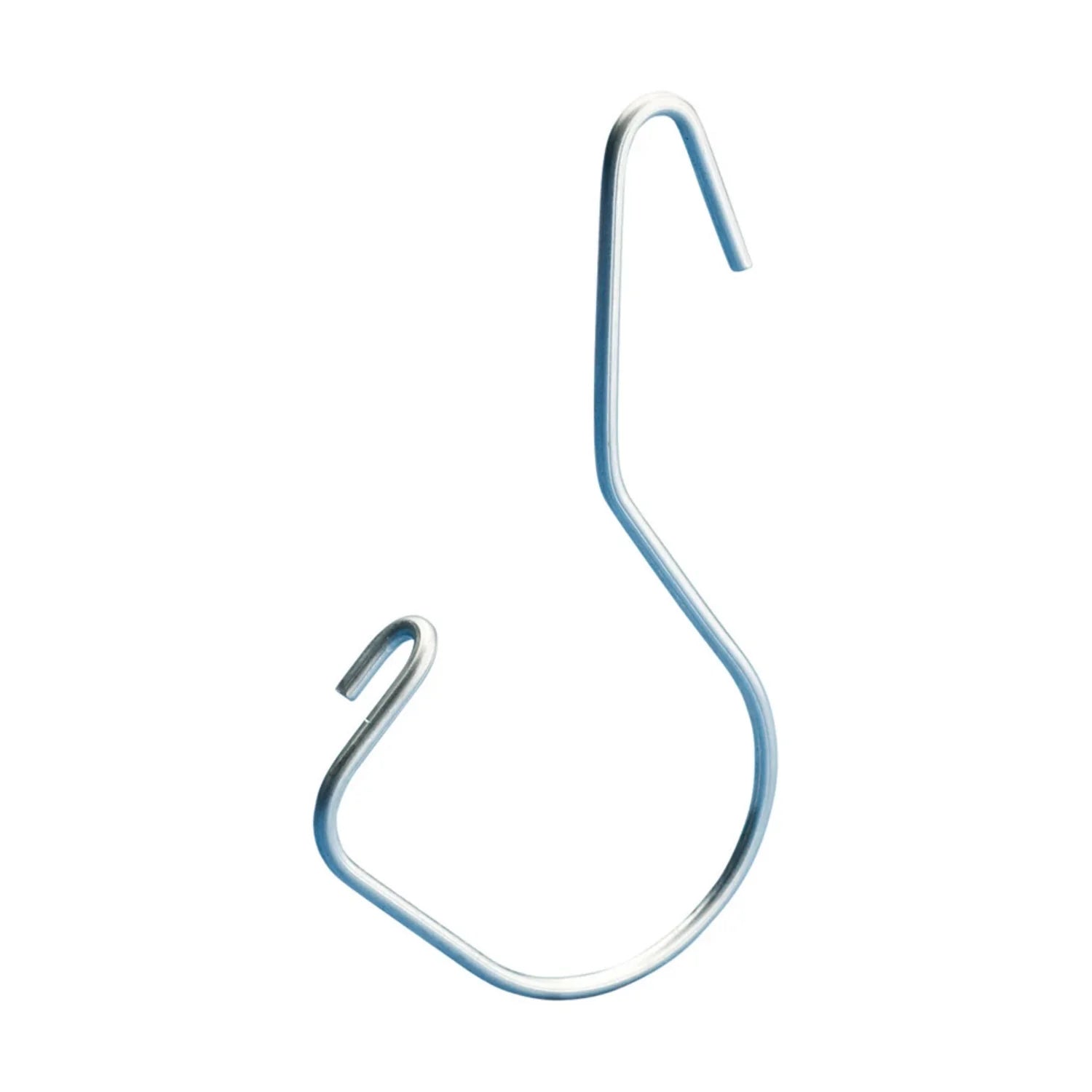

The NVENT WMX6 is a CADDY cable hanger with a 1 3/4" diameter. It is designed to bundle runs of MC or AC, and can be used with 4H series flange clips, DH2 / TDH deck clips, AO or AB nail brackets, VF14 vertical flange, AF14/122/123 Z purlin. It is made of steel with an electrogalvanized finish.

• Bundle runs of MC or AC
• Can be used with 4H series flange clips, DH2 / TDH deck clips, AO or AB nail brackets, VF14 vertical flange, AF14/122/123 Z purlin
• 1 3/4" diameter

Product Highlights

The NVENT WMX6 cable hanger is made of steel with an electrogalvanized finish and is suitable for electrical applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: WMX6
• Country of Origin: United States of America (the)

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Diameter ("): 1 3/4"
• Thickness (T): 1/8"
• Ultimate Static Load (F): 75lb
• UPC: 782856768005
• EAN: 0782856768005
• GTIN: 00782856345381
• UNSPSC: 39121701
• Country of Origin: United States of America (the)
• Load Capacity: 75 lb
• Outside Diameter: 1-3/4 in
• Series: WMX
• Suitable For Use With: 4H Series Flange Clip, DH2/TDH Deck Clip, AO/AB Nail Bracket, VF14 Vertical Flange and AF14/122/123 Z Purlin Clip
• Type: 6-Run Flexible
• Application: For Electrical Applications
• ECCN: EAR99
• Use With: 4H Series Flange Clips; AF14/122/123 Z Purlin; AO/AB Nail Brackets; DH2/TDH Deck Clips; VF14 Vertical Flange
• Max. Load: 60 lbs
