Nvent TDX100C120 Compact TDX Panel Protector 100 kA

Product Description

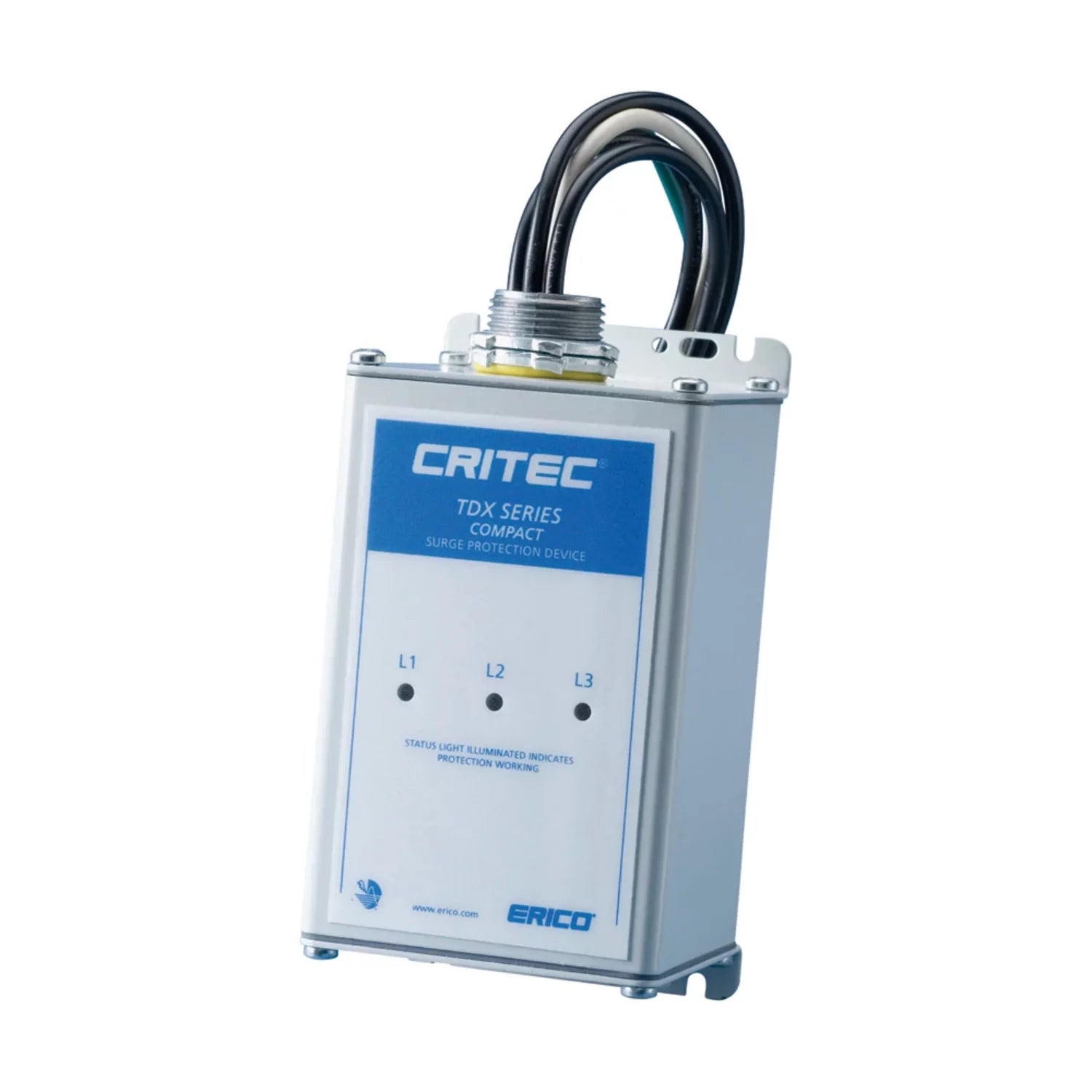

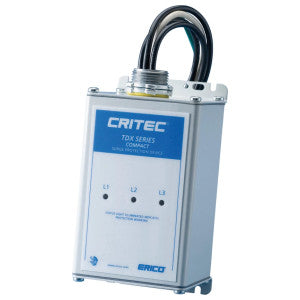

The Nvent TDX100C120 is a compact panel protector designed for surge protection in power distribution systems. This device uses TD Technology and features thermal protection with short circuit current fusing. It comes in a NEMA-4 enclosure, appropriate for flush mounting or installation in tight spaces. The TDX100C120 has LED indicators for status and voltage presence, an audible alarm, and voltage-free contacts for remote status monitoring. It offers a surge rating of up to 100 kA.

• Surge protection suitable for main-distribution panels
• Remote status monitoring via LED indicators and voltage-free contacts
• Compact design for various installation settings

Product Highlights

The Nvent TDX100C120 is essential for safeguarding electrical systems against surges, providing reliable protection for power distribution applications.

Product Information

Standard Information

• Brand: Nvent
• MPN: TDX100C120

Technical Specifications

• Nominal System Voltage (Un): 120/208 V
• Distribution System: 3Ph 4W+G
• Max Continuous Operating Voltage (Uc): 170/276 VAC
• Stand-off Voltage: 240/415 VAC
• Frequency: 50 - 60 Hz
• Short Circuit Current Rating (SCCR): 200 kA
• Nominal Discharge Current (In), IEC: 40 kA 8/20 μs
• Nominal Discharge Current (In), UL: 20 kA 8/20 μs
• Max Discharge Current: 100 kA 8/20 μs
• Impulse Current (Iimp), Per Mode: 12.5 kA 10/350 μs
• Voltage Protection Rating (VPR), L-N: 600 V @ 3 kA; 1200 V @ 20 kA
• Protection Modes: L-N; L-PE; N-PE
• Remote Contacts: Yes
• Status Indication: LED
• Technology: Over-current fusing; TD technology with thermal disconnect
• Enclosure Material: Metal
• Enclosure Rating: IP 65; NEMA-4
• Mounting Type: Flush
• Depth (D): 3.07
• Height (H): 6.02
• Width (W): 3.31
• Unit Weight: 1.76 lb
