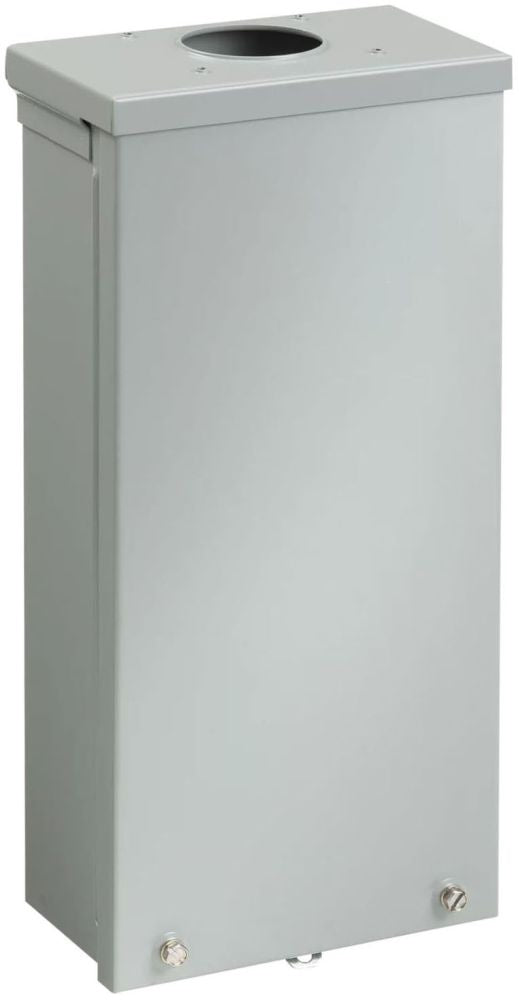

nVent TB3R403 HOFFMAN 3R Terminal Box 400 Amp 3 Ph

Product Description

The nVent HOFFMAN Terminal Box TB3R403 is designed for outdoor use in commercial and industrial settings. This terminal box features a robust 3-phase configuration with dimensions of twenty-seven inches in length, sixteen inches in width, and five inches in depth. It has a NEMA rating of 3R/IP32, suitable for protection against dust and rain. The box is made of steel and coated with galvanized/polyester powder paint, providing durability and resistance to corrosion.

• 400 Amp capacity
• 600 VAC rated
• Padlock locking mechanism

Product Highlights

This terminal box accommodates feeder taps to branch circuits and includes several installation features.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351014448

Technical Specifications

• Application: Outdoor, Commercial and Industrial Applications
• Color: Gray
• Depth: 5 in
• Electrical Ratings: 400 A, 600 VAC
• Finish: Galvanized/Polyester Powder Painted
• Length: 27 in
• Lock: Padlock
• Manufacturer Part Number: TB3R403
• Material: Steel
• NEMA Rating: NEMA 3R/IP32
• Series: S90B3
• Standards/Approvals: cUL Listed|CSA C22.2 File No. 94 File No. E27525|IEC 60529|UL 1773 File No. E256098|UL 50|UL 50E File No. E27525
• Type: 3-Phase
• Width: 16 in
