Nvent TAC1T1T Type TA weld metal mold (2 AWG solid run/tap horizontal tee)

Brand: NVENT
SKU: TAC1T1T
Availability: In Stock

Ships same day if ordered by 12 pm
$201.05
$201.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

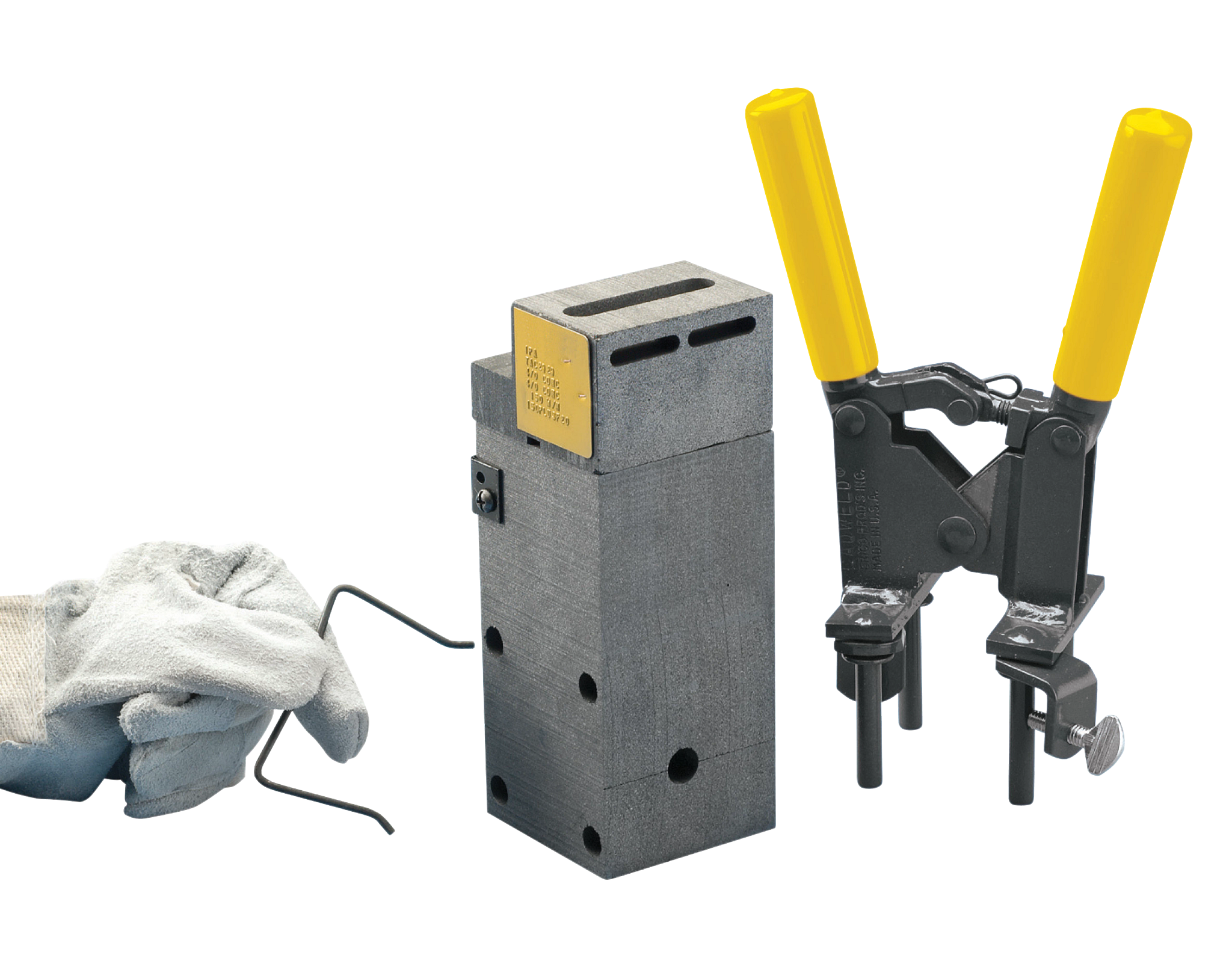

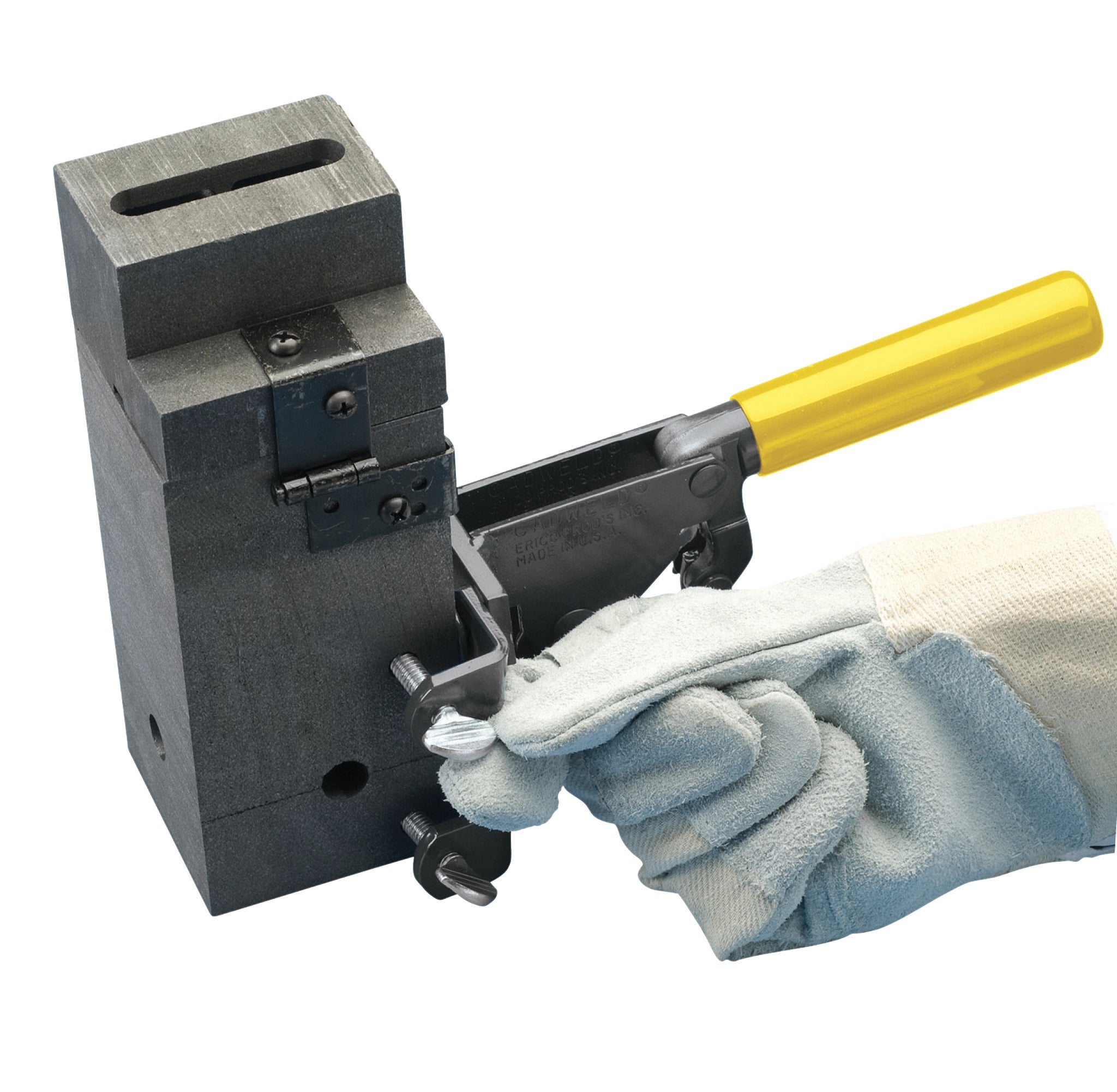

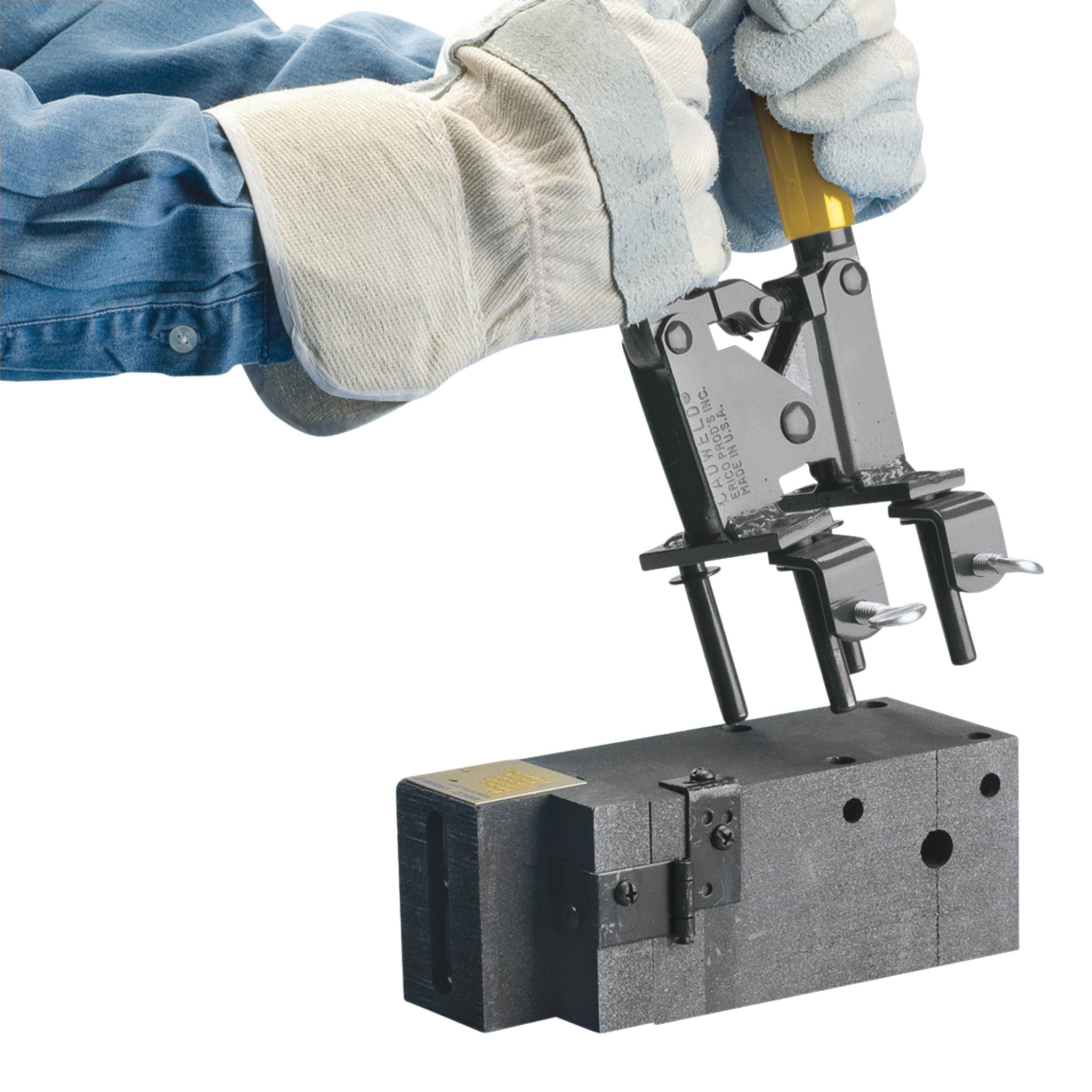

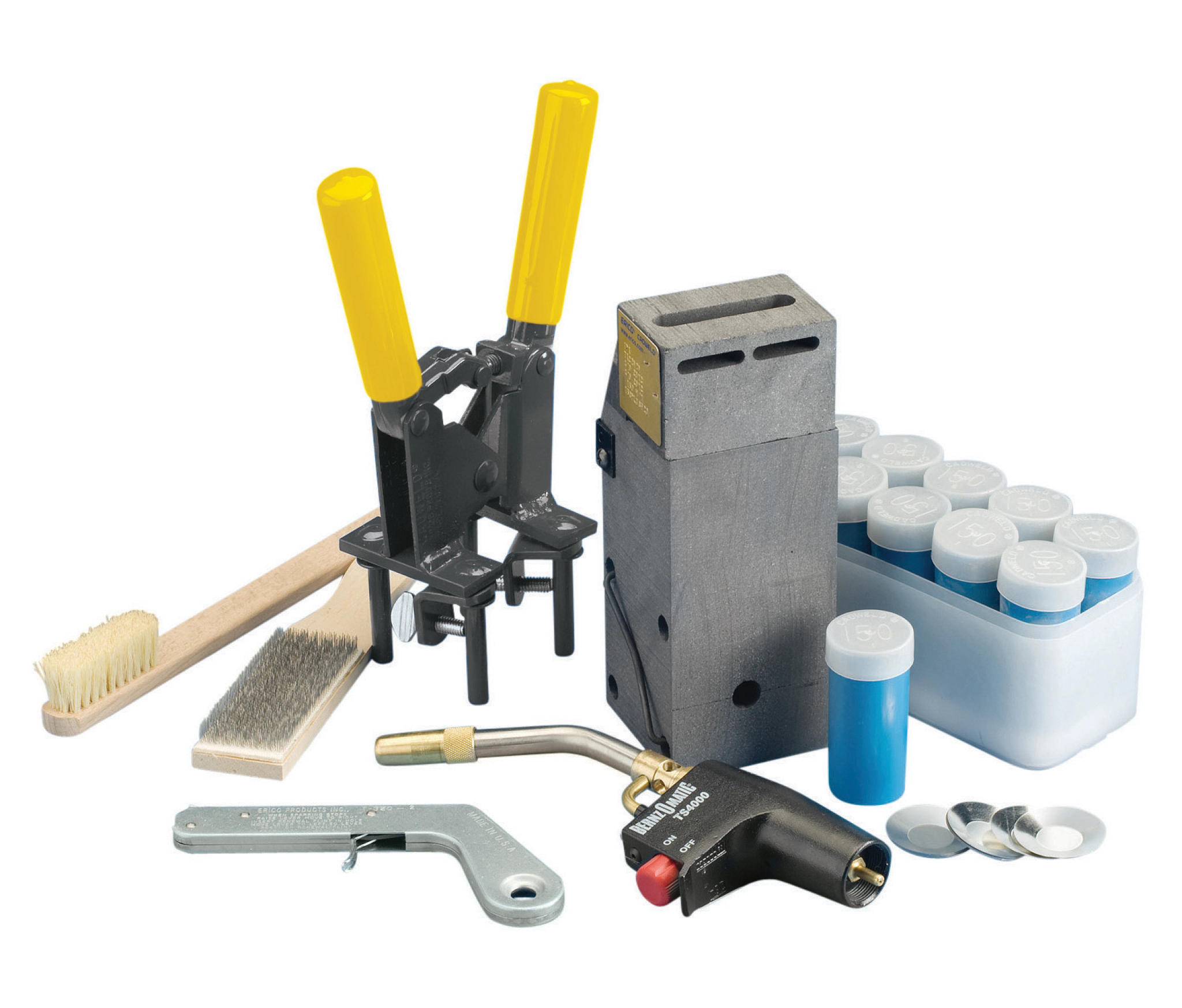

Nvent TAC1T1T is a Type TA nVent ERICO CADWELD graphite weld metal mold for cable-to-cable horizontal tee connections designed for 2 AWG ( #2) solid run/tap conductors. It forms a permanent, low-resistance molecular bond rated to the same current capacity as the conductor and accommodates a nominal 0.257 in conductor outer diameter. The mold is intended for grounding, bonding, and facility electrical protection using portable exothermic equipment.

  • Designed for 2 AWG (#2) solid run/tap conductors; nominal conductor outer diameter 0.257 in (6.53 mm).
  • Graphite Type TA horizontal split mold for cable-to-cable horizontal tee connections; mold price key C.
  • Uses welding material 45 or 45PLUSF20 and requires L160 handle clamp (both sold separately); connections are rated to conductor capacity and can be visually inspected.

Product Highlights

Horizontal TA exothermic mold for 2 AWG solid cable-to-cable connections; graphite construction; UL and CSA approvals.

Product Information

Standard Information

  • Brand: NVENT
  • Manufacturer Part Number: TAC1T1T
  • Country of Origin: UNITED STATES
Technical Specifications
Manufacturer Part Number
TAC1T1T
Brand
Nvent
Mold Family
Type TA
Product Type
Horizontal tee exothermic mold
Application
Facility electrical protection; grounding and bonding
Conductor Size
2 AWG solid (equivalent to #2 solid)
Conductor Outer Diameter (nominal)
0.257 in (6.53 mm)
Connection Type
Cable-to-cable
Mold Split
Horizontal
Material
Graphite
Mold Price Key
C
Handle Clamp
L160 (sold separately)
Welding Material
45 or 45PLUSF20 (sold separately)
Rated Current Capacity
Rated with the same current capacity as the conductor
Visual Inspection
Connections can be visually inspected
Standards/Approvals
ANSI/UL 467; UL/cULus/CSA file references provided by manufacturer
UPC
782856552604
EAN/GTIN
0782856552604
Country of Origin
United States
Weight
1 lb (454 g)
Standard Packaging Quantity
1
