Nvent SLK2L3LP System SLK Link SP SP Link Univ Sprt Sys 2 mm Wire 9.9 ft L 4 in Loop

Product Description

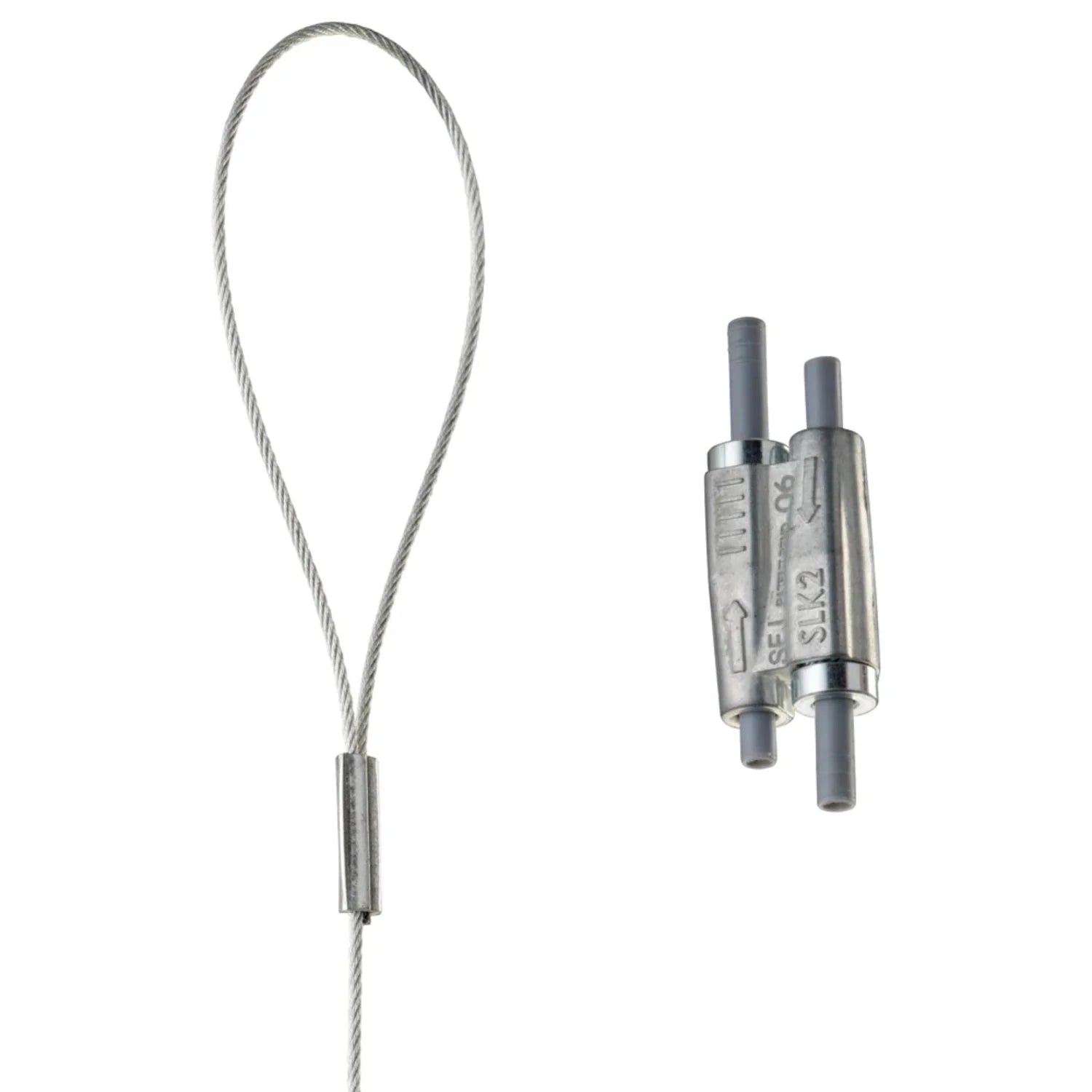

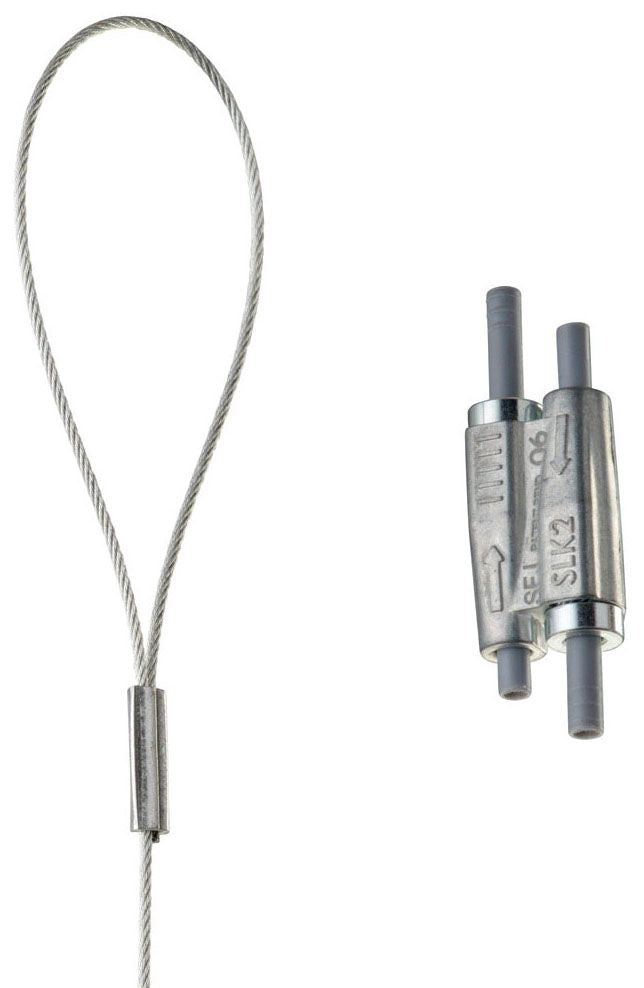

The nVent CADDY SLK2L3LP Speed Link SLK System is an overhead support solution designed for quick installation and easy adjustment. Constructed from polypropylene, steel, and zinc alloy with an electro-galvanized finish, it supports a 100 lb static load with a 5:1 safety factor. This system is suitable for various applications including ductwork, pipe, cable tray, lighting, and signage, attaching to structural building members. It includes a 2 mm diameter, 9.9 ft long wire with a 4-inch loop and a keyless locking device.

• Push/pull keyless release allows easy adjustments for precise positioning.
• Loop attaches directly to pipe, ductwork, or other hanging assemblies.
• Ideal for attaching to purlins, beams, and other structural members.

Product Highlights

Versatile overhead support solution with keyless locking device for quick installation and easy adjustment.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: SLK2L3LP
• Country of Origin: China

Technical Specifications

• Static Load: 100 lb
• Safety Factor: 5:1
• Wire Diameter: 2 mm
• Wire Length: 9.9 ft
• Loop Size: 4 in
• Locking Device Height: 2.15 in
• Locking Device Width: 0.75 in
• Locking Device Thickness: 0.5 in
• Material: Polypropylene, Steel, Zinc Alloy
• Finish: Electro-Galvanized
• Suitable For Use With: Speed Link Universal Support System
• Standards/Approvals: SMACNA HVAC-DCS Compliant, UL Listed, cUL Listed, cULus Listed
• Includes: Wire, Locking Device, Pre-Assembled Loop End Fitting
• Max Angle: 90°
• Country Of Origin: CHN
• UPC: 782856800330
• EAN: 8711893137835
• Product Type: Loop End Fitting
