Nvent SLK2L2LP spd link&loop 6.6 feet length 90 degree max angle

Product Description

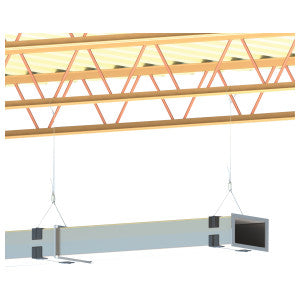

The NVENT SLK2L2LP is a CADDY® SPEED LINK SLK With Loop, featuring a 2.0mm wire rope diameter and a length of 6.6 ft. This versatile overhead support solution has a static load rating of 100 lbf. It is designed for quick installation and easy adjustment to various building structural elements, supporting applications like ductwork, pipe, cable tray, and lighting.

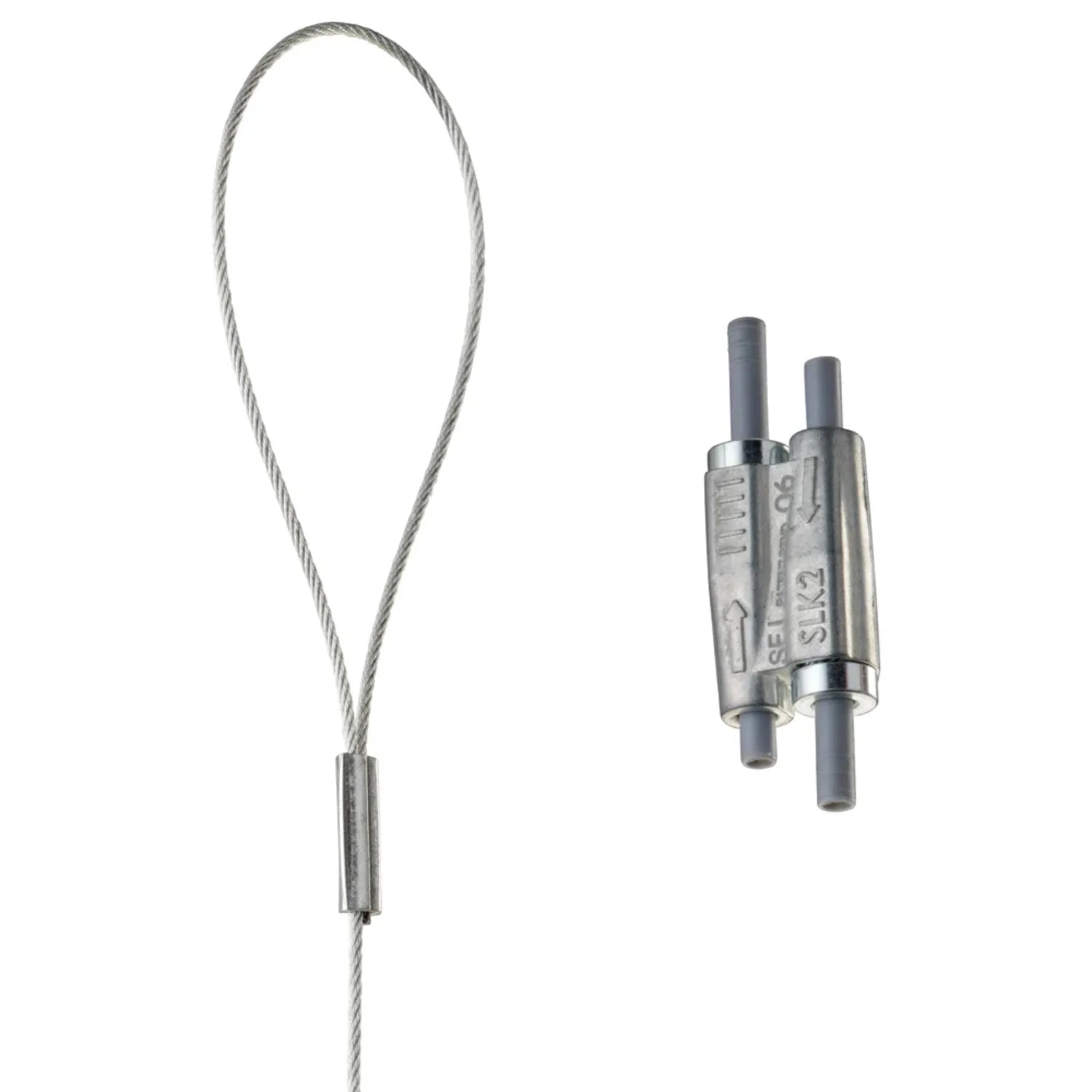

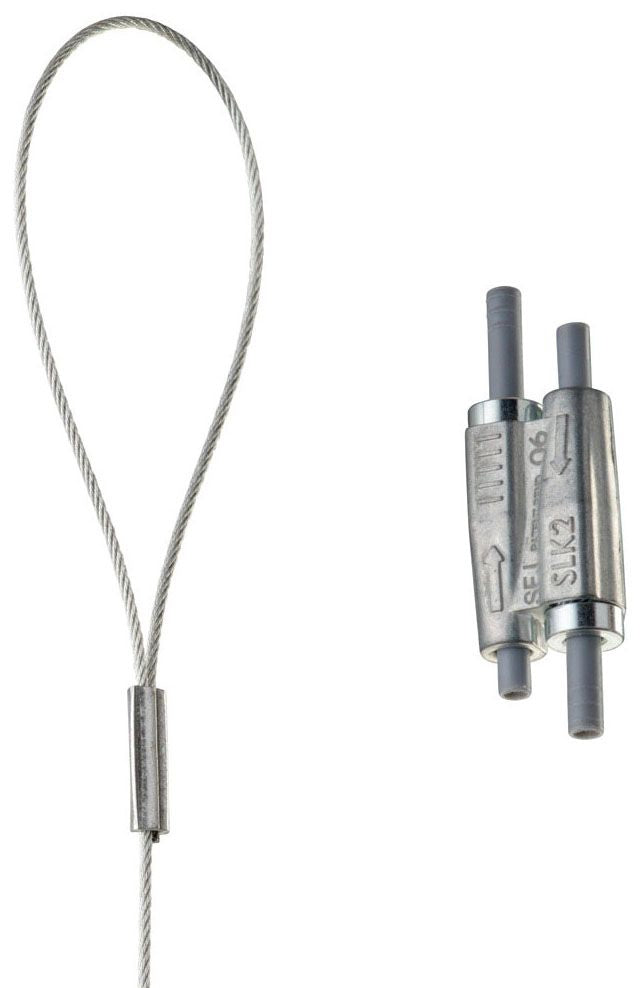

• Complete system includes wire, locking device, and pre-assembled loop end fitting.
• Easy and flexible solution for attachment to building structures.
• Wire rope wraps around structure and through loop for quick installation.

Product Highlights

Versatile overhead support solution, easy to adjust and quickly installs to various building structural elements.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: SLK2L2LP
• Country of Origin: China

Technical Specifications

• Buy Line: CAD
• Country Of Origin: CHN
• Weight: 0.0600
• Material: Steel;Polypropylene;Zinc Alloy
• Finish: Electrogalvanized
• Safety Factor: 5:1
• Wire Diameter: 2 mm
• Complies With: SMACNA HVAC-DCS
• Wire Length: 6.6'
• Loop Length: 4"
• Locking Device Height: 2.15"
• Locking Device Width: 3/4"
• Locking Device Thickness: 1/2"
• Max Angle: 90 ° Max
• Static Load: 100lbf
• Sub-Brand: CADDY
