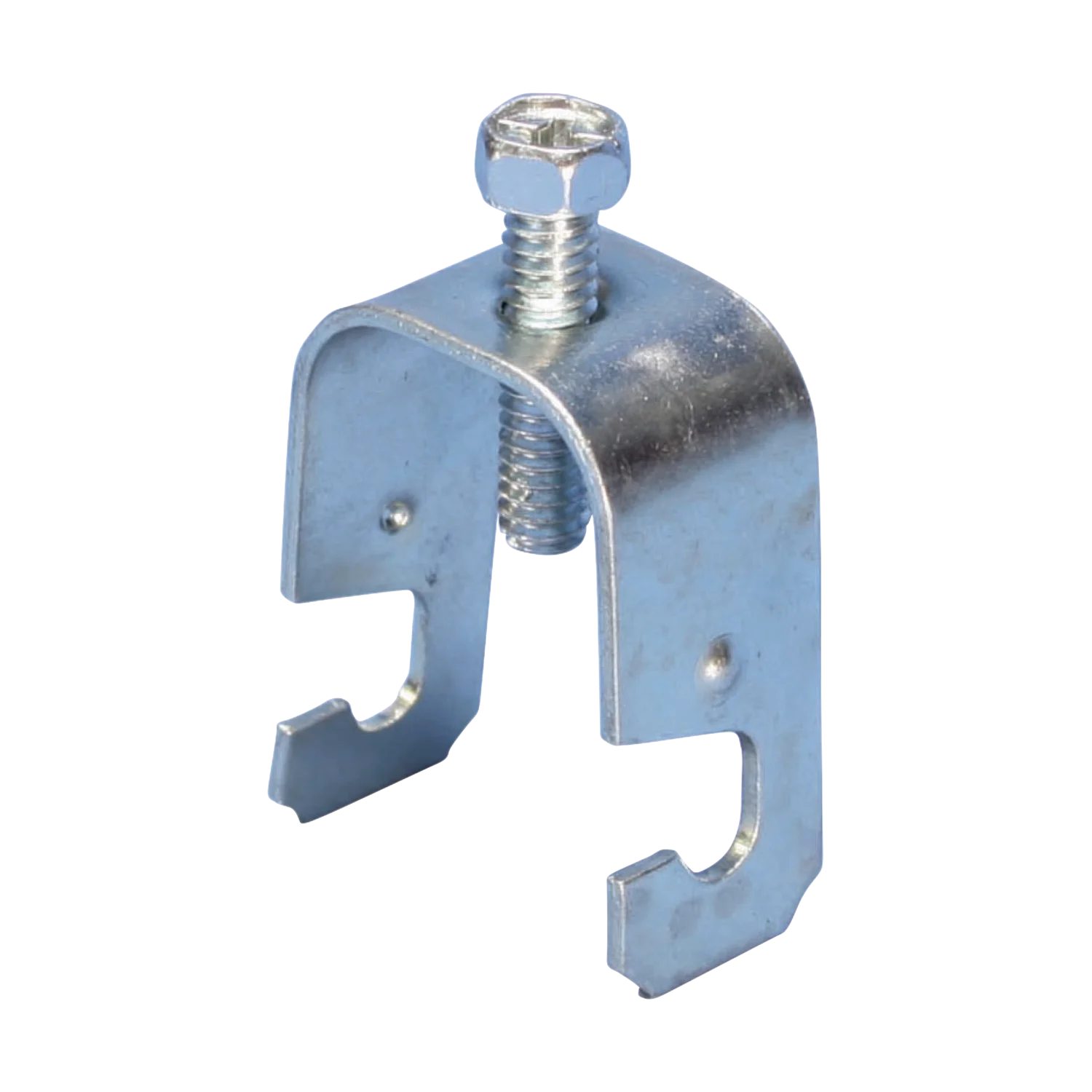

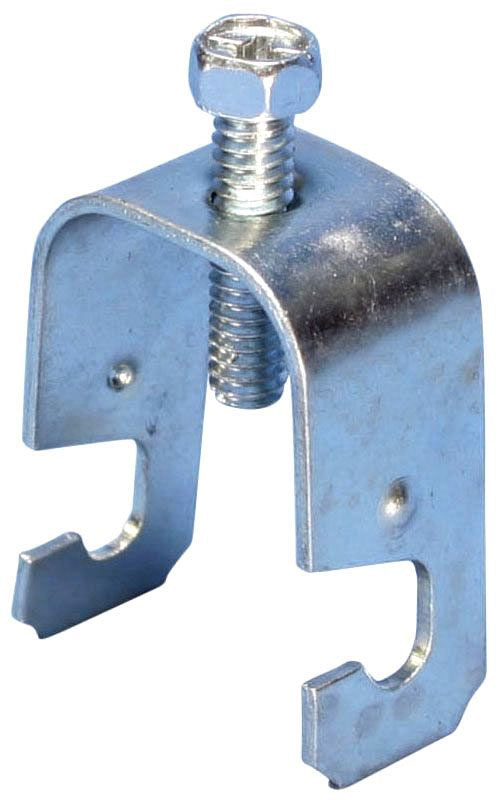

Nvent RGC Caddy Grid Wire Clamp 100/Case

Product Description

The nVent CADDY RGC clamp is designed for use with signal reference grid wire. It accommodates 8 to 4 AWG stranded conductors and 3/4 to 1 in diameter posts. This clamp provides a quick method to support a signal grid to computer floor pedestals.

• Provides a quick method to support a signal grid to computer floor pedestals
• Slots in fastener grip wire to provide positive contact with post
• Clamps grid wire directly to post allowing a low resistance connection across bare metal contacts

Product Highlights

Installs easily with a screwdriver or nut driver. Made of steel with an electro-galvanized finish.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: RGC
• Country of Origin: US

Technical Specifications

• Application: Datacom, Low Voltage and Electrical Applications
• Finish: Electro-Galvanized
• Manufacturer Part Number: RGC
• Material: Steel
• Specifications: 8 to 4 AWG Stranded Conductor, 3/4 to 1 in Dia, 0.146 to 0.28 in Dia
• Suitable For Use With: Signal Reference Grid Wire
• Conductor Size: #8 Stranded - #4 Stranded
• Diameter 1 ("): 3/4" - 1"
• Diameter 2 ("): 0.150" - 0.28"
• UPC: 782856792505
• EAN: 0782856792505
• Standard Packaging Quantity: 100
• Packing Quantity: 1
• Clamp Type: Signal Reference Grid Wire Clamp
• Installation: Screw-On U-Clamp
• AWG: 8-sol to 2-str
• Post Size: 3/4" - 1"
• Country of Origin: United States - Subject to change
