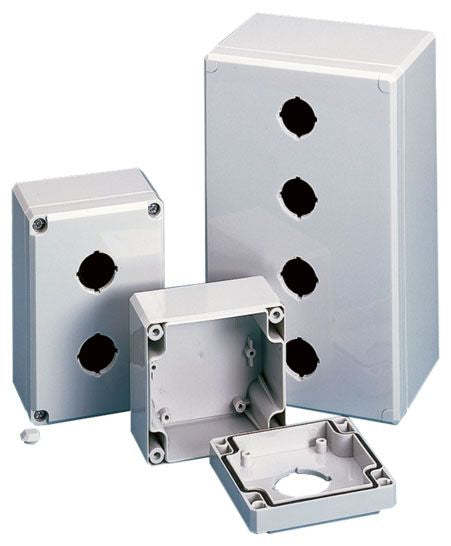

Nvent Q4PBPCDM 4 Pushbutton Enclosure

Product Description

The NVENT Q4PBPCDM is a 4-pushbutton enclosure designed to house and protect multiple control buttons in industrial and commercial electrical installations. The enclosure measures 193 millimeters long by 113 millimeters wide by 79 millimeters deep and weighs 0.93 pounds. It provides a structured, durable housing solution that keeps pushbutton controls organized, protected, and accessible for operators and maintenance personnel. Licensed electricians and control panel technicians are the primary installers of this type of enclosure in machine control, process control, and facility automation applications.

This enclosure is suited for residential, commercial, and light industrial environments where multiple control points need to be consolidated into a single housing. It accommodates 4 pushbutton stations, making it appropriate for start/stop, jog, or multi-function control stations. Typical installations include motor control panels, conveyor systems, pump stations, and HVAC equipment control interfaces where operator access to grouped controls is required.

Key Features

• 4-pushbutton capacity for consolidating multiple control points in one enclosure
• Compact footprint at 193 x 113 x 79 millimeters suits tight panel mounting locations
• Lightweight construction at 0.93 pounds for easy wall or surface mounting
• Designed for organized, protected pushbutton station installations

Compatibility

Designed as an OEM-style replacement or new-installation enclosure for 4-pushbutton control station configurations in commercial and industrial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize all associated circuits before mounting or wiring the enclosure. Verify that the enclosure dimensions and cutout pattern match the mounting surface and that all conduit or cable entry points are properly sealed for the installation environment. Do not exceed the enclosure's rated number of pushbutton stations.

Technical Specifications

• Number of Pushbutton Stations: 4
• Dimensions: 193 x 113 x 79 millimeters
• Weight: 0.93 pounds
• UPC: 78351015149

Standard Information

• Brand: NVENT
• Manufacturer Part Number: Q4PBPCDM
