Nvent Q1PBPCD Hof Pushbutton Enclosure 1PB x 30.5 mm

Product Description

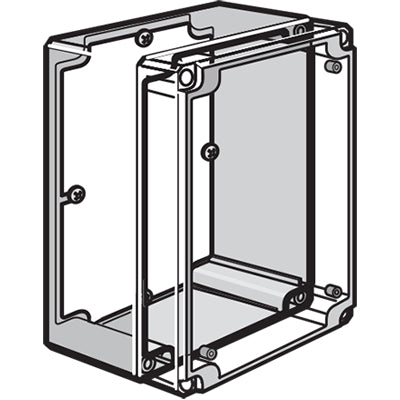

Nvent Q1PBPCD is a QLine D pushbutton enclosure designed to insulate and house 30.5 mm or 22.5 mm pushbuttons in hostile environments. The polycarbonate wall-mount housing measures 3.23 in L x 3.15 in W x 3.11 in D and includes a seamless foam-in-place gasket for watertight and dust-tight sealing. It is NEMA 4X/IP67 rated, features a screw cover with captivated stainless steel screws, molded internal mounting pads, and supplied mounting hardware.

• High-impact polycarbonate body and cover; contoured design with flush cover screws and removable screw caps
• NEMA 4X / IP67 rating with seamless foam-in-place gasket for watertight and dust-tight protection
• Wall-mount enclosure sized 3.23 in x 3.15 in x 3.11 in with panel cutout 2.17 in W x 2.68 in H and one pushbutton hole

Product Highlights

Wall-mount polycarbonate enclosure for one 30.5 mm (or 22.5 mm) pushbutton with NEMA 4X/IP67 protection and captive stainless steel cover screws.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: Q1PBPCD

Technical Specifications

• Manufacturer: nVent
• Manufacturer Part Number: Q1PBPCD
• Series: Q41
• Model / Catalog Number: Q1PBPCD
• Bulletin Number: Q41
• Dimensions: 3.23 in L x 3.15 in W x 3.11 in D
• Panel Cutout Size: 2.17 in W x 2.68 in H
• Material: High-impact polycarbonate
• Mounting Type: Wall
• Number of Outlets: 1
• Hole Size: 30.5 mm or 22.5 mm
• Cover Type: Screw cover with captivated stainless steel screws and removable caps
• Gasket: Seamless foam-in-place gasket
• NEMA Rating: NEMA 4X
• IP Rating: IP67
• Standards/Approvals: RoHS Compliant; cUL Listed per CSA C22.2 File No. 94; UL 508A File No. E61997; CSA File No. 42186; IEC 60529
• Mounting Hardware: Furnished
• Internal Features: Molded internal pads for mounting optional panels or rails
• Material Properties: Halogen-free
• Weight: 0.4 lb
• Finish: Smooth gloss
