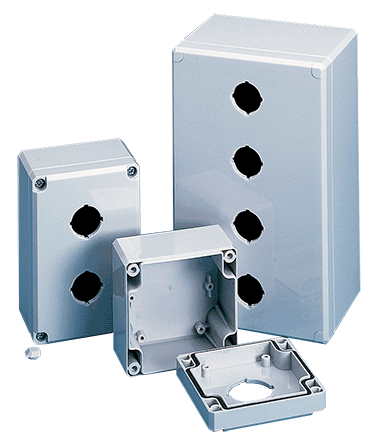

nVent Q1PBPCD HOF Pushbutton Enclosure

Product Description

The nVent Q1PBPCD HOF Pushbutton Enclosure is designed for insulating and housing pushbuttons in demanding environments. This enclosure provides a reliable solution for electrical applications requiring protection from water and dust.

• Constructed with high-impact polycarbonate material
• NEMA 4X/IP67 rating ensures durability in harsh conditions
• Wall mount design allows for flexible installation options

Product Highlights

The Q1PBPCD enclosure features a seamless gasket that provides a watertight and dust-tight seal, ensuring the safety of electrical components.

Product Information

Standard Information

• Brand: nVent
• Manufacturer Part Number: Q1PBPCD

Technical Specifications

• Application: For insulating and housing 30.5 mm or 22.5 mm pushbuttons in hostile environments
• Color: Light Gray
• Cover Type: Screw
• Depth: 3.11 inches
• Length: 3.23 inches
• Material: Polycarbonate
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP67
• Number of Outlets: 1
• Panel Size: 2.17 inches W x 2.68 inches H
• Series: Q41
• Standards/Approvals: RoHS Compliant, cUL Listed, IEC 60529, UL 508A File No. E61997
• Width: 3.15 inches
