Nvent PHSW6 Purlin Clamp w/Swivel 3/8 Rod

Product Description

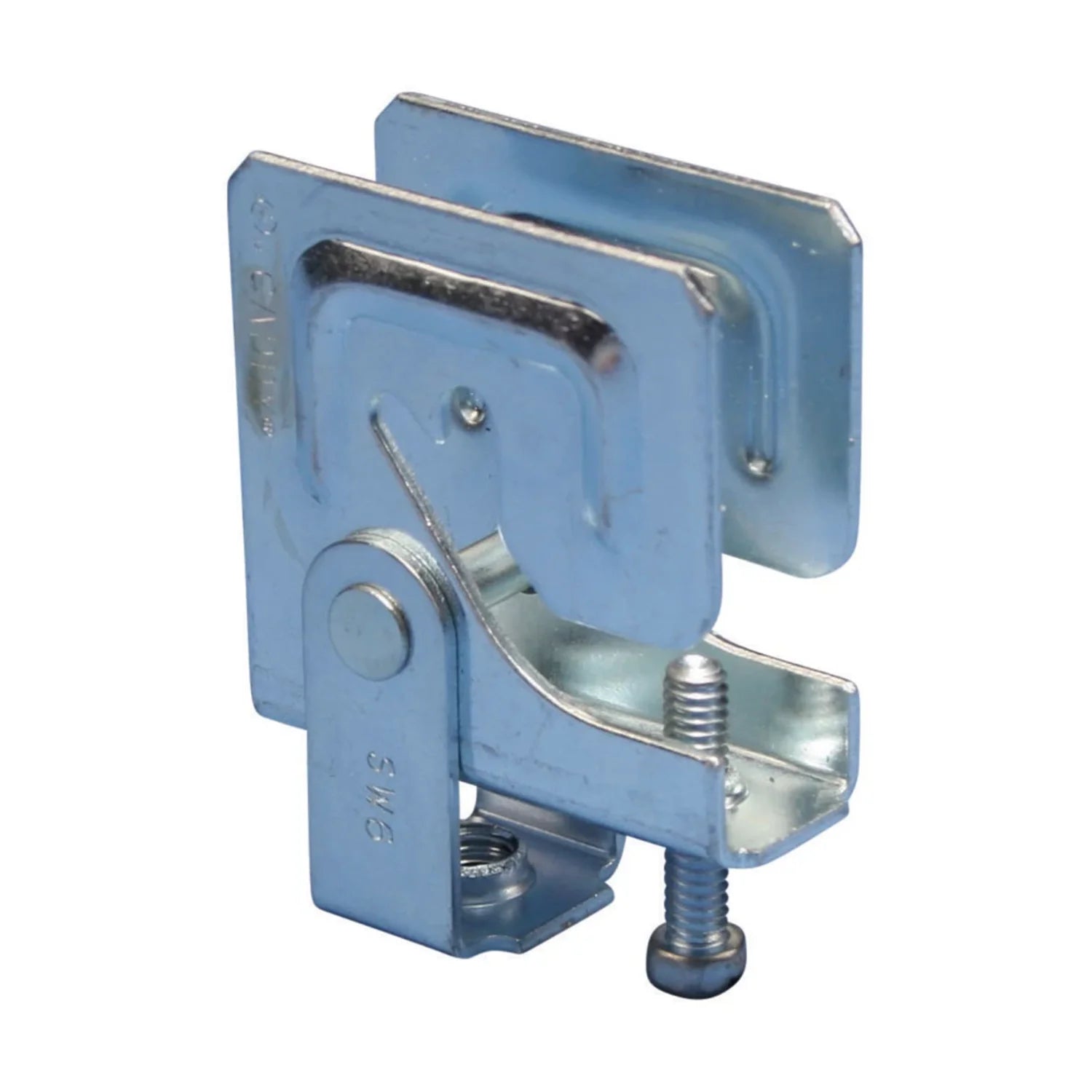

The nVent CADDY PHSW6 purlin clamp attaches to the bottom of purlins and beams to support threaded rods. It has a 3/8 in rod diameter and a 200 lb static load capacity. The swivel feature allows attachment to purlins under sloped roofs and accommodates a 1/4 in flange.

• Attachment to bottom of purlins and beams to support threaded rod
• Swivel feature option for attachment to purlins under sloped roofs
• 30 in-lb Torque

Product Highlights

The nVent CADDY PHSW6 is ideal for datacom, low voltage, electrical, fire sprinkler, HVAC, and plumbing applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: PHSW6
• Country of Origin: United States

Technical Specifications

• Application: Datacom and Low Voltage, Electrical, Fire Sprinkler, HVAC, Plumbing and Refrigeration Applications
• Finish: Electro-Galvanized
• Flange Size: 1/4 in
• Load Capacity: 200 lb Static
• Manufacturer Part Number: PHSW6
• Material: Steel
• Rod Diameter: 3/8 in
• Standards/Approvals: cULus DWMU7.E165703|CAN/CSA C22.2 No. 18.4-04|UL DWMU.E165703|ANSI/UL 2239
• Rod Size (RS): 3/8"
• Flange Thickness (FT): 1/4" Max
• B: 3/4" Min
• Static Load 1 (F1): 200lb
• Static Load 2 (F2): 160lb
• Nut Included: No
• Use With: Beams; Purlins
• Rod Size: 3/8 in.
• Flange Thickness: 1/4 in.
• Description: PURLIN CLAMP EG 3/8" W/SWIVEL
• Brand: nVent CADDY
• Vendor Part Number: PHSW6
• ECCN: EAR99
