Nvent NVENT-CCC0075 Insulated Strut Clamp 3/4 in Od

Product Description

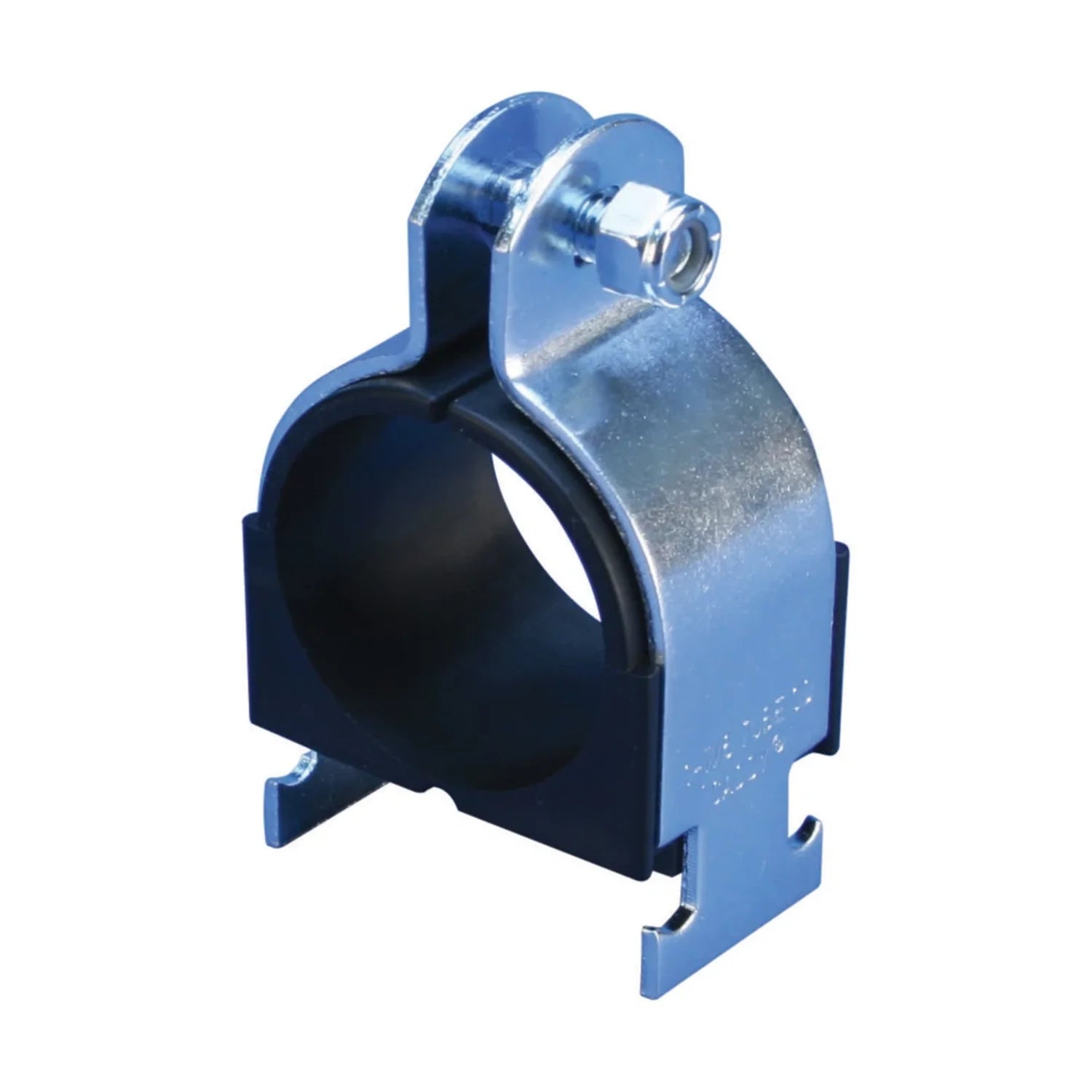

The NVENT NVENT-CCC0075 is a cushion clamp designed to secure pipe or tube directly to strut channel. Built from steel with a polypropylene cushion insert and a zinc chromate finish, it handles a 3/4 inch outer diameter pipe or a 5/8 inch copper tube size (CTS). The insulated cushion lining isolates the pipe from direct metal contact, reducing vibration transfer and preventing galvanic corrosion between dissimilar metals. Licensed plumbers and mechanical contractors install this clamp in pipe support applications where code requires the pipe to be isolated from its support structure.

This clamp is suited for residential and light commercial mechanical systems where copper or similarly sized tubing runs along strut channel support systems. Common applications include refrigerant lines, domestic water supply piping, and hydronic distribution runs routed through mechanical rooms, utility spaces, or along structural framing. The 5/8 inch CTS trade size makes it a direct fit for standard 3/4 inch OD copper tube commonly used in plumbing and HVAC piping systems.

Key Features

• Fits 3/4 inch OD pipe and 5/8 inch copper tube size (CTS)
• Steel construction with zinc chromate finish for corrosion resistance
• Polypropylene cushion insert isolates pipe from strut, reducing vibration and galvanic corrosion
• Pipe-to-strut mounting configuration for use with standard strut channel systems
• Compact profile: 1.12 inches length x 1.562 inches width x 1.77 inches height

Compatibility

Designed as an OEM-style replacement and standard-fit clamp for 3/4 inch OD or 5/8 inch CTS pipe and tube supported on strut channel framing systems.

Installation Notes

Installation is typically performed by licensed plumbers or mechanical contractors as part of a pipe support system. Shut off and depressurize the piping system before repositioning or replacing any pipe supports. Secure the clamp to strut channel using appropriate hardware rated for the load. Follow IPC and local mechanical code requirements for pipe support spacing and clamp placement.

Technical Specifications

• Pipe OD: 3/4 inch
• Copper Tube Size (CTS): 5/8 inch
• Length: 1.12 inches
• Width: 1.562 inches
• Height: 1.77 inches
• Material: Steel with polypropylene cushion insert
• Finish: Zinc chromate
• Mount Type: Pipe to strut

Standard Information

• Brand: NVENT
• Manufacturer Part Number: NVENT-CCC0075
