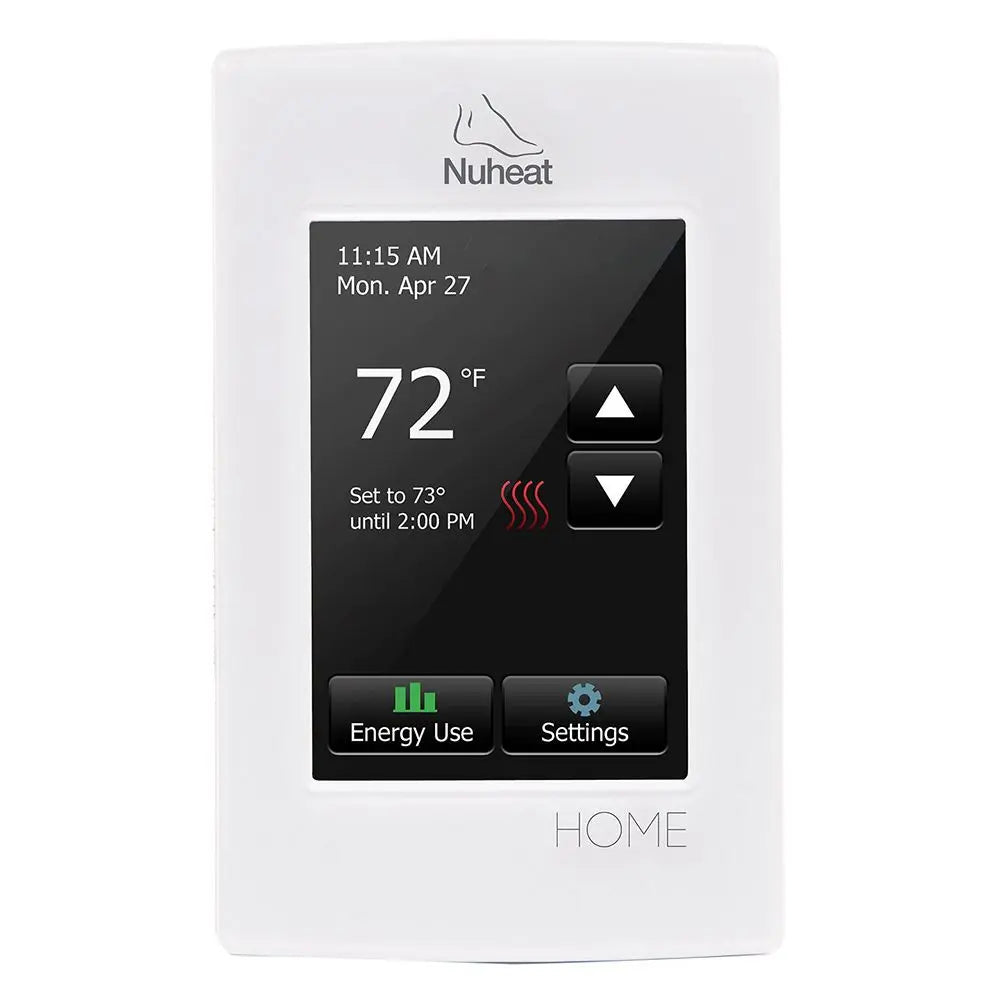

Nvent Nuheat AC0056 Home Programmable Touchscreen Thermostat

Product Description

The Nvent Nuheat AC0056 Home Programmable Touchscreen Thermostat is designed for electric floor heating systems. This thermostat includes a three point five inch color touchscreen display that allows users to monitor energy consumption and adjust settings.

• Dual-voltage compatibility with 120 V and 240 V.
• Built-in Class A G.F.C.I. for enhanced safety.
• Adaptive seven-day settings and manual temperature adjustment.

Product Highlights

This thermostat is suitable for various flooring types including tile, stone, laminate, and vinyl. It supports a maximum load of fifteen amps and provides options for floor and ambient air sensing.

Product Information

Standard Information

• Model: Home
• Supply Voltage: 120 V / 240 V

Technical Specifications

• Max Load: 15 A
• Power Rating: 1800 W @ 120 V; 3600 W @ 240 V
• GFCI Protection: Class A (5 mA trip level)
• Display Size: 3 inches high x 2 inches wide

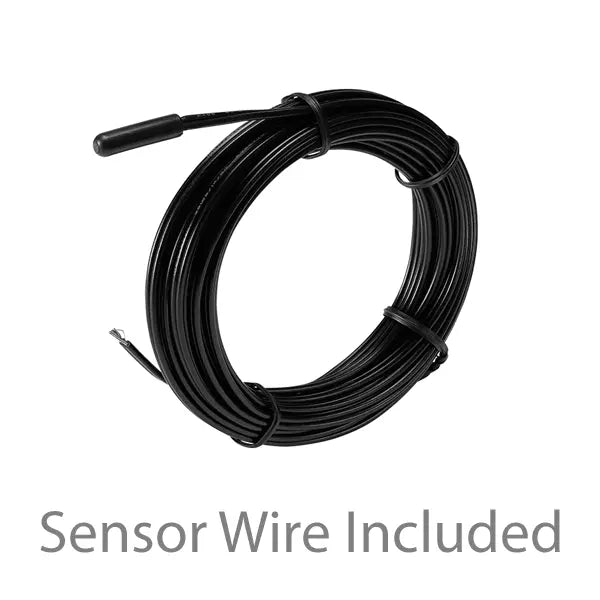

• Floor Sensor Length: 15 feet
• Manual Override: Yes
