Nvent LF430 Levelling Feet M12 67 x 48 x 48 mm

Product Description

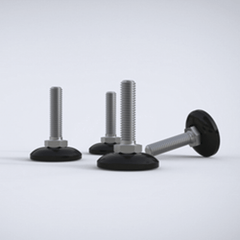

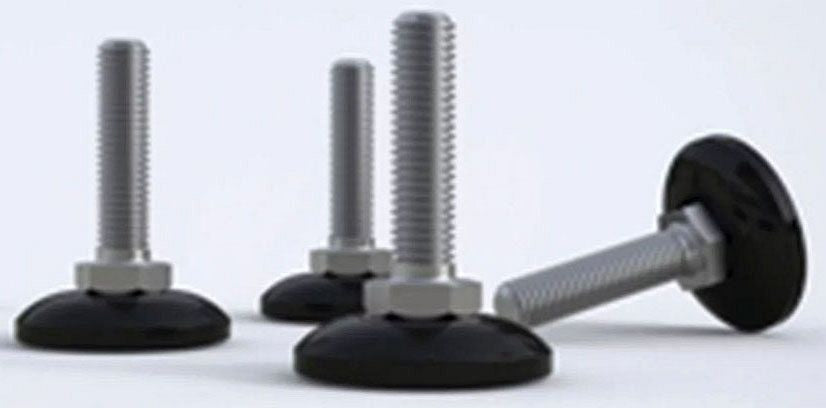

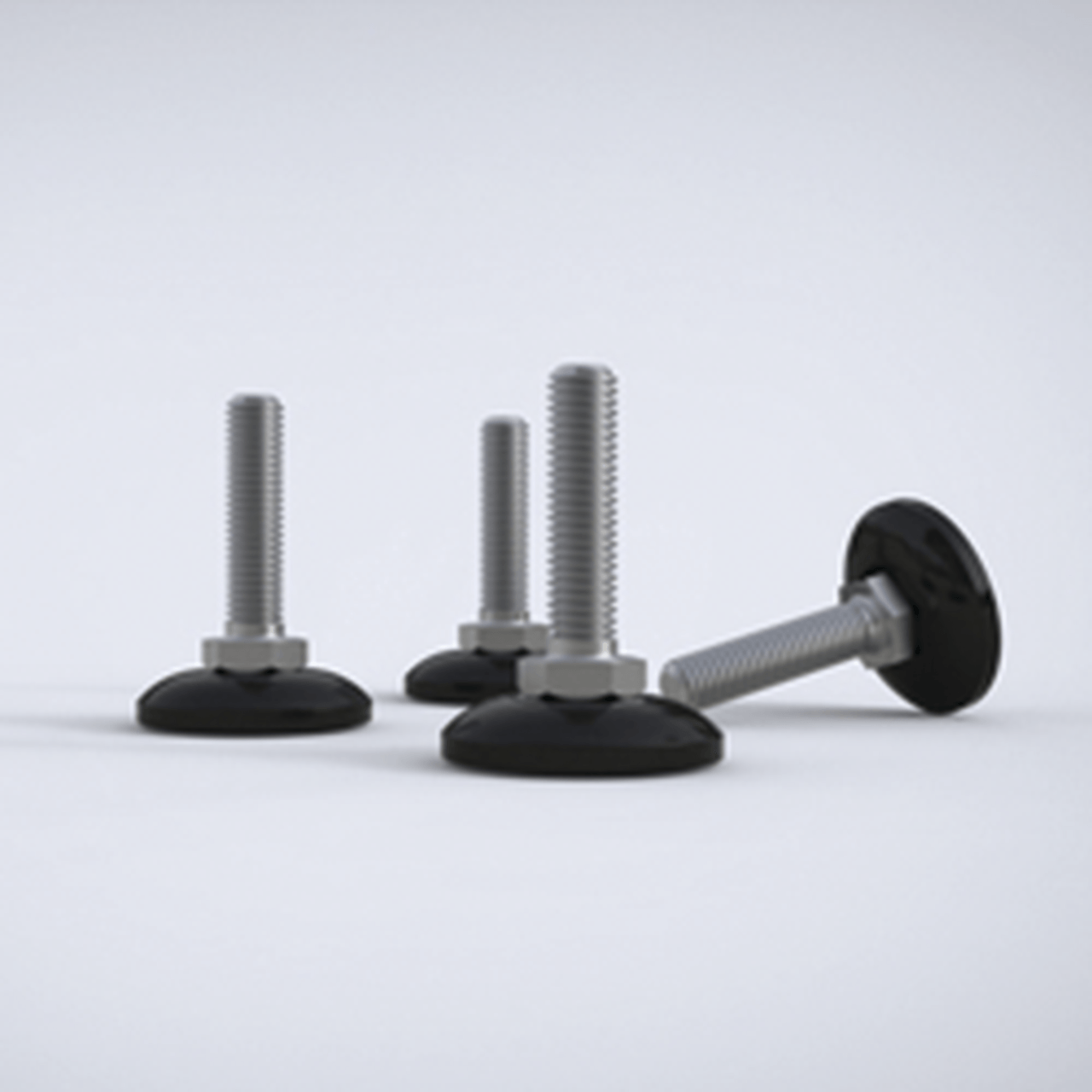

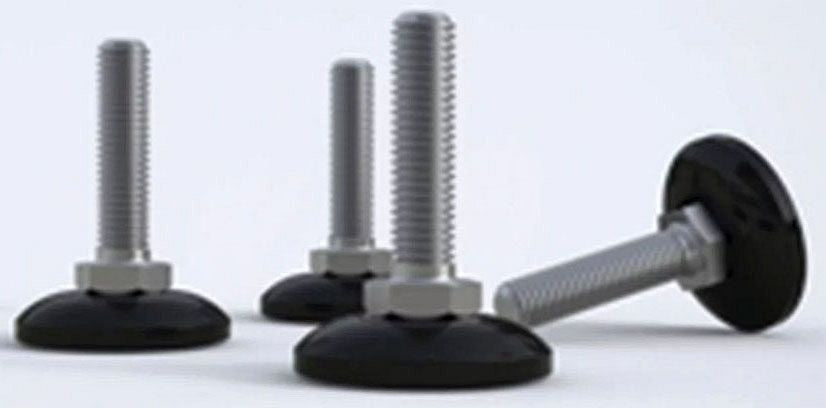

Nvent LF430 is a levelling foot (LF series) with an M12 thread designed for IEC and floor-standing enclosures. It provides a 30 mm adjustment stroke and a maximum load capacity of 3000 N per foot. The component features a mill finish and is constructed from 14 ga stainless steel, mounting directly to the enclosure frame to stabilize equipment on uneven floors.

• Adjustable height with 30 mm stroke for levelling enclosures
• Maximum load 3000 N per foot; mounts directly to enclosure frame
• M12 threaded levelling foot with 14 ga stainless steel construction and mill finish

Product Highlights

Levelling foot for IEC and floor-standing enclosures; 30 mm adjustment; 3000 N load; M12 thread; supplied as pack options

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: LF430

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: LF430
• Series: LF Series
• Product Type: Levelling foot
• Thread Size: M12
• Load Rating: 3000 N per foot
• Adjustment Stroke: 30 mm
• Mounting: Mounted directly to enclosure frame
• Suitable For Use With: IEC enclosure; floor-standing enclosures
• Material: 14 ga stainless steel
• Finish: Mill
• Dimensions: 2.63 in H x 1.89 in W x 1.89 in D
• Height: 2.63 in
• Width: 1.89 in
• Depth: 1.89 in
• Metric Dimensions (approx): 67 x 48 x 48 mm
• Pack Quantity: 4 (pack option reported)
• Pack Contents: 4 pieces with mounting accessories
• Compliance: RoHS compliant; RoHS phthalates compliant
