Nvent Hoffman WS161608SS Watershed Wallmount Sloped Top 1/4-Turn Latch Type 4X, 16x16x8, Brushed, SS 304

Product Description

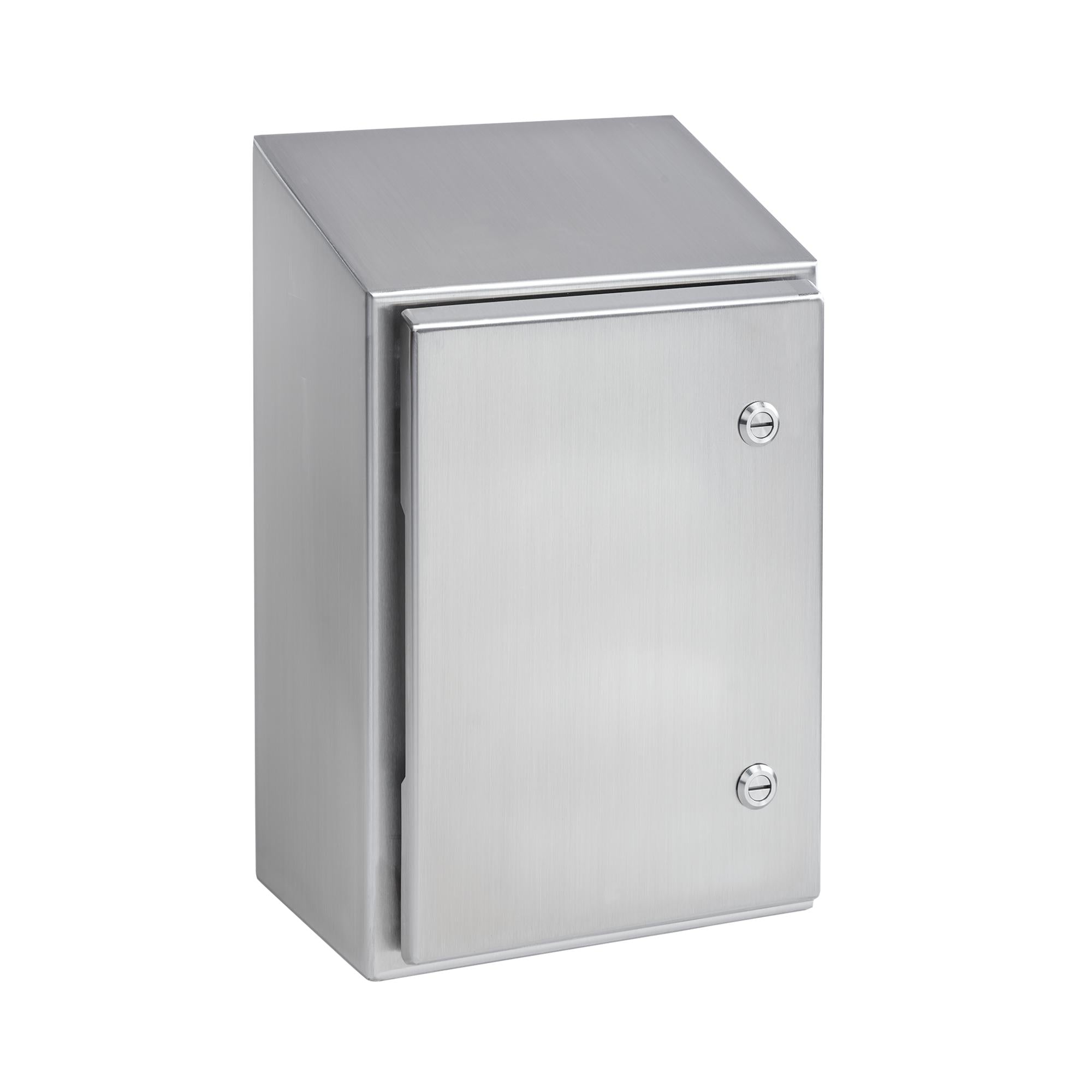

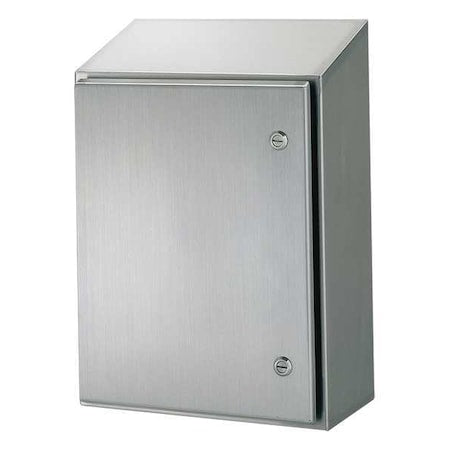

The NVENT HOFFMAN WS161608SS WaterShed wallmount enclosure is specifically designed for sanitary washdown production environments, especially in food and beverage manufacturing. These enclosures feature a sloped top, sloped door edges, and bullet-style hinges to facilitate washdown runoff. The enclosure measures 16x16x8 inches and is constructed of stainless steel 304 with a brushed finish.

• Constructed from 14 ga type 304 stainless steel
• Features continuously welded and ground smooth seams
• Offers a 20-degree sloped top to facilitate runoff

Product Highlights

This WaterShed enclosure is ideal for use in corrosive and hygienic environments, providing a watertight and corrosion-resistant solution for housing controls and drives.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: WS161608SS
• Country of Origin: United States

Technical Specifications

• Size: 16.00x16.00x8.00 in
• Depth: 8 in
• Width: 16 in
• Finish: Brushed #4
• Height: 16 in
• Material: Stainless Steel 304
• IP Rating: IP66
• NEMA Rating: 4X Watertight, corrosion-resistant
• Type Number: Type 3R
• Latch Quantity: 2
• Product Family: WaterShed
• Thickness: 2 mm
• Thickness (Imperial): 14 ga
• Applications: Controls and Drives; Corrosive Environments; Hygienic Environments
• Mounting Type: Wall
• Enclosure: NEMA 4/4X/12, IP66
• Gasket: Polyurethane
• Series: WS1
• Includes: Grounding Hardware, Sealing Washer
• Mounting: Wall
• Knockouts: No
• Standards: CSA Certified, cUL, IEC, UL Listed
• Metal Gauge: 14 ga
• Closure Method: 1/4 Turn Latch
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 12, 4, 4X
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 16 in
• Enclosure Cover Features: 1/4 Turn Stainless Steel Latch with Flush Slotted Insert
• Knockouts / No Knockouts: No Knockouts
• Item - Electrical Enclosure: Enclosure
• Cover Type: Bullet Hinged/Lift-Off
• Lock: Quarter Turn Latch
• Length: 16 in
• ROHS Compliant: True
• ECCN: EAR99
• Hinge Type: Bullet-Style
• Latch: Quarter-Turn
• Approximate Depth: 8 in
• Approximate Height: 16 in
• Approximate Width: 16 in
• Brand: nVent HOFFMAN
• Configuration: Without Knock-Outs
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Manufacturer Part Number: WS161608SS
• Type: Junction Box
• UPC Code: 00783510131074
• Sub Brand: Watershed
