Nvent Hoffman CSD16166SS Concept Wallmount 16 x 16 x 6

Product Description

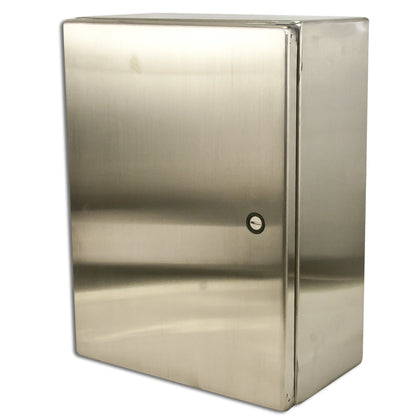

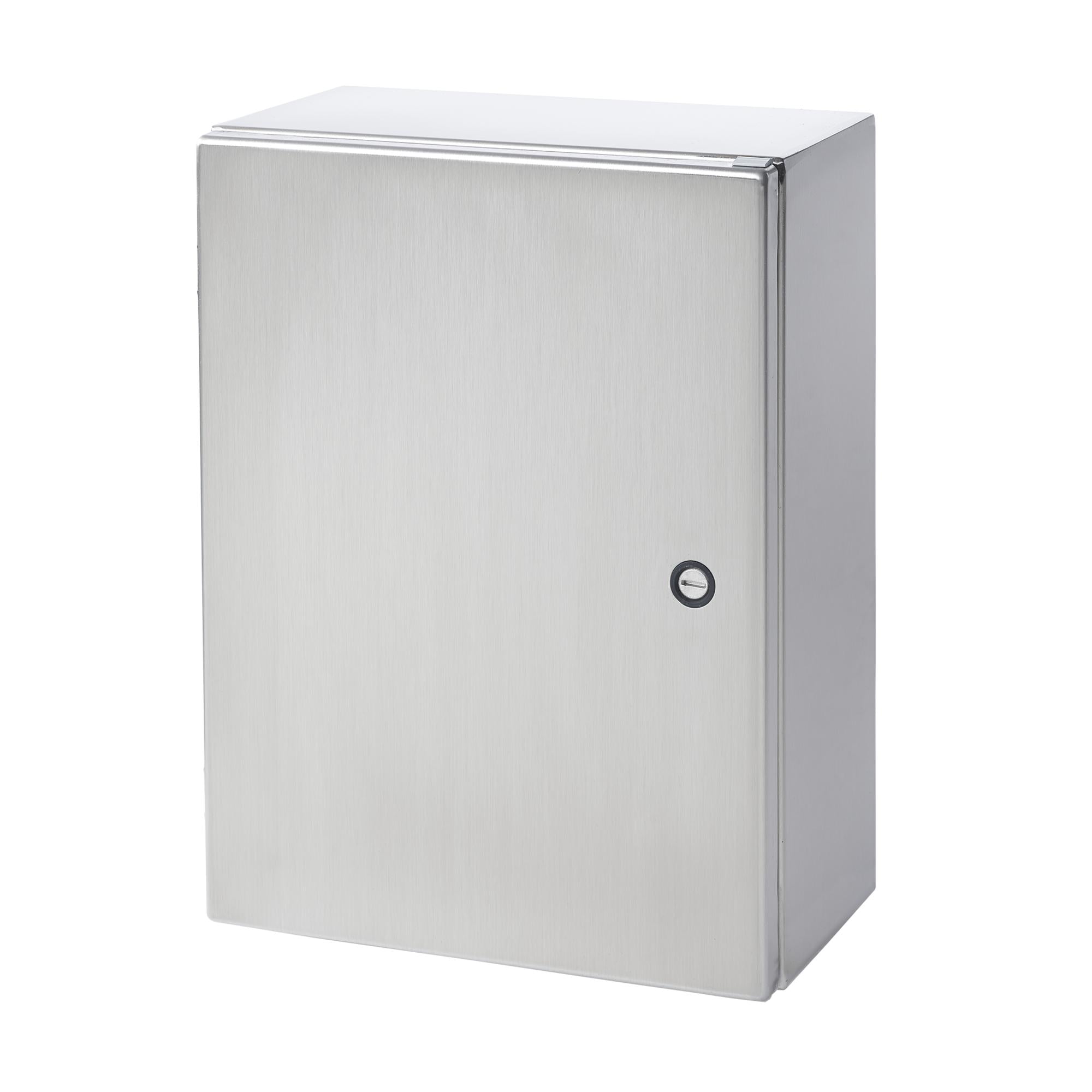

The NVENT HOFFMAN CSD16166SS Concept wallmount enclosure is designed for indoor or outdoor applications requiring corrosion protection from chemicals and water. This single-door enclosure features streamlined styling with a brushed finish and flush quarter-turn latches for secure closure. It is constructed of 304 stainless steel.

• Constructed from 304 stainless steel
• Features a hinged cover with quarter-turn latch
• Designed for wall mounting

Product Highlights

This NVENT HOFFMAN wallmount enclosure provides corrosion protection for sensitive components in harsh environments. Suitable for indoor or outdoor use.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: CSD16166SS
• Country of Origin: United States

Technical Specifications

• MPN: CSD16166SS
• Size: 16.00x16.00x6.00 in
• Depth: 6 in
• Width: 16 in
• Height: 16 in
• Finish: Brushed #4
• Material: Stainless Steel 304
• IP Rating: IP66
• NEMA Rating: 4X Watertight, corrosion-resistant
• Type Number: Type 3R
• Latch Quantity: 1
• Product Family: Concept
• Conductive Panel: CP1616G
• Country of Origin: US
• Mounting (Metric): 368 x 368 mm
• Protection Rating: NEMA Type 12
• Mounting (Imperial): 14.50 x 14.50 in
• Panel Size (Metric): 361 x 361 mm
• Body Thickness (Metric): 1.59 mm
• Door Thickness (Metric): 1.59 mm
• Body Thickness (Imperial): 16 ga
• Door Thickness (Imperial): 16 ga
• Application: Indoor/Outdoor Applications
• Type: Single Lock, Single Door
• Brand: nVent Hoffman
• Mounting Type: Wall
• Number of Latches: 1
• Sub Brand: Concept
• Body Gauge: 16
• Cover Type: Hinged
• Door Gauge: 16
• Applications: For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water
• Enclosure: 3R
• Length: 21 Inch
• Series: CWS
• Gasket: Polyurethane
• Includes: Grounding Hardware, Sealing Washer
• Material of Enclosure: 304 Stainless Steel
• Closure Method: 1/4 Turn Latch
• Interior Panel: 32FK12
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 12, 3R, 4, 4X
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 16 in
• Enclosure Cover Features: 1/4 Turn Latch with Screw Driver Slot
• Knockouts / No Knockouts: No Knockouts
• Item - Electrical Enclosure: Enclosure
• Width (In.): 16
• Latch Type: Quarter-Turn
• Mounting: 14.50 x 14.50in
• Lock: Quarter Turn Latch
• Panel Size: 14.2 x 14.2 in
• Manufacturer: nVent
• Latch: Quarter-Turn
• Style: Quarter-turn
• Features: 4X Watertight, corrosion-resistant
• ROHS Compliant: True
