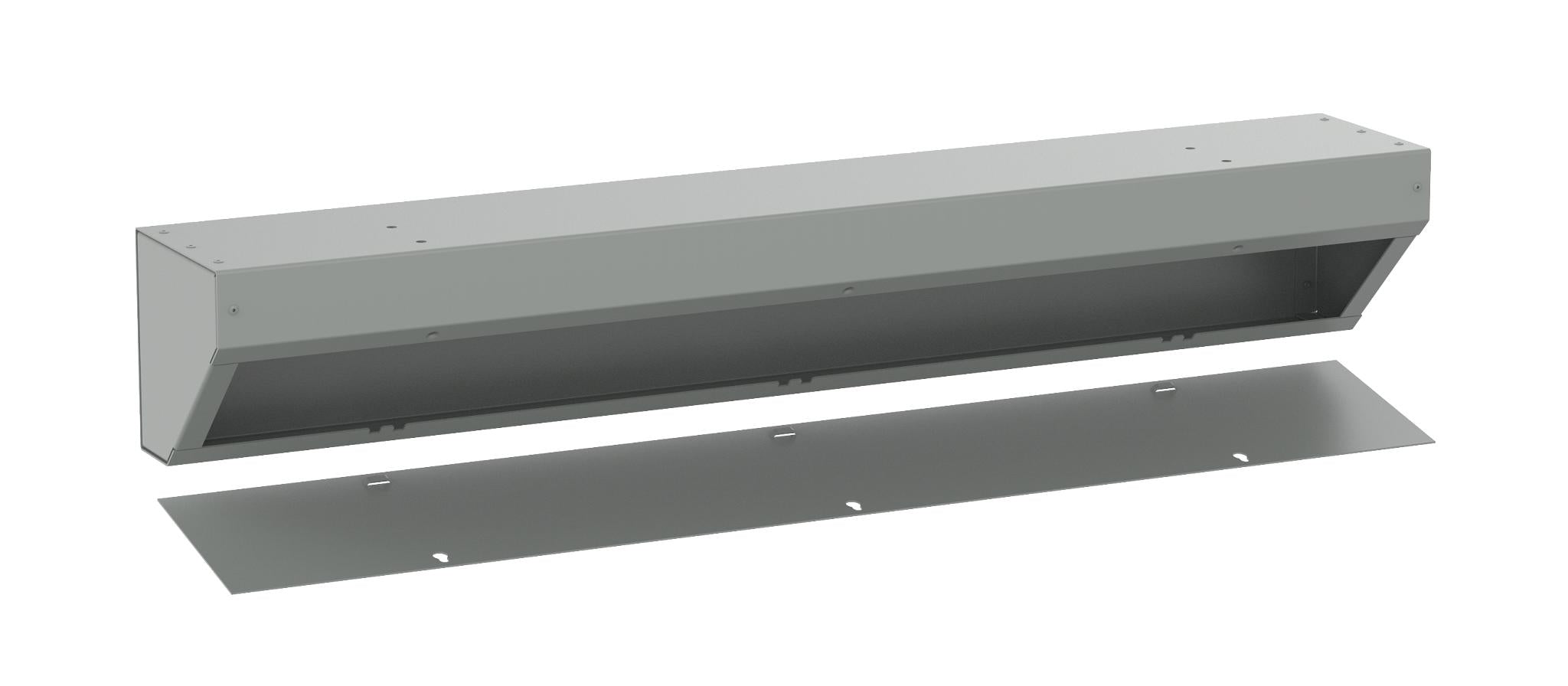

Nvent Hoffman AT8860 Angled Trough, NEMA Type 1, 8x 8x 60

Product Description

The NVENT HOFFMAN AT8860 angled trough, NEMA Type 1, cuts total installation time by 80%. It eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution, making it a time and cost saving solution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner. Constructed of steel with a powder-coated finish.

• Flexible install allows conduit runs through six sides of enclosure, including the front
• Cleaner appearance requiring less real estate on the wall
• Uniquely designed cover is removable and easy to assemble with half the number of screws

Product Highlights

The NVENT HOFFMAN angled trough provides a time and cost-saving solution for wire distribution with its unique design and flexible installation options.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT8860
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent Hoffman
• Depth: 60 Inch
• Width: 8 in
• Finish: Powder Coated
• Height: 8 Inch
• Material: Steel
• Thickness: 1.9 mm
• Used With: 2 in Conduit
• Cover Type: 5-Screw
• Applications: For Wire Distribution, Making it a Time and Cost Saving Solution for Contractors
• Enclosure Type: IP30
• Enclosure Rating: IP30
• Number of Screws: 5
• Catalog Number: AT8860
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• Application: Power Distribution
• UPC: 783510355982
• GTIN: 00783510355982
• Item Type: Trough
• NEMA Rating: NEMA 1
• Series: F40AT
• Maximum Conduit Size: 2 Inch
• Includes: (5) Cover Screw
• Applicable Standard: IEC 60529
• Gauge: 14 ga
• Article Number: 35598
• Max Conduit Size: 2in
• Cover Screw Quantity: 5
• Bulletin Number: F40AT
• Approximate Depth: 8 in
• Approximate Height: 8 in
• Approximate Width: 60 in
• Configuration: With Knock-Outs
• Manufacturer Part Number: AT8860
• UNSPSC: 39131714
