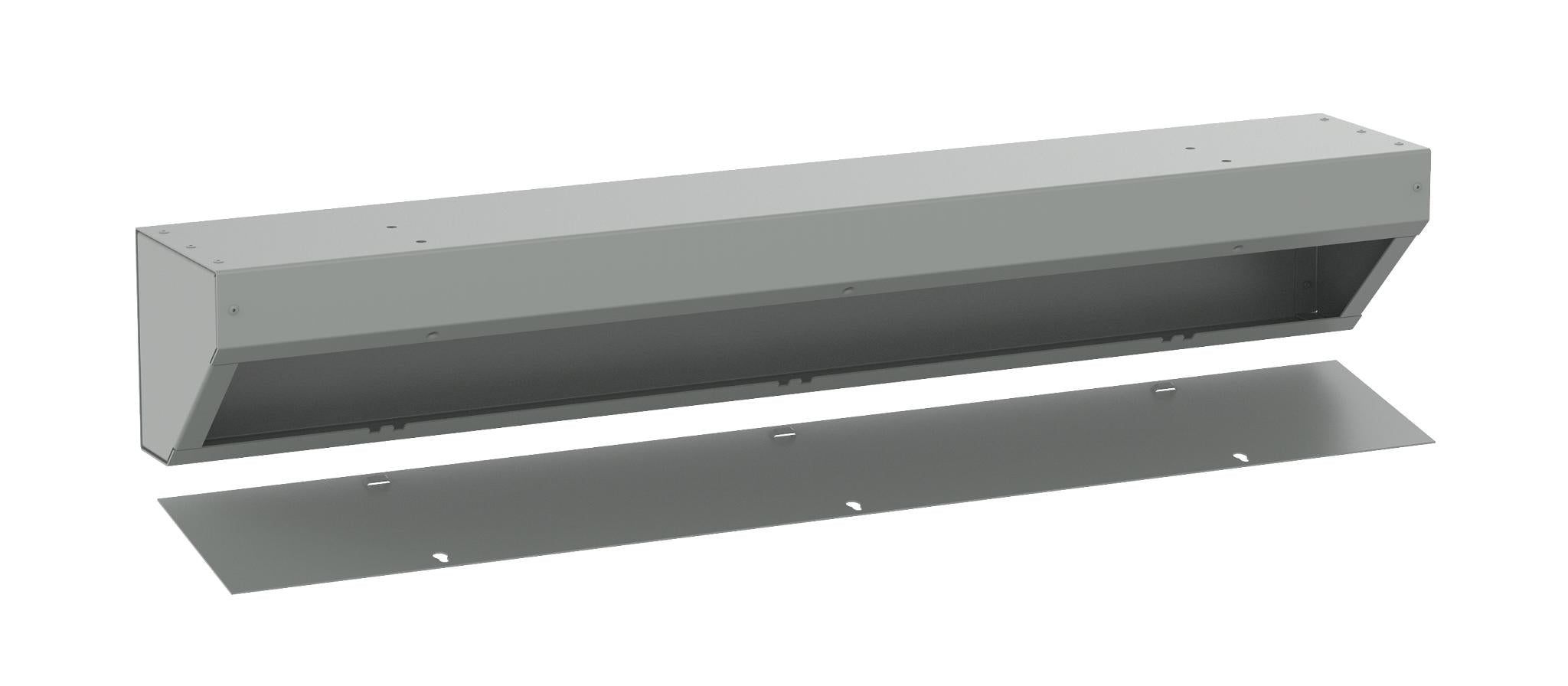

Nvent Hoffman AT6660 Angled Trough, NEMA Type 1, 6x 6x 60

Product Description

The NVENT HOFFMAN AT6660 Angled Trough, NEMA Type 1, 6x6x60, cuts total installation time by 80%. It eliminates costly 90-degree conduit bends and offers flexibility for wire distribution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner, offering a time and cost-saving solution.

• Flexible install allows conduit runs through six sides of enclosure, including the front.
• Cleaner appearance requiring less real estate on the wall.
• Uniquely designed cover is removable and easy to assemble with half the number of screws.

Product Highlights

The NVENT HOFFMAN AT6660 angled trough is easy to mount and shipped completely assembled with no end caps to install.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT6660
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent Hoffman
• Depth: 60 Inch
• Width: 6 in
• Finish: Powder Coated
• Height: 6 Inch
• Length: 60 Inch
• Material: Steel
• Thickness: 16 ga
• Used With: 1-1/4 in Conduit
• Cover Type: 5-Screw
• Number of Screws: 5
• Catalog Number: AT6660
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• Application: Power Distribution
• Item Type: Trough
• NEMA Rating: NEMA 1
• Series: F40AT
• Enclosure: NEMA 1, IP30
• Approval: UL 870, CUL, CSA C22.2
• Maximum Conduit Size: 1.25 Inch
• Applicable Standard: IEC 60529
• Approximate Depth: 6 in
• Approximate Height: 6 in
• Approximate Width: 60 in
• Configuration: With Knock-Outs
• Manufacturer Part Number: AT6660
• Protection Rating: NEMA Type 1; IP30
• Article Number: 35593
• Color Code: ANSI 61
• Max Conduit Size: 1.25 in
• Cover Screw Quantity: 5
• Bulletin Number: F40AT
• ECCN: EAR99
• UNSPSC: 39131714
