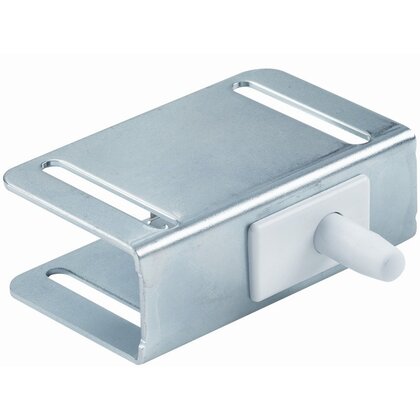

Nvent Hoffman ALFSWD Remote Door Switch 115/230v 50/60Hz

Product Description

The NVENT HOFFMAN ALFSWD remote door switch can activate a light or other electrical component when the enclosure door is opened. It is designed for use with PaneLite LED or Fluorescent lights. The switch mounts on the enclosure frame and includes mounting hardware. The mounting plate is 14 gauge.

• Mounts on enclosure frame and includes mounting hardware
• Mounting plate is 14 gauge
• Optional Door Switch

Product Highlights

The NVENT HOFFMAN ALFSWD remote door switch activates a light when the enclosure door is opened. It is made of galvanized steel and is suitable for use with any enclosure.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: ALFSWD
• Country of Origin: United States

Technical Specifications

• Finish: Plated
• Material: Mild Steel
• Accessory Type: Light Door Switch
• Depth (Metric): 22 mm
• Width (Metric): 17 mm
• Height (Metric): 32 mm
• Depth (Imperial): 0.87 in
• Width (Imperial): 0.67 in
• Height (Imperial): 1.26 in
• Thickness (Metric): 1.9 mm
• Thickness (Imperial): 14 ga
• Harmonized Code: 8536509040
• Type: Non-Locking
• Brand: nVent Hoffman
• Voltage: 115/230 Volt
• Sub Brand: Hoffman
• Used With: PaneLite LED or Fluorescent Light
• Applications: For Activate Enclosure Light When Door is Opened
• Item: Light Door Switch
• Gauge: 14
• Application: Power Distribution; Controls and Drives
• For Use With: Any Enclosure
• Sub-Category: Lighting Accessories
• Depth (D) (inch): 0.87
• Width (W) (inch): 0.67
• Height (H) (inch): 1.26
• Thickness (T) (gauge): 14
• Depth (D) (millimetre): 22
• Width (W) (millimetre): 17
• Height (H) (millimetre): 32
• Thickness (T) (millimetre): 1.9
• Catalog Number: ALFSWD
• Manufacturer: nVent
• Made in USA: Yes
• UPC: 783510712600
• GTIN: 00783510712600
• Item Type: Electrical Accessories
• Series: A80LT
• Voltage Rating: 230 V
• ROHS Compliant: True
• Article Number: 71260
• Manufacturer Part Number: ALFSWD
• UNSPSC Code: 39120000
• Mounting Type: Door
• Special Features: 14 gauge steel mounting plate
• UPC Code: 78351071260
• Alternate Mfr Part Number: ALFSWD
• Actuator Type: Plunger
• Operation: On-(Off)
• Contact Voltage: 230 VAC
• Current Rating: 0.5 A
• Contact Form: 1 NC
• ECCN: EAR99
• UNSPSC: 39121321
• Mounting: Door
• Special Program: Hoffman On Demand
