Nvent Hoffman A36H3612SSLP Wallmount Hinged Enclosure 36x36x12

Product Description

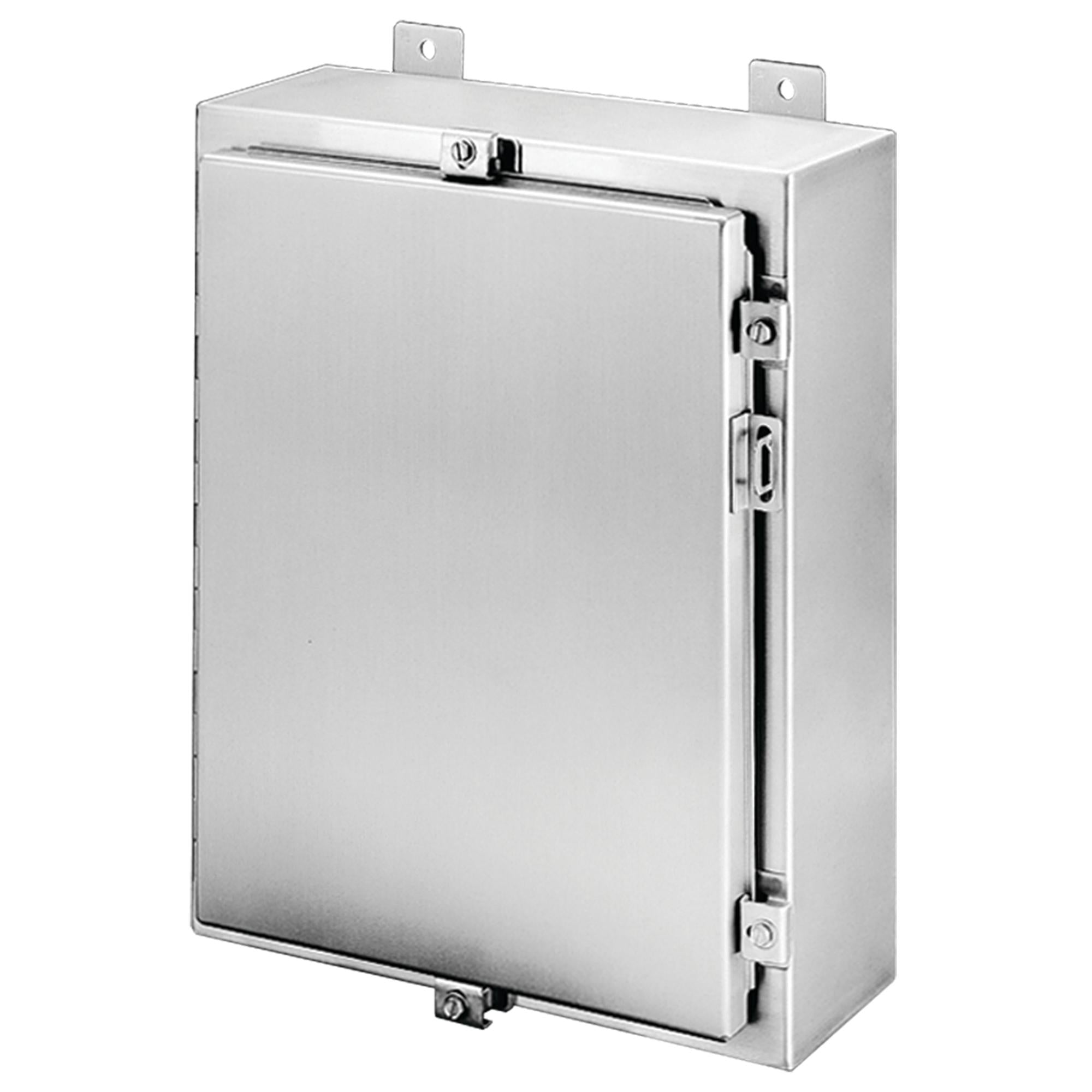

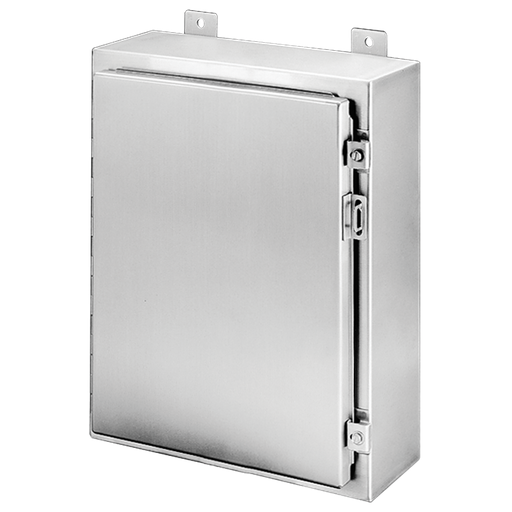

The NVENT HOFFMAN A36H3612SSLP wallmount hinged enclosure is designed for corrosive environments and controls and drives. Measuring 36.00x36.00x12.00 inches, it features a brushed #4 finish and is constructed from stainless steel 304. This enclosure provides a watertight seal against contaminants, suitable for both indoor and outdoor use.

• Constructed from Stainless Steel 304
• Features a seamless foam-in-place gasket
• NEMA 4X rated for watertight, corrosion-resistant protection

Product Highlights

The A36H3612SSLP enclosure ensures a secure seal in corrosive environments, featuring a continuous hinge with clamps and robust stainless steel construction.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A36H3612SSLP
• Country of Origin: United States

Technical Specifications

• Application: Corrosive Environments; Controls and Drives
• Size: 36.00x36.00x12.00 in
• Depth: 12 in
• Width: 36 in
• Finish: Brushed #4
• Height: 36 in
• Material: Stainless Steel 304
• IP Rating: IP66
• NEMA Rating: NEMA 4X/IP66
• Steel Panel: A36P36
• Type Number: Type 3R
• Clamp Quantity: 7
• Country of Origin: US
• Protection Rating: NEMA Type 12
• Thickness: 1.98 mm
• Panel Size: 33 x 33 in
• Stainless Steel Panel: A36P36SS6
• Conductive Steel Panel: A36P36G
• Stainless Steel Type: 304
• Thickness (Imperial): 14 ga
• Type: Single Door, Seven Lock, Watertight, Corrosion-Resistant, Gangable
• Brand: nVent Hoffman
• Mounting Type: Wall
• Cover Type: Continuous Hinge Clamp
• Mounting: Wall
• Enclosure NEMA: 3/3R/4/4X/12/13, IP66
• Service Type: Indoor/Outdoor
• Approval: UL 508A, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• Lock: Hasp and Staple/Padlock
• Series: A4S
• Length: 36 in
• Panel Size (Metric): 838 x 838 mm
• Enclosure Type: Electrical / Industrial
• Enclosure Material: Steel
• External Height - Metric: 914mm
• External Width - Metric: 914mm
• External Depth - Metric: 305mm
• External Height - Imperial: 36"
• External Width - Imperial: 36"
• External Depth - Imperial: 12"
• Material Specification: 14 Gauge Body/Door
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 12, 13, 3, 3R, 3RX, 4, 4X
• Material of Enclosure: 304 Stainless Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 36 in
• Enclosure Cover Features: Hasp and Staple for Padlocking
• Knockouts / No Knockouts: No Knockouts
• Item - Electrical Enclosure: Enclosure
• Gauge: 14 ga
• Features: 4X Watertight, corrosion-resistant
• For Use With: For Use With Mfr. Model Number A36P36G, A36P36SS6, A36P36
• NEMA Enclosure Type: 3R, 4X, 12
• Item: Enclosure
• Gasket: Seamless Foam-In-Place
• Standards: CSA Certified, cUL, IEC, UL Listed
• Metal Gauge: 14 ga
• Width (In.): 36
• Product Type: Enclosure
• Basic Material: Metallic
• Closure Method: Padlockable Hasp
• Interior Panel: 32FT61
• Solid / Clear Cover: Solid
• Latch: Padlock
• Body Color: Gray
• Product Range: -
