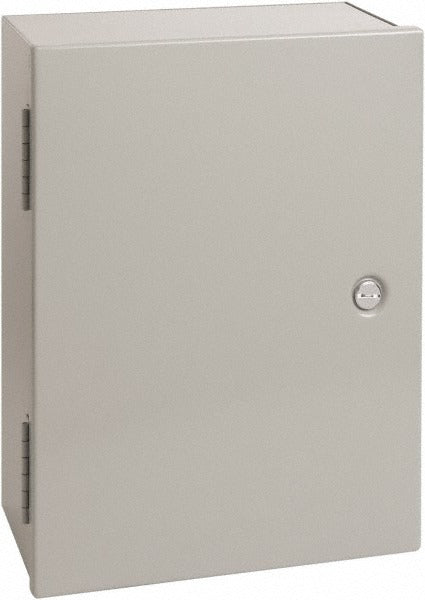

Nvent Hoffman A16N12BLP Junction Box Nema 1 Steel

Product Description

The NVENT HOFFMAN A16N12BLP is a NEMA 1 steel junction box enclosure designed for indoor electrical applications. Measuring 16 inches high, 12 inches wide, and 8.62 inches deep, it provides a secure, organized housing for wiring terminations, terminal blocks, and related electrical components. Constructed from 14-gauge steel with a gray polyester powder coat finish, the enclosure offers a clean, durable surface suited to light industrial and commercial environments. The hinged flat cover with flush latches allows quick access without removing fasteners. Electricians and electrical contractors are the primary installers for this type of enclosure.

This enclosure is suited for indoor use in residential, commercial, and light industrial settings where NEMA 1 protection is required. Typical applications include junction and pull box installations in mechanical rooms, electrical rooms, and above-ceiling spaces. The included butt hinges, collar studs, flush latches, and mounting holes make this unit ready for panel mounting or wall mounting out of the box without sourcing additional hardware.

Key Features

• 14-gauge steel construction with gray polyester powder coat finish
• Hinged flat cover with flush latches for tool-free panel access
• Includes butt hinges, collar studs, flush latches, and mounting holes
• NEMA 1 rated for indoor use in dry locations
• Meets UL, cUL, CSA, IEC 60529, and ANSI 61 standards
• Single-unit packaging with no minimum order restriction

Compatibility

Designed as an OEM-style indoor junction box enclosure for use in dry-location electrical installations requiring NEMA 1 protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize all circuits before opening or working inside the enclosure. Secure the enclosure firmly to the mounting surface using appropriately rated fasteners through the provided mounting holes. Do not use this enclosure in wet, outdoor, or corrosive environments, as it is rated for dry indoor locations only.
