Nvent Hoffman A1614SC Junction Box Nema 12 13 Steel

Product Description

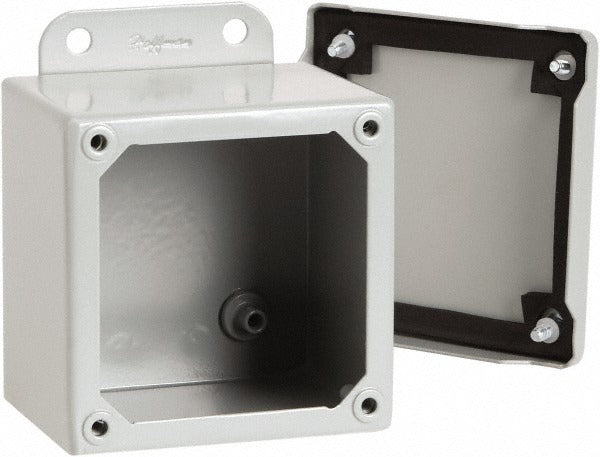

The NVENT HOFFMAN A1614SC is a steel electrical junction box enclosure rated for NEMA 12 and NEMA 13 environments. Built from 14-gauge steel with a gray polyester powder coat finish, it measures 14 inches wide by 16 inches high by 6 inches deep. The screw flat cover design provides secure closure with an oil-resistant gasket that seals out dust, dirt, and non-corrosive liquids. Licensed electricians and industrial maintenance technicians install this enclosure to house and protect electrical components in demanding indoor service conditions.

This enclosure is suited for industrial and commercial applications where protection against dust, oil, and coolant splash is required. Typical installations include machine control panels, motor starters, terminal block assemblies, and junction point wiring in manufacturing facilities, pump stations, and process environments. The 6-inch depth provides usable interior space for DIN rail or back-panel component mounting. External wall-mounting brackets are included for direct surface installation.

Key Features

• 14-gauge steel construction with gray polyester powder coat finish for corrosion resistance in industrial environments
• NEMA 12 and NEMA 13 rated — protects against dust, dirt, oil, and coolant splash
• Screw flat cover with oil-resistant gasket ensures a reliable, tool-secured seal
• Includes bonding provision, external wall-mounting brackets, oil-resistant gasket, and weld nuts
• Multiple certifications: UL Listed 50, UL Listed 508A, UL Listed 50E, cUL Listed, CSA, and IEC 60529 compliant
• ANSI 61 gray finish meets standard industrial color requirements

Compatibility

Designed as an OEM-style steel junction box enclosure for industrial and commercial electrical installations requiring NEMA 12 and NEMA 13 rated protection in indoor environments.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize all circuits before mounting or wiring inside the enclosure. Use the included external wall-mounting brackets and weld nuts for secure surface attachment to walls or structural supports. Verify that the oil-resistant gasket is properly seated after any cover removal to maintain the enclosure's NEMA rating.
