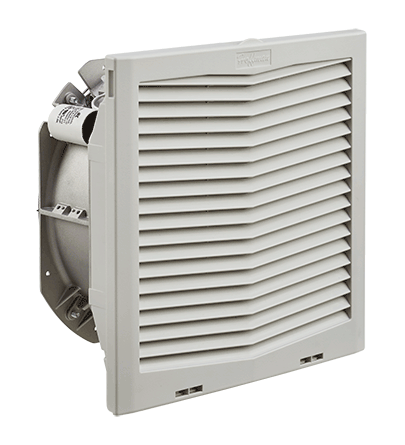

nVent HF1316424 HOFFMAN IP54 13 IN 484 FF 115V 7035

Product Description

The nVent HF1316424 Hoffman Filter Fan operates at 115 VAC with varying amperage ratings of 1.08 or 1.18 A. This filter fan delivers airflow of 484 cubic feet per minute (cfm) and is designed for side mounting in NEMA 12/IP54 enclosures.

• Click fit design for quick installation without tools
• Easy filter replacement with a hinged grille
• Reverse airflow option available for higher static pressure applications

Product Highlights

The Hoffman Filter Fan is reliable and efficient for various industrial applications, ensuring optimal cooling and air circulation.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: HF1316424

Technical Specifications

• Air Flow Rate: 484 cfm
• Amperage Rating: 1.08/1.18 A
• Application: Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
• Dimensions: 12.8 in H x 12.82 in W x 6.31 in D
• Enclosure: NEMA 12/IP54
• Grille Material: ABS
• Mounting Type: Side
• Power Rating: 112/148 W
• Sound Level: 67/70 dB
• Speed: 2550/2850 rpm
• Standards/Approvals: cUL Listed, UL File No. E482010, CE/EAC Certified, RoHS Compliant
• Voltage Rating: 115 VAC
