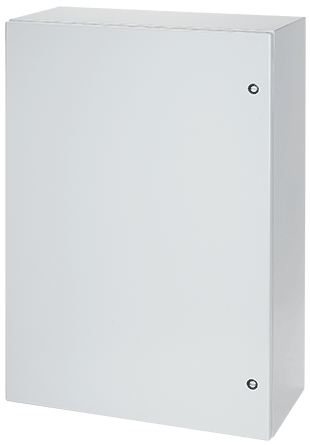

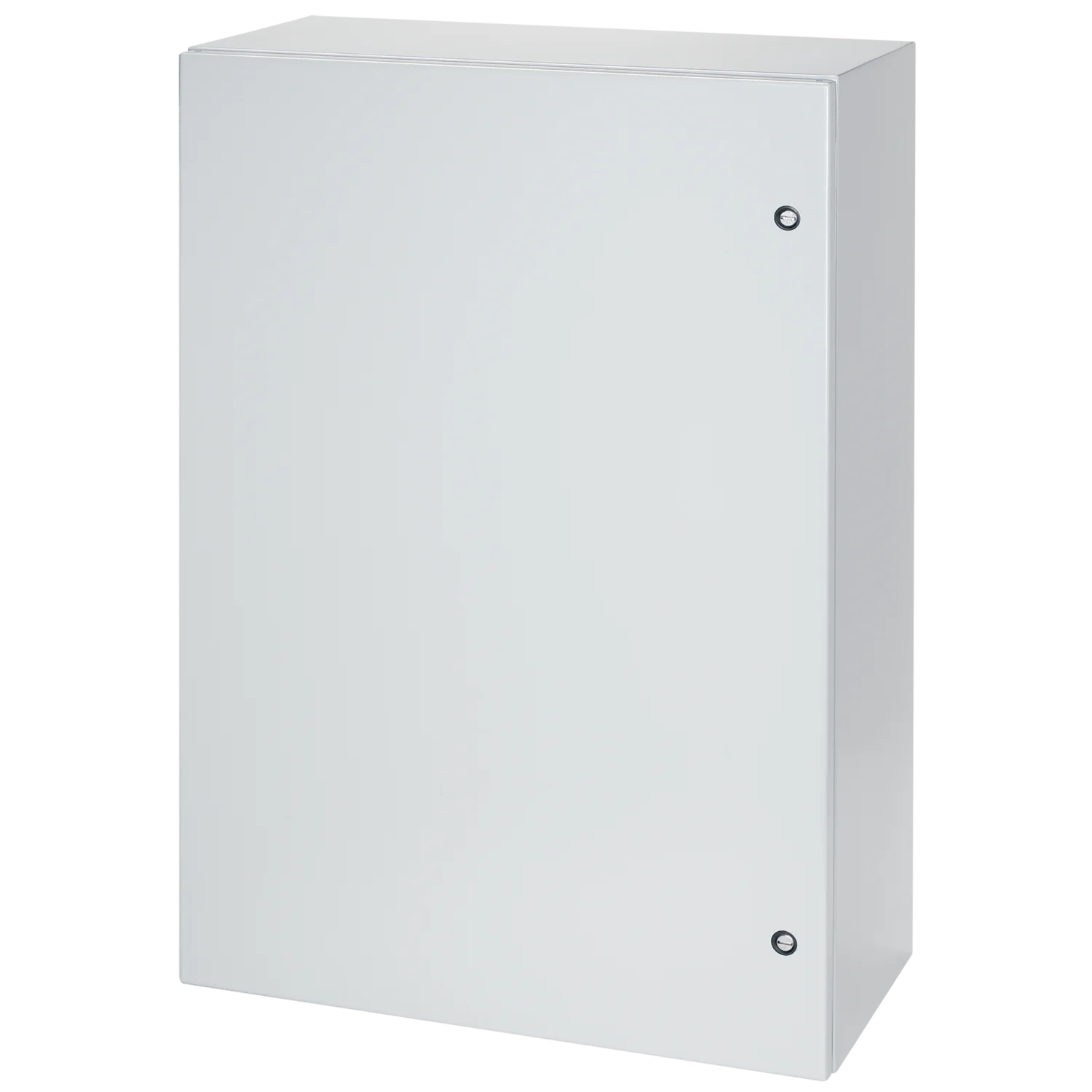

Nvent CSD20168 Concept single-door enclosure 20 x 16 x 8

Product Description

The Nvent CSD20168 is a Concept single-door steel wall-mount enclosure measuring 20 x 16 x 8 inches. It is constructed with welded seams, a foam-in-place gasket and a powder-coated ANSI 61 finish, and provides NEMA 4 and 12 protection with IP66 ingress classification. The enclosure includes a quarter-turn latch, removable door with hidden hinges, panel mounting provisions, grounding hardware and installation instructions.

• Steel construction with continuous welded seams, foam-in-place gasket and powder-coated ANSI 61 finish; external dimensions 20 x 16 x 8 in (508 x 406 x 203 mm)
• Rated NEMA 4 and 12 and IP66; meets UL 508A and applicable IEC/CSA standards
• Single-door design with quarter-turn slotted latch, removable door with hidden hinge pins, grounding stud and panel mounting studs; wall-mount provisions included

Product Highlights

Single-door wall-mount Concept enclosure, 20 x 16 x 8 in, NEMA 4/12 and IP66, quarter-turn latch, panel mounting and grounding provisions

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: CSD20168

Technical Specifications

• Brand: NVENT
• Manufacturer Part Number: CSD20168
• Product Name: Concept single-door enclosure
• Series: CW1
• Catalog Number / Article Number: 77410
• Enclosure Type: Wall-mount single-door enclosure
• Material: Mild steel
• Body Thickness: 16 ga
• Door Thickness: 16 ga
• Finish: Polyester powder coated (ANSI 61 gray)
• Dimensions (H x W x D): 20 x 16 x 8 in (508 x 406 x 203 mm)
• Panel size (W x H): 14.2 in x 18.2 in
• Panel cutout / Mounting (W x H): 18.50 x 14.50 in
• Weight: 25.2 lb
• Latch Type: Quarter-turn slotted latch
• Latch Quantity: 1
• Door Opening Angle: 210 degrees
• Hinges: Hidden hinges; removable hinge pins with captivation clip
• Grounding: Grounding stud on body; bonding provision on door
• Mounting Type: Wall mount; mounting holes for optional external brackets
• Includes: Panel mounting nuts; panel grounding hardware; sealing washers; installation instructions
• NEMA Rating: NEMA 4, 12
• IP Rating: IP66
• Standards / Approvals: UL 508A Listed; cUL per CSA C22.2 No. 94; IEC 60529; UL File No. E61997; CSA File No. 42186; RoHS Compliant; VDE Approved
• UPC: 783510774103
• Bulletin Number: CW1
• RoHS Compliant: Yes
