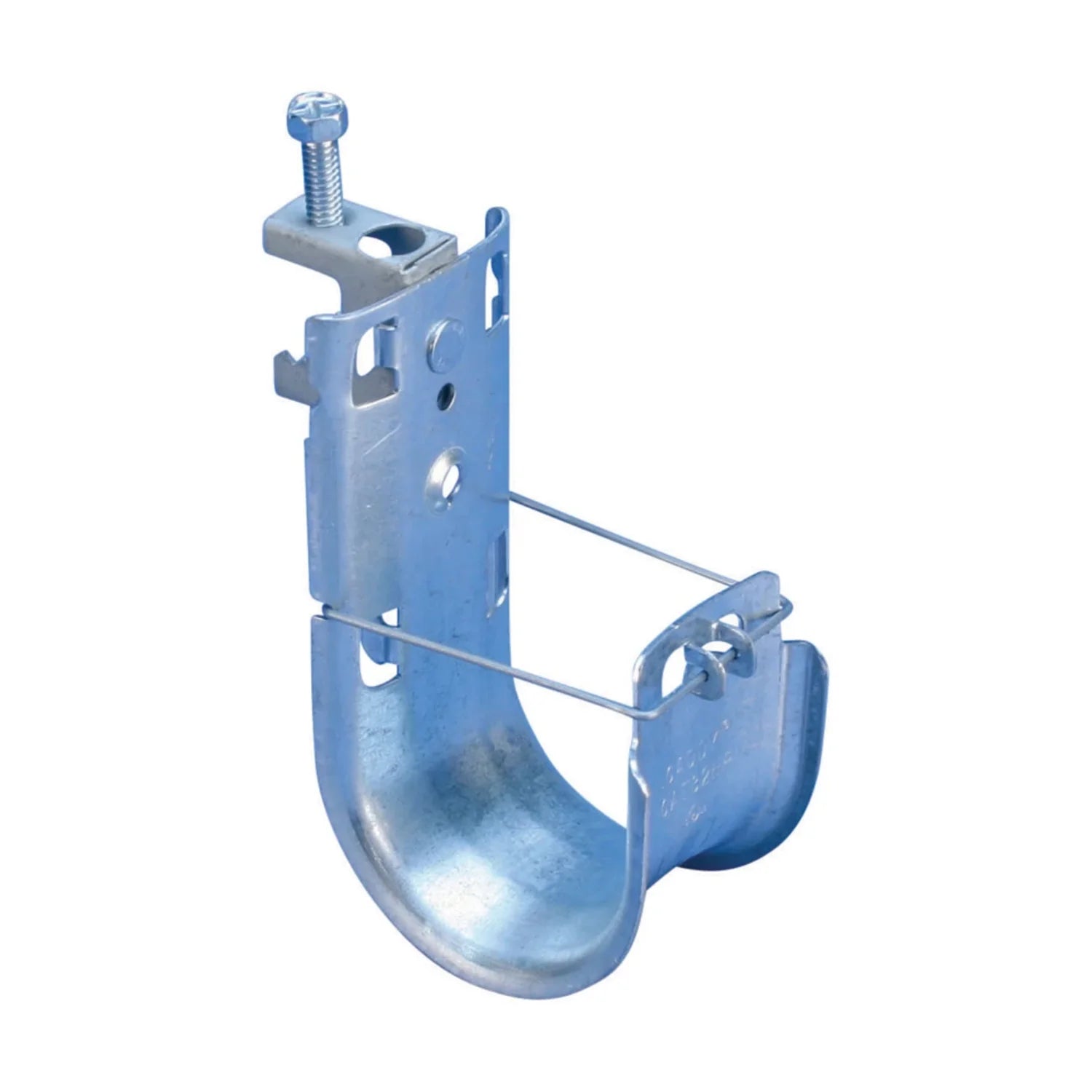

Nvent CAT32HPBC Cat HP J-Hook with BC Beam Clamp 2 in Dia

Product Description

The Nvent CAT32HPBC is a Cat HP J-hook assembled to a screw-on BC beam clamp for supporting high-performance data cable. The 2 in diameter J-hook is constructed of spring steel/steel with Caddy Armor pre-galvanized finish, provides 3.97 sq-in area, mounts to flanges up to 1/2 in thick and is rated for a 60 lb static load. It is designed for use with Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic cabling in datacom and low-voltage installations.

• 2 in diameter J-hook with BC beam clamp; mounts to 1/2 in thick flanges
• Construction: spring steel/steel with Caddy Armor pre-galvanized finish; 3.97 sq-in support area
• Rated 60 lb static load; supports Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic cabling; UL/cULus and international standards compliance

Product Highlights

High-performance J-hook assembly for beam flange installation with 2 in diameter, 60 lb static load rating, 3.97 sq-in capacity, and standards compliance for data cabling.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: CAT32HPBC

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: CAT32HPBC
• Series: CAT HP
• Product Type: Cat HP J-Hook with BC Beam Clamp
• Material: Spring Steel; Steel
• Finish: Caddy Armor / Pre-Galvanized
• Diameter: 2 in
• Support Area: 3.97 sq in
• Max Flange Thickness: 1/2 in
• Static Load Capacity: 60 lb
• Suitable For Use With: High performance cable support system; Cat 5e, Cat 6, Cat 6A, Cat 7, fiber optic
• Standards/Approvals: UL Listed; cULus Listed; EN 50174-2; ISO/IEC 14763-2; ANSI/TIA 568; ANSI/TIA 569; CSA Approved
• UPC: 782856716716
• EAN/GTIN: 8711893125580
