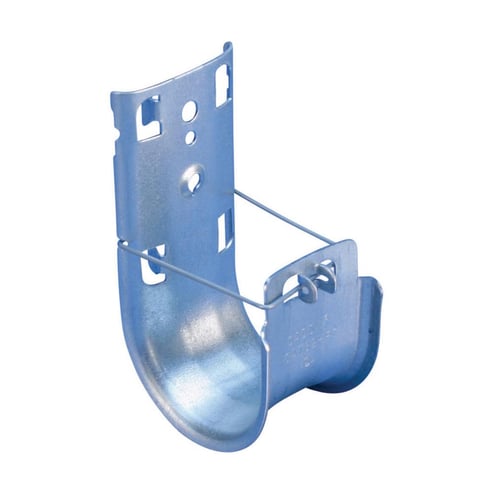

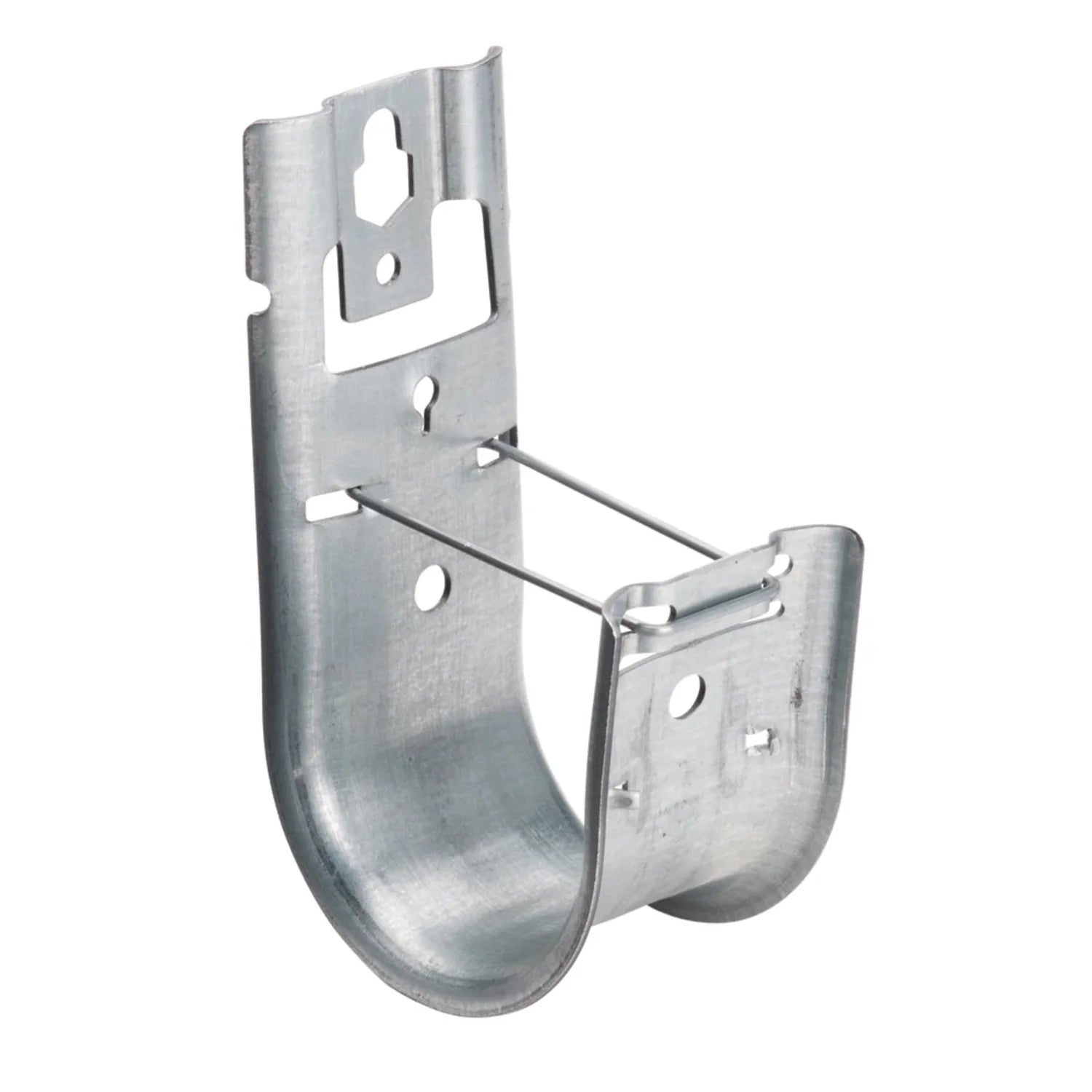

Nvent CAT16HP Cat HP J-Hook, Pre-Galvanized, 1 inches Dia

Product Description

The NVENT CAT16HP Cat HP J-Hook is the foundation of the nVent CADDY Cat HP System. The revamped design offers contractors three unique, UL-certified attachment methods for wall, ceiling, and threaded rod installations. This J-Hook provides optimal support and protection for high-performing low voltage cable.

• Innovative attachment design provides multiple structural and installation methods for wall, ceiling, and threaded rod mounting applications
• Improved design allows for optimized inventory, reducing job site scheduling risks associated with multiple SKUs
• Provides optimal support for high-performance data cable
• Complies with EN 50174-2

Product Highlights

The NVENT CADDY Cat HP J-Hook ensures efficiency and progress on the jobsite with common structural attachment methods. It is engineered to provide optimal support and protection for high-performing low voltage cable.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: CAT16HP
• Country of Origin: US - United States

Technical Specifications

• Material: Steel
• Finish: Pregalvanized
• Diameter ("): 1"
• Area: 1.07in
• Cable Capacity, Cat 5e: 20
• Cable Capacity, Cat 6: 15
• Cable Capacity, Cat 6A: 10
• Height 1 (H1): 4.29"
• Height 2 (H2): 3.55"
• Static Load (F): 60lb
• UPC: 782856617600
• EAN: 8711893048810
• Standard Packaging Quantity: 50
• Packing Quantity: 1
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131709
• Trade Size: 1IN
• Application: Datacom, Low Voltage and Electrical Applications
• Catalog Description (MFR): Cat HP J-hook, pre-galvanized, 1" dia
• Load Capacity: 60 lb Static
• Product Name: Cable Support J-Hook
• Special Features: CLIP,CABLE,CATHP,1 INCH
• Standard: BABA Compliant, UL 2043, cULus Listed, EN 50174-2, ISO/IEC 14763-2, ANSI/TIA 568/569, DIN 4102-12 E30/E60/E90, RoHS Compliant
• Type: nVent CADDY Cat HP J-Hook System
• Standards: Build America Buy America Compliant
